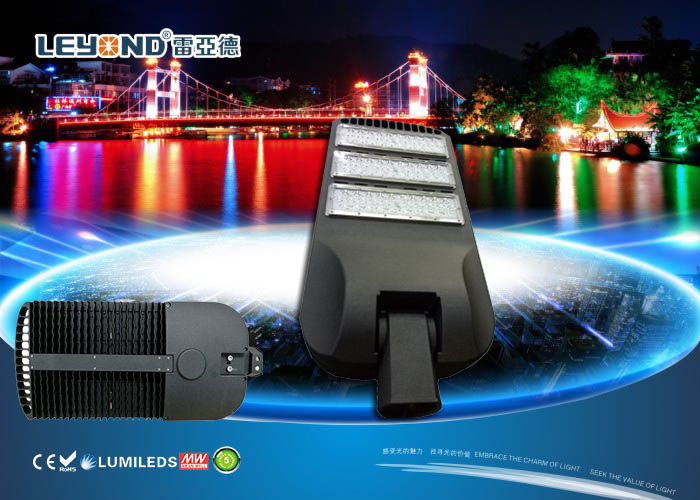

IP66 Waterproof Daylight Sensor Control LED Chip New LED Street
Light 50W,60W,100W
Specification:
| Item Number | LY-ST20100PW |
| LED Power | 100W |
| Input Voltage | Meanwell AC100-240V |
| LED Chip | 3030 LEDs |
| LED Quantity | 180pcs |
| Lumen | 16000lm |
| Power Factor | >0.95 |
| Efficiency | >90% |
| Beam Angle | 150*65° |
| Color Temperature | 2700-6500K (CCT) |
| Guard Level | IP66 |
| Lifespan | 50,000hrs |
| Housing Material | Aluminum Alloy |
| Product Dimension | 642x290x120mm |
| Net Weight | 8.8kg |
| Gross Weight | 9.6kg |
Application :
Suitable for the street lighting at highways, urban roads and
secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks,
schools, villas, gardens and other places.
Features :
1.Absolutely unique mold,make your lighting special and fantastic.
2. Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the
brightness and illumination uniformity.
3. Anti-glare and uniform light level to avoid any visual
discomfort.
4. high quality power supply, input voltage 100-277V. The power
efficiency is more than 90%,
power factor greater than 0.98.
5. Adopting 3030/5050 led light sources and LEYOND lens technology,
8% light
efficiency higher than the same type lights in the market, higher
light transmittance up to 98%.
6.Duct type thermal design, reduce the weight of the light and
ensure good heat dissipation, lower
luminous decay, and also extend life span of the leds. Adopting the
popular CHEM modular
design, effectively reduce the following maintenance cost.
7. Low energy consumption,matching high efficiency constant-current
driver, 60% energy saving;
with good resistance to over-current, over-voltage, lightning, high
temperature, which fully
ensure long life span and high stability of the products.
8.Durable lights with long life span up to 50000 hours; No need
frequent replacements of lights
and regular maintenance.
9. Green environmental protection, no UV light and infrared
radiation, no mercury pollution.
10. Nice appearance and non-fouling properties, Protection class
IP66.
11.Work without strobe, fast transient response；A wide range of
working voltage.
Intensity Distribution Diagram :
Aging Testing :
As we know aging test is a critical insurance of the quality for
led lights, so recently we just
introduced the auto aging test equipment which can make the test
more accurate and effective .
More info as belowing :
Voltage testing | High,normal,low voltage testing |
Temperature testing | High temperature |
Lighting testing | ON and OFF testing |
Moving testing | Base plate will recycle times and times |
City power testing | Simulate the city power |

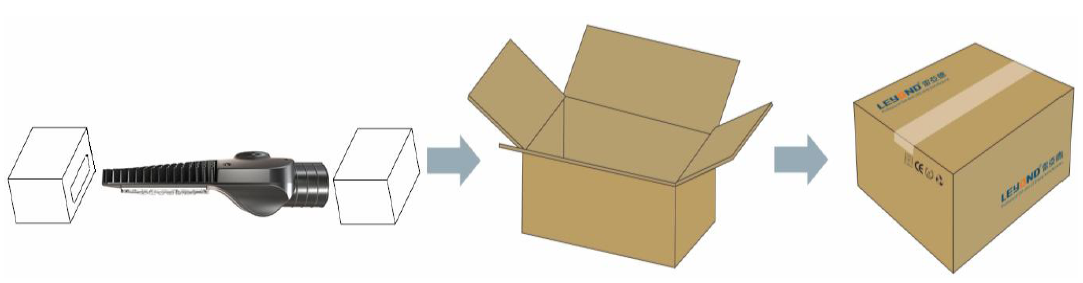

Packing :
1.Inner box Size: 685mm×350mm×180mm
2.Outer box Size: 700mm×360mm×380mm (2 PCS LED Street Light)
Our services :
1.Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your
much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when choosing LED light source. The higher, the
better. Besides, brand of LED chip, LED base and other materials
will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyong always treat the clients benefit as the
most important thing. So, we use the top brand material to produce
high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood
light, LED high bay, LED downlight, LED ceilling light, LED spot
light, LED tube, LED module, LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below
5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
6. How long will the warranty period last?
A: We usually offer 3 years free warranty for Bridgelux products.
More detailed warranty policy, please contact our sales
representatives.
