200w module LED Street Light For Highways / LED Road Lamp With 3030
Chip
Model | LY-ST22200XX |
Product Name | 200w LED Street Light |
Input Voltage | AC100-240V |
Power Factor | >0.95 |
Power Efficiency | >88% |
Current | 0.96A/115VAC |
Luminous Efficiency | 120lm/w |
Luminous Flux | 24000lm |
CRI | >60 |
Beam Angle | 150*70° |
CCT | 2700K-5700K |
Led Chip | Bridgelux chip OR 3030 SMD Led |
Led Driver | Meanwell CLG-150-36A |
Warranty | 5 years |
IP Rating | IP 65 |

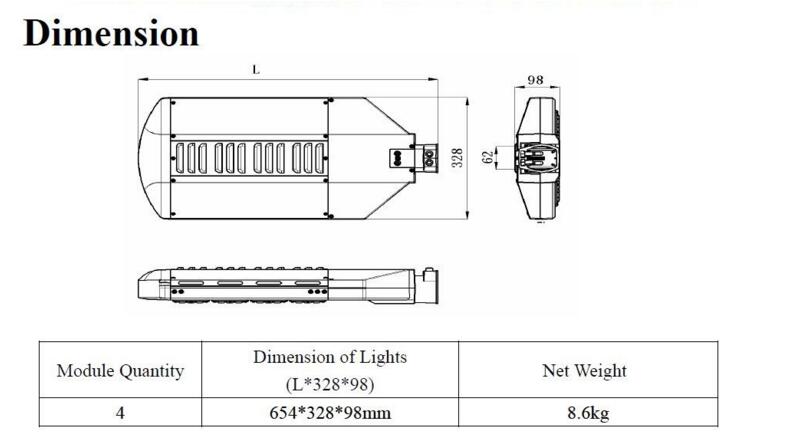

Dimension(mm) | 654*328*98 |
NW | 8.3kg |
Pole diameter | 60mm |
Housing Material | Aluminum Aolly+PC |
Features:
1) Excellent heat sink led module design, easier maintenance,
waterproof IP66
2) Lighter weight of street light housing, help to save shipping
cost
3) Asymmetric beam angle 150°x70° for road lighting
4) Optic PC lens, light transmittance>97%
5) Lamp arm 90° rotation when vertical installation, suit to OD60mm
pole.
Advantages
- Self packaging with Bridgelux chip high power LED, up to 150lm/w
- Self PC lens asymmetric lighting for road beam 150°x70°
- Self single led module, excellent heat dissipation, IP66
- Self street light housing, lighter weight help to save shipping
cost
- Lamp arm 90° rotating when vertical installation
- Top Meanwell HLG driver, AC90-305V,PF>0.95
- Luminaire 110-120lm/w, high brightness, CCT 2800-5500K, IES files
help to make DIALUX
- CE,RoHS certificated, 5 years warranty, replacement allowed if
quality problem
- Competitive prices, mass production available
Application:
• Suitable for the street lightingat highways, urban roads and
secondary roads,stadiums, sidewalks, residential areas,industrial
areas,squares, parks, schools,villas, gardens and other places.
Trade terms
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
Our service
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires
in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area , ideas of design and all your
private information
If any interest , welcome to contact us
Contact: Ella Zhang
Email : sales08 (at) leyond (doc.) com (doc.) cn
Skype : ly-sales25
What's App : +86 136 3289 5220
