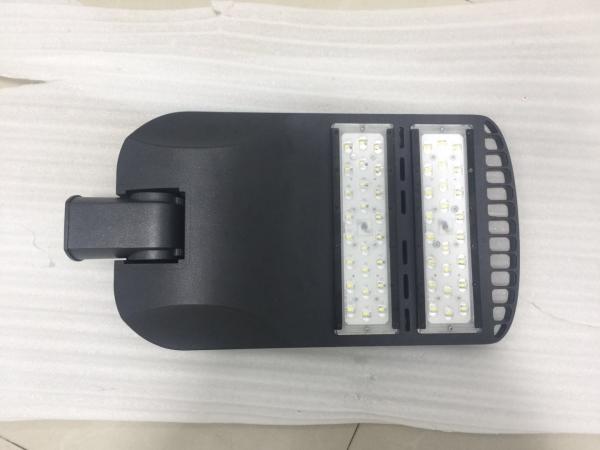

China top3 manufacturer 100 Watt 5050 SMD LED Street Lighting , led
area light 95-305VAC
Product Description:
1. Absolutely unique mold,make your lighting special and fantastic.
2. Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3. Anti-glare and uniform light level to avoid any visual
discomfort.
4. high quality power supply, input voltage 100-277V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
5. Adopting 5050 led light sources and LEYOND lens technology, 8%
light efficiency higher than the same type lights in the market,
with higher light transmittance up to 98%.
6. Duct type thermal design, reduce the weight of the light and
ensure good heat dissipation, lower luminous decay, and also extend
life span of the leds. Adopting the popular CHEM modular design,
effectively reduce the following maintenance cost.
7. Low energy consumption,matching high efficiency constant-current
driver, 60% energy saving; with good resistance to over-current,
over-voltage, lightning, high temperature, which fully ensure long
life span and high stability of the products.
8. Durable lights with long life span up to 50000 hours; No need
frequent replacements of lights and regular maintenance.
9. Green environmental protection, no UV light and infrared
radiation, no mercury pollution.
10. Nice appearance and non-fouling properties, Protection class
IP65.
Specification:
Technical parameter:
| Model | Inptut voltage | Sysem consumption | Luminous flux | Chip Brand | Beam Angle |
|---|
| LY-ST20100PW | AC100V～240V
50/60HZ | 100W | 16200lm | 3030 | 150*65° |
| LY-ST20100WW | 15600lm |
| LY-ST20100NW | 15960lm |
| CRI | Color Temperature | LED Driver | Luminous efficiency | Lifespan | IP Rating |
|---|
| ＞80 | WW:2700-3200K
NW:4000-4500K
PW:5000-6500K | MEAN WELL
HLG-100H | ＞130lm/W | ＞50000h | IP66 |
|
|
| Dimmable | Size(mm) | Net Weight | Package Size (mm) | Package Qty | Gross Weight |
|---|
| YES＆NO | 642x290x120 | 8.8kg | 720*370*200 | 1pcs | 9.6kg |
|
|
Distribution Curve (100W)
If any interested, feel free to contact me or filled below, thanks
for your time.
Pure Zhao (sales Engineer)
