250W Waterproof LED Flood Lights For Football Playground Outdoor
Lighting Project
Specification:
| Par NO/Parameter | LY-ST54250PW |
|
| Inptut voltage | AC85V~265V 50/60HZ |
| Sysem consumption(W) | 250W |
| Luminous flux(lm) | 37000-40000 |
| LED quantity(pcs) | 140pcs |
| Beam Angle | 25°/60°/90°degree |
| CRI(RI) | >75 |
| Color Temperature(CREE) | 2700k-6500k |
| Meterial | Aluminum+PC |
| Driver Brand | Meanwell driver |
| Luminous efficiency | >160lm/w |
| Lifespan(hrs) | More than 50000hours |
| IP Rating | IP66 |
| Size(mm) | 312*458*93mm |
Net Weigh(kg) | 8.2 |
| Package Quantity(Pcs) | 1 |
| Packing Size(MM) | 518mm×365mm×150mm |
| Gross Weigh(kg) | 9.3 |
Features:
1. Adoption LEYOND exclusive Lens with light transmittance up to
98%.
2. Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the
brightness and illumination uniformity.
3 There are 25°,60°, 90° beam angle options for the Lens.
4 Scientifically-designed heat dissipater with much better cooling
effect.
5. High luminous efficiency, Whole lamp output light effiency
>160LM/W.
6. For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation
±7%, the brightness and lifetime will be reduced very fast, but for
BBE LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current,
Over Voltage, Over Heat, Thunder Protection.
7.High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%,
power factor greater than 0.98.
8.The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions,
eliminated the low color temperature of the sodium lamp which cause
the depressed mood,
observers will feel more comfortable.

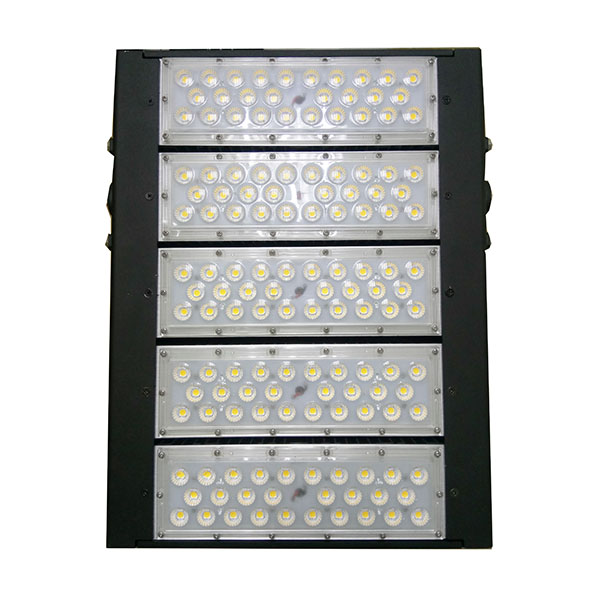

Product Photos:
Applications:
- It is applicable to playground lighting, warehouse lighting,
plaza lighting, tunnel lighting, court lighting and so on.
Data:
Quality Warranty:
• Quality guaranteeis based on storing, installing ,operating and
maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing
inappropriately,breaking the operating rules, and leading to the
productsdamaging.
• Ourcompany will maintain the right to either repair, parts
replacing,or products exchange during the quality warranty period
