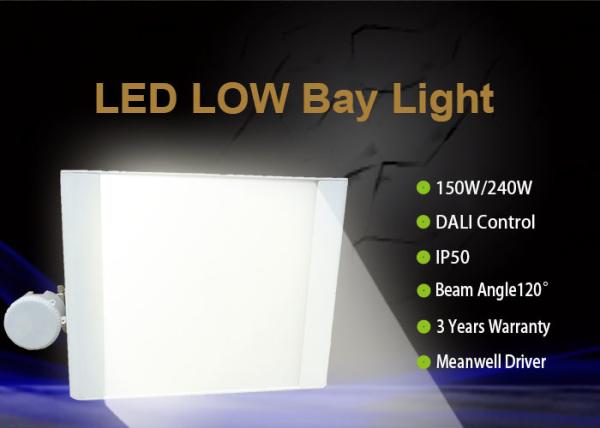

3030 SMD Led Low Bay Lighting 150w 240w With Meanwell Elg Dimming
Driver
Features:
1. High power ,high brightness,high quality,high efficiency,up to
80% energy saving.
2. Light cover adpots light diffusion materials to bring us better
lighting effect.high illumination, and the mliky cover can reach
90% light transmittance.
3. With low light degradation LED and good heat dissipation
aluminum material with quick heat conduction.Make the LED lights
have longer lifetime.10 times than the traditional ones.They need
low cost in maintenance.so,they are fit for the lighting place
where is hard to replace the broken lights often..
4. High luminous efficiency, Whole lamp output light effiency
>100LM/W.
5. High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
LUXEON 3030 2D:High fux, hot-color targeted 6V package:
LUXEON 3030 2D is the first hot-color targeted mid power LED
Hot-color targeting ensures that the LEDs are within color target
at application conditions — 85°C. Using an industry standard
packaging of 3.0mm x 3.0mm x 0.5mm and 6V surface-mount emitter
solution, LUXEON 3030 2D comes in all ANSI CCTs and delivers the
efficacynd reliabilty required for indoor illumination markets.
Meanwell-ELG-36B LED driver:
IP67
3 in 1 dimming function(0-10Vdc, 10V PWM signal and resistance)
150W Low Bay Light II
Outlook:
Technical parameter:
| Model | Inptut voltage | Luminous Flux | LED type | LED QTY | System Efficiency |
|---|
| LY-HB55150PW | AC100V～240V
50/60HZ | 15800lm | LUXEON 3030 | 200PCS | ＞90% |
| LY-HB55150WW | 14000lm |
| LY-HB55150NW | 14550lm |
| Model | Driver | Beam Angle | CRI | CCT | Meterial |
|---|
| LY-HB55150PW | Meanwell
CLG-150
ELG-150 | 120° | ＞75 | 5000-6500k | Aluminum+Acrylic |
| LY-HB55150WW | 2700-3200k |
| LY- HB55150NW | 4000-4500k |
| Model | Power Factor | Lifespan(hrs) | IP Rating | Product Size(mm) | NET Weight(KG) |
|---|
| LY-HB55150PW | 0.96 | ＞50000 | IP40 | 330X328X100 | 5.3 |
| LY-HB55150WW |
| LY-HB55150NW |

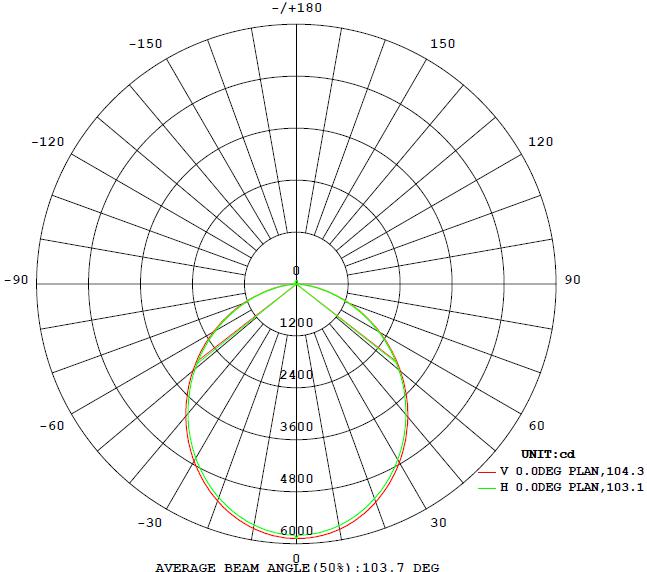

Distribution Curve Photometry (AAI Figure)
Installation:
2 types Felxible Installation way: The low bay light support 2 types installation way.
The sling hanging way can be used the places which the fix point is
limited.
The handle way is the normal way just like the others led lights,
can be install at ground, ceiling & wall with 180° adjustable
position.
Package
·Carton Size: 390mm×390mm×160mm
·Net weight:5.3KG Gross weight:6.4KG
Quality Control
100% of the lamps will be tested and keep lighting for 24 hours to
test its quality reliability
and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test
100% of the lamps to see if it still work well . Each lamp should
pass all these QC procedures
before shipping to customer.
Our Services:
Trade term: EXW, FOB, CIF
MOQ: 1pcs
Port: Shenzhen, Zhongshan, Guangzhou
Sample availability: Yes
Supply capability: 1000 pcs/day
Payment: T/T, Western Union, L/C, Paypal.
Shipment: ocean or air transportation, international express
Normal lead time: 7days for sample order;15 days for production
order
Payment condition: 30% before production, 70%before delivery
