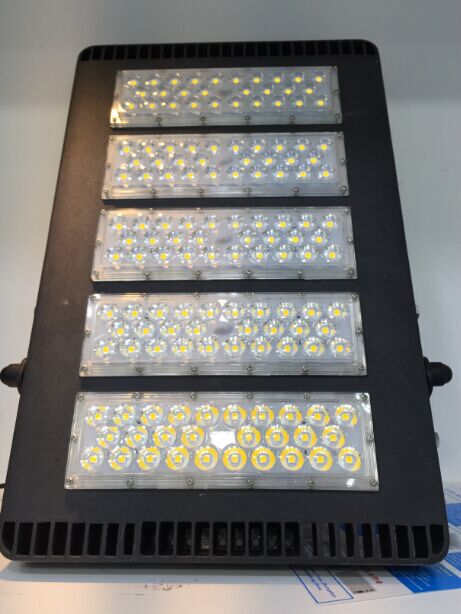

IP66 Stadium LED Flood Light 240W Lumileds 5050 Chip Meanwell
Driver 5 years warranty
Stadium LED Flood Light 240w:
1. Features:
- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell
optic lens,enhance
the brightness and illumination uniformity. - There are 25°,60°, 90° beam angle options for the Lens.
- High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
- CRI 80 to meet different project requet
- Power 240w/480w can be choose.
- No filament and glass frames, avoid break of the traditional
lamp.without harm to the human body.
2. Application:
It is applicable to playground lighting ,warehouse lighting, plaza
lighting,tunnel lighting and so on.
3. Technical parameter:
| Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
| LY-ST30240-PW | 5 | 240W | AC90~305V
50/60Hz | 1.86A/220VAC | >0.95 | >90% |
- Photometric Specifications:
|
| Model | modules number | Power | Luminous flux | Luminous efficiency | CRI | CCT | BeamAngle |
| LY-ST30240PW | 5 | 240W | 38400lm | 160lm/W | >80 | 3000K
4000K 4500K
5000K 5700K 6000K |
35°
60°
90° |
- Mechanical Specifications:
|
| Model | modules number | Power | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
| LY-ST302400PW | 5 | 240W | 540X340X67MM | 12kg | 10.5kg | IP66 | Aluminum +PC
|
4. Attentions:
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
If the new LED down light is found damaged, please keep the
original package and
contact us.
In order to ensure the product work properly, please use the power
supply within
indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant
gasket or similar
materials.
1-10V dimming need to be customized
5. Advantages:
• Adoption LEYOND exclusive Lens with light transmittance up to
98%.
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• There are 25°, 60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling
effect.
• High luminous efficiency, Whole lamp output light effiency
>130LM/W.
• High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
• For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime
will be reduced very fast, but for BBE LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current, Over Voltage, Over Heat, Thunder
Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
4. FAQ:
1). How is the warranty?
----We could offer 5 years warranty, and during our warranty:
1). Products returned within the warranty period must be Leyond
product number & date code.
2). Products of unknown sources or without valid marking will not
be accepted.
3). Replacement items will be sent together with customer's next
order shipment.
2). How is the payment term?
----30% T/T in advance, 70% balance before shipment. P.S: T/T,
Paypal, Wester Union are OK!
3). How is the lead/production time?
----7~15 work days (It depends on the qty of the order)
4). Could you accept OEM?
------We accept OEM. OEM box, OEM sticker
