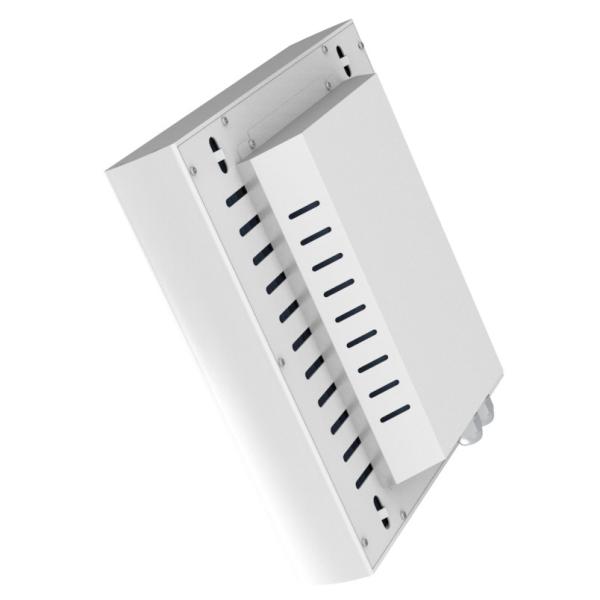

Dimmable elegant Led Low Bay Light Lumileds chips&Meanwell
driver,5 years warranty
Led Low Bay Light Brief Describtion:
Material: Alumium+PC cover.
Beam Angle: 120 Degree
CCT: 2700-3000K/4000-4500K/6000-6500K.
Lumens: 19500LM (150w)
IP Rating: IP40
Certification: CE-EMC, CE-LVD, RoHS.
Application:
It is applicable to Indoor Stadium lighting ,warehouse lighting,
Workshop lighting,
factory lighting,Supermarket lighting and so on.
New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure
Mercury Lamp, and Metal Halide Street Lamps. Etc.
Features:
1. High Lumen output, Whole lamp efficency>120lm/w.
2. Diverse beam angle can be chosen, meet various application.
3. Flexible installation. Both can be install with handle or sling.
4. Long lifespan, 5 years warranty assurance.
5. Perfect mounted on high location in warehouse/parking
place/workshop,etc.
6. 1-10V Dimmable and microwave motion sensor both available.
Specification:
| Power | LY-HB55150-XX |
| Input voltage | AC100-240V, 50/60HZ |
| LED chip | Luxeon 3030 chip |
| LED quantity | 210pcs |
| LED Driver | Meanwell ELG-150-36B |
| Beam angle | 120d |
| CRI | >80 |
| CCT | 2700-6500K |
| Power factor | 0.95 |
| IP grade | IP40 |
| Product Size | 330*328*99mm, N.W:6.0kg |
| Warranty | 5 years |
| Lifespan | 50,000hrs |
Operation and Storage Condition:
1. Operation Ambient Temperature -20 to +50°C, Relative Humidity
20~90%
2. Input Voltage 100~240V AC, 50/60Hz
3. StorageAmbient Temperature -20 to +65°C, Relative Humidity 5~95%
4. Mounting Height : Suitable for 8~30m height
Optional function:
Microwave motion sensor controlling
lThe sensor is innovative and active motion detectors with HF
system 5.8GHz. Motion
can be detected through plastic, glass and thin non-metal
materials.
The sensors allow energy saving without compromising comfort. When
used in
combination with 1-10V dimmable LED drivers or ballasts, they can
achieve 3-step
dimming function, which is perfect for use in some areas that
requires a light change
notice before totally switch off.
Automatic dimming when used in combination with 1-10V dimmable LED
drivers or
ballasts. Built-in adjustable daylight sensor.
Wide detection area, range up to 16m in diameter and mounting
height 15M Max
Trade terms
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
FAQ
Q1. Can I have a sample order for the led light?
A: Yes, we welcome your sample order to test and check the quality.
Mixed samples are also acceptable.
Q2. What about the lead time?
A: Samples needs 5-7 days. Mass production time needs 15-20days
based on the quantity.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 pcs sample is available.
Q4. Do you have guarrantee for the lights?
A: Yes, we offer 3-5 years warrranty for our lights.
Q5. Can I print my logo on led light product?
A: Yes. Please inform us the logo detials formally before our
production and help to comfirm after we do the sample.
Q6: How to place an order?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
