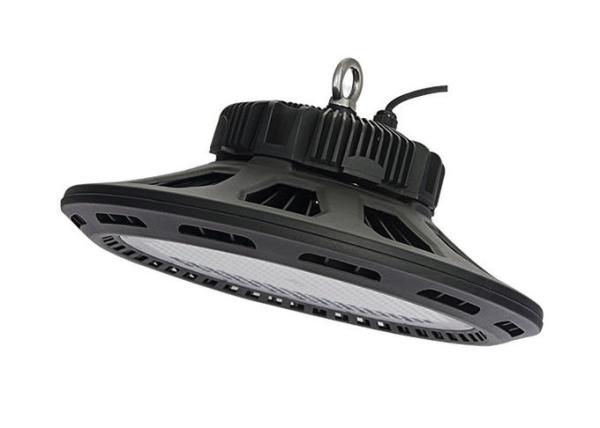

Industrial LED High Bay Light CRI>80 UFO High Bay 100 Watt For
Warehouse
Led High Bay Application
Widely used in Warehouse,Industrial workshops,Logistics
centers,Exhibition halls,Stadiums,Docks,Golf
courses,Airport,Highway toll stations,supermarkets Light
engineering.
100w Led High Bay Main Specification
Material : Magnesium Aluminum + PC cover
Color : Black
Product Code : LY-HB38100XX
Power | 100W | LED Quantity | 154 PCS |
Input Voltage | AC100-240V 50/60HZ | Driver | MEAN WELL |
Luminous Flux | >11200 lm | Product Size | φ260X178mm |
CCT | WW:2700-3200K; NW:4000-4500K; PW:5000-6500K | IP Rating | IP65 |
CRI | >70 | Beam Angle | 60°/90°/120° |
LED Type | SMD3030 | Net Weight | 2.6KG |
UFO Led High Bay Light Features:
•Up to 80% Energy-saving compared to metal halide lamp,
mercury-free and 100% recyclable, energy saving and environmental
protection
• Isolated internal led driver, easy installation, safety
guaranteed
• High PF value 0.9 above and THD less 15% for decrease of
electricity loss
• Up to120LM/W high light efficacy, 50000h above lifespan, 5 Years
warranty, cost effective
• Power supply key components adopt world brand,No flicker, no
delay, Instant on/off
• Designed for hook type, can be directly replaced is used to quick
and easy
• installation to minimize retrofit and maintenance costs
• Small size, less weight and durable is the best choice for
warehouses, stadiums, exhibition spaces, high ceiling lights.
• Using imported chip, LED encapsulation structure optimization, to
achieve low light failure, high photosynthetic efficiency, energy
conservation and environmental protection advantages.
High Bay Led Light Pictures of Product:
High Efficiency Competitive Price IP65 Waterproof 200W Industrial
LED UFO High Bay Light
Package
Carton Size: 360mm×360mm×200mm
Net weight : 2.6KG Gross weight : 3.7KG
Installation
• Step1. Ensure all power disconnected and turn off the power
switch.
• Step2. Knowing the inside diameter of the circular ring,then
choose suitable hook for the lamp.
• Step3. Fix the hook before installation and enable it to support
over 3 times weight of the lamp. Connect the lamp with hook and
make it safe.
• Step4. Connect the input cables of lamp to power supply mains and
wrap up the cables with insulated sleeve.
• Step5. Switch on the power, the lamp will light on. Refer to the
left figure.
In case of any abnormal phenomenon or problem, please switch off
the power supply then contact with Genice customer service center.
FAQ
- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below
5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
- Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
