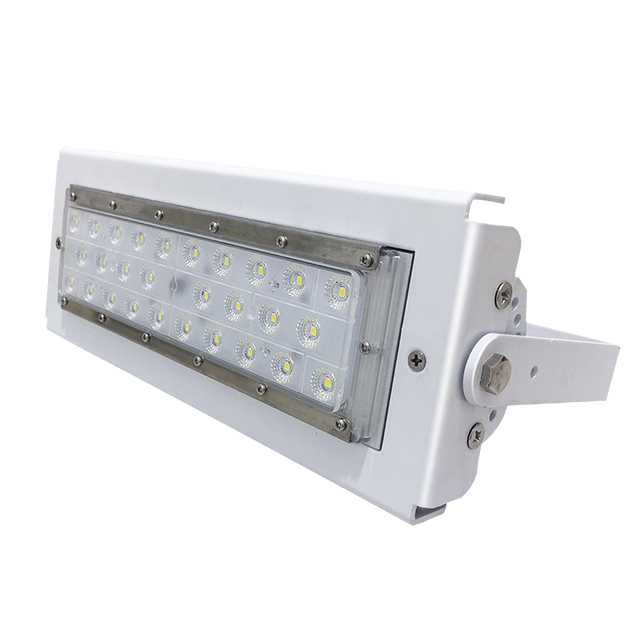

LED Modular Floodlight 50-1000W 170 LM/W 25 60 90 Beam Angle
Parameters
| Parameters | LY-ST23050PW | LY-ST23050NW | LY-ST23050wW |
| Lifespan(hrs) | ＞50000 | ＞50000 | ＞50000 |
| IP Rating | IP66 | IP66 | IP66 |
| Dimmable | Optional | Optional | Optional |
| Size(mm) | 320*128*76 | 320*128*76 | 320*128*76 |
| Net Weigh(kg) | 2.6 | 2.6 | 2.6 |
| Package Size(cm) | 54.3*31*43 | 54.3*31*43 | 54.3*31*43 |
| Package Quantity(PC) | 4 | 4 | 4 |
| Gross Weigh(kg) | 16 | 16 | 16 |
Features:
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• There are 25°, ,60°, 90° ,beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling
effect.
• High luminous efficiency, Whole lamp output light effiency
>150LM/W.
• High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
• For the traditional light source such as the High Pressure Sodium,
if the voltage fluctuation ±7%, the brightness and lifetime will be
reduced very fast, but for LEYOND LED, even the voltage fluctuation
is ±20%, the brightness and lifetime will not be influenced at
all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
Pictures
Applications
1. playground,
2. warehouse,
3. plaza,
4. tunnel,
New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
etc.
Operation & Storage Conditions
Operation Ambient Temperature -40 to +50°C, Relative Humidity
20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -40 to +65°C, Relative Humidity 5~95%
Mounting Height : Suitable for 3~10m height
Warnings
Please handle the product with care when open the package.
l Do Not Open the Light Engine
l Do Not Soak the Floodlight into Water
l Do Not Light up the System Without Grounding
l Do Not Use Dimmer
l If the new LED down light is found damaged, please keep the
original package and
contact us.
l In order to ensure the product work properly, please use the power
supply within
indicating voltage range.
l Whatever the case, lamps can not be covered by heat resistant
gasket or similar
materials.
l 1-10V dimming need to be customized.
