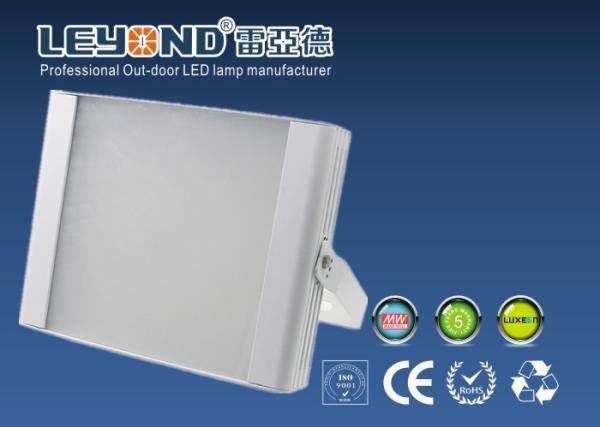

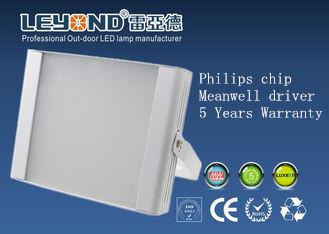

Warehouse Industrial Indoor Lighting LED Low Bay High efficiency
120W 150W 180W 3030
Facture
High power , high brightness , high quality , high efficiency , up
to 80% energy saving
Light cover adpots light diffusion materials to bring us better
lighting effect . high illumination , and the mliky cover can reach
90% light transmittance
With low light degradation LED and good heat dissipation aluminum
material with quick heat conduction . Make the LED lights have
longer lifetime.10 times than the traditional ones . They need low
cost in maintenance.so , they are fit for the lighting place where
is hard to replace the broken lights often
High luminous efficiency , Whole lamp output light effiency
>100LM/W
High quality power supply , input voltage 100-240V. The power
efficiency is more than 90% , power factor greater than 0.98 , UL
compulsory certification
For the traditional light source such as the High Pressure Sodium ,
if the voltage fluctuation ±7% , the brightness and lifetime will
be reduced very fast , but for BBE LED, even the voltage
fluctuation is ±20% , the brightness and lifetime will not be
influenced at all ; Over Current , Over Voltage , Over Heat ,
Thunder Protection
Impact Resistance , Shock-proof , Without Ultraviolet (UV) and
Infrared (IR) Radiation : No filament and glass frames , avoid
break of the traditional lamp , without harm to the human body
The CCT of Warm white , Neutral white , Pure white to meet the
needs of different occasions , eliminated the low color temperature
of the sodium lamp which cause the depressed mood , observers will
feel more comfortable
Application
It is applicable to Indoor Stadium lighting , warehouse lighting ,
Workshop lighting , factory lighting , Supermarket lighting and so
on.
New Installation or Replace the traditional High Pressure Sodium
Lamp , High Pressure Mercury Lamp , and Metal Halide Street Lamps .
Etc
Technical Date
Par NO Parameter | LY-HB55150PW | LY- HB55150WW | LY- HB55150NW |
| Inptut voltage | AC100V～240V 50/60HZ |
| Luminous Flux | 15750lm | 14000lm | 14500lm |
| LED type | LUXEON 3030 | LUXEON 3030 | LUXEON 3030 |
| LED QTY | 210 PCS | 210 PCS | 210 PCS |
| System Efficiency | ＞90% | ＞90% | ＞90% |
| Driver | Meanwell CLG-150 |
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞80 | ＞80 | ＞80 |
| CCT | 5000-6500k | 2700-3200k | 4000-4500k |
| Meterial | >Aluminum+Acrylic |
| Driver Supply | MEAN WELL CLG-150 |
| Power Factor | 0.96 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP50 |
| Product Size(mm) | 362X291X130 | 362X291X130 | 362X291X130 |
| NET Weight(KG) | 6.6 | 6.6 | 6.6 |
Outlook
Package
Carton Size : 450mm×400mm×210mm
Net weight : 6.6KG Gross weight:7.5KG
Trade terms
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
Our service
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires
in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area , ideas of design and all your
private information
If any interest , welcome to contact us
Ella(sales)Mob : + 86 13632895220 Tel: + 86 755 27606866
Skype:ly-sales25
Shenzhen Leyond LIGHTING CO. , LTD
