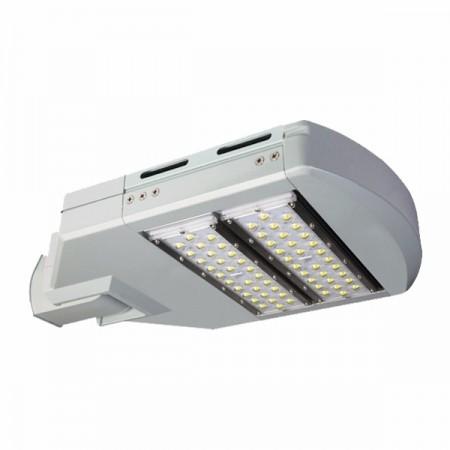

Module Outdoor LED Street Lighting energy consumption 160 lumen per
watt
| Specification |
| Power: | 60W / 80W / 100W |
| Material: | Aluminum Alloy / PC |
| Chip: | Bridgelux 23 * 45mil ( 2pcs chips in one LED ) |
| Luminous: | 11900 LM |
| Color Temperature: | 2800 ~ 5500K |
| CRI: | Ra 50 / 60 / 70 ( optional ) |
| Beam Angle: | x150° ~ y70° |
| PF: | > 0.95 |
| Working Life: | ≥ 50000 hrs |
| Warranty: | 5 years |
| Finishing Color: | Black |
| Wire connection: | L ( Brown ) N ( Blue ) G ( Green / Yellow ) |
| SHAPE: | Rectangle |
| Package: | 1pcs / carton |
| Input Voltage: | AC90 - 305V / 50 - 60Hz |
| Operating Temperature: | - 40 ~ + 60°C |
| Net Weight ( kg ) | 6.7 kg |
Application
1. Used for highway , Main road , Pavement street
2. Residentialroad , Branch road , Rural roads , Square
3. Parking lots , Gardens , Industrial roads
4. Indoor high space lighting , Factories . etc
Operation and Storage Condition
Operation Ambient Temperature -40 to +50°C , Relative Humidity
20~90%
Input Voltage 85~265V AC , 50/60Hz
Storage Ambient Temperature -40 to +85°C , Relative Humidity 10~90%
Mounting Height : Suitable for 5~10m height
Features
1. High quality power supply , input voltage DC12 - 24 V .
2. High Lumens output >120lm/W, with Bridgelux chip high power
LEDs
3. The power efficiency is morethan 90% , power factor greater than
0.98 , UL compulsory certification
4. Popular LED modules inside , easier for maintanance
5. With long life span 50000 hours , No need frequentreplacements
of lights and regular maintenance
6. Don't worry with 5 years warranty
7. Green environmental protection , no UV light and infrared
radiation , nomercury pollution
8. Nice appearance and non-fouling properties , Protection class
IP66
9. Work without strobe , fast transient responseA wide range of
working voltage
10. 2pcs 1W chips are packaged in one led , which ensure high
stability andalso reduce the death rate of the leds
Warning
1. Please handle the product with care whenopen the package
2. Do Not Open the Light Engine
3. Do Not Soak the Floodlight into Water
4. Do Not Light up the System Without Grounding
5. Do Not Use Dimmer
6. If the new LED down light is found damaged , please keep the
originalpackage and contact us
7. In order to ensure the product work properly , please use the powersupply within indicating voltage range
8. Lamps shall be installed and maintained by a qualified electrician
