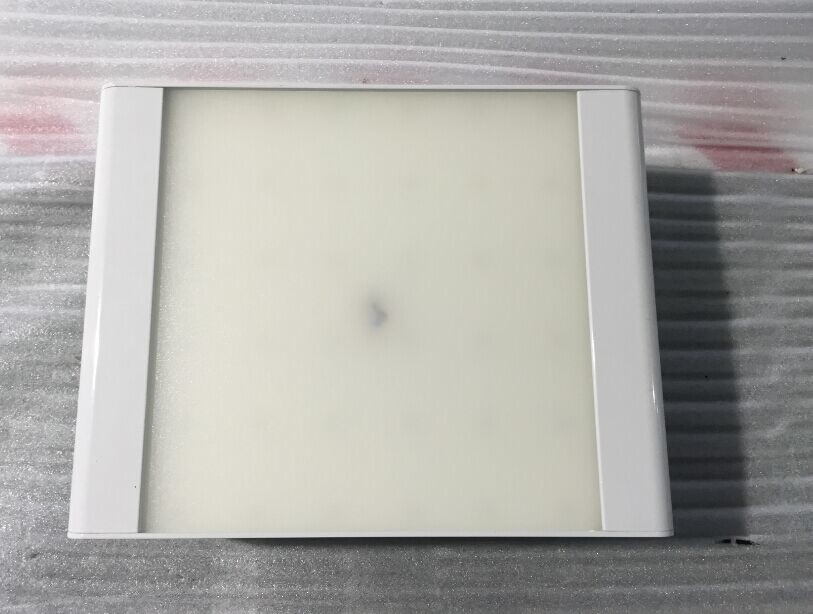

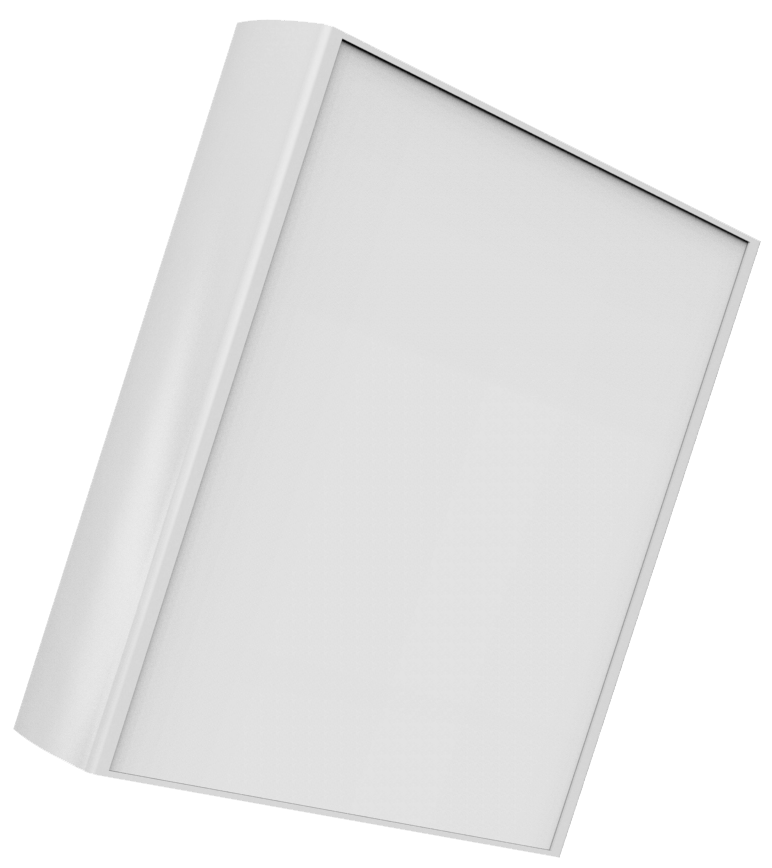

2018 Design LED Low Bay Light 150w Lumileds Chips Meanwell Driver
Inside 5 Years Warranty
LED Low Bay Light 150w Brief Description:
Material: Alumium+PC cover.
Beam Angle: 120 Degree
CCT: 2700-3000K/4000-4500K/6000-6500K.
Lumens: 18300LM.
IP Rating: IP50
Certification: CE-EMC, CE-LVD, RoHS.
Features:
1. High Lumen output, Whole lamp efficency>122 lm/w.
2. Perfect mounted in 10 meters height on warehouse/parking
place/workshop,etc.
3. 1-10V Dimmable and microwave motion sensor both available.
4. Long lifespan, 5 years warranty assurance.
5. Lock catch and chain as standard equipped for installation.
Applications:
The Low bay light can be widely used at warehouse, Factory,
Stadium, Supermarket, and others indoor Area Lighting.
Specification:
| Power | LY-HB55150-XX |
| Input voltage | AC100-240V, 50/60HZ |
| LED chip | 3030 chip |
| LED quantity | 210 pcs |
| LED Driver | Meanwell ELG-150-36B |
| Beam angle | 120 degree |
| CRI | >80 |
| CCT | 2700-6500K |
| Power factor | 0.98 |
| IP grade | IP50 |
| Product Size | 362*291*130mm N.W 6.6 kg |
| Warranty | 5 years |
| Lifespan | 50000hrs |
Package size:
Carton Size : 570mm×385mm×175mm
Net weight : 7.5KG Gross weight: 8.5KG
Operation and Storage Condition
1. Operation Ambient Temperature -20 to +50°C, Relative Humidity
20~90%
2. Input Voltage 100~240V AC, 50/60Hz
3. StorageAmbient Temperature -20 to +65°C, Relative Humidity 5~95%
4. Mounting Height : Suitable for 8~30m height
