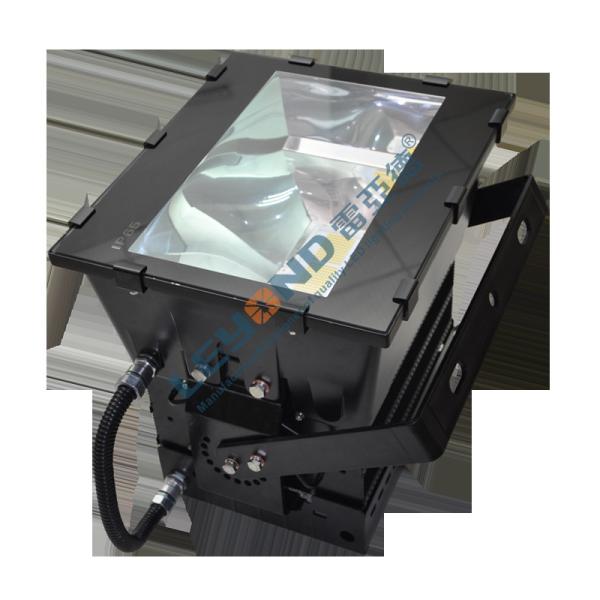

1000w High Power Led Flood Light 140lm / W For Stadium Lighting
Available for beam angle: 90x10degree, 90x50degree, high lumens,
install height 10-50meters
1000W High Power LED Flood Light Specification:
| Input voltage | AC100V～240V |
| Frequency range | 50HZ～60HZ |
| Total harmonic distortion | ≤9% |
| Power factor | ≥0.9 |
| Power efficiency | ＞85% |
| System consumption | 1000W |
| LED package | CREE XTE |
| LED consumption | 1000W |
| LED Working voltage | DC33～39V |
| LED quantity | 440PCS |
| LED luminous | ＞80100lm |
| LED luminous efficiency | 85～95lm / W |
| CRI | ＞70 |
| LED Junction temperature | ≤85℃ |
| Operational condition | Temperature -30℃～50℃ |
| Humidity 10%～90%RH |
| Storage temperature | -30℃～75℃ |
| Working life-span | ＞50,000H |
| Beam angle | 90°*50°,90°*10° |
| IP Grad | IP65 |
| Housing | Glass and AI alloy |
| Mounting Height | Suitable for 10～50m height
|
Features:
• Full waterproof design IP65
• High transmittance empered glass,transimittan 93%
• Multible choices for reflctors: 90°*50°,90°*10°, meet the
requirement of professional light distribution.
• By riveting the heatsink to the fins,make the incomparable
heatsink housing,The heat from the LEDS is transformed to the fins
with massive dissipating area by the 12X8mm heatpipes,reducing the
temperature of the LEDS rapidly and extending the life span.
• Over Current,Over Voltage,Over Heat,Thunder Protection
• Choice of correlated color temperatures
• Long lifespan for LED 50,000 hrs
• Complying with CE,ROHS, No strobing during working, Fast response
(no delay) , No mercury vapour , No radiation,No UV,No damage with
frequency switching

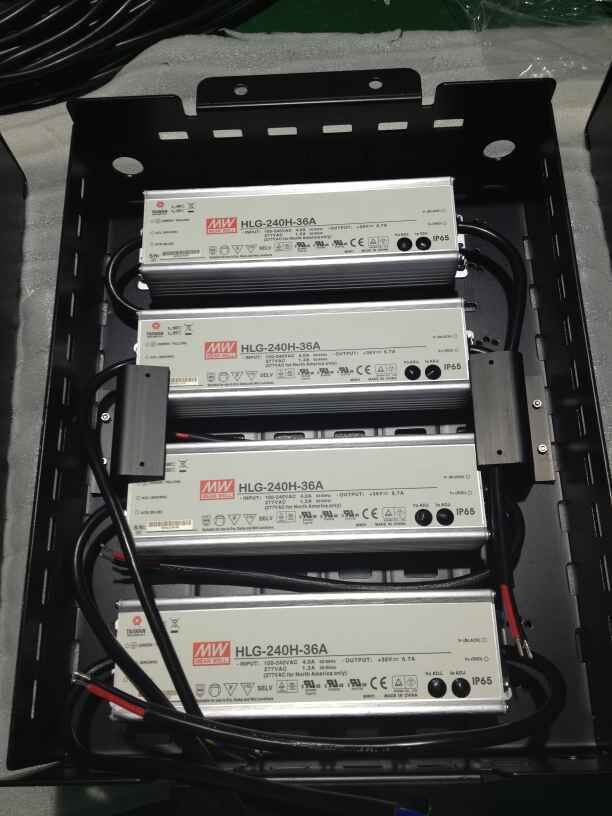

Meanwell Driver for 1000 watt high power led flood light:
| Driver brand: | Meanwell HLG-240 Series X 4pcs |
| Ac input voltage range | 90-305VAC/350VAC/480VAC,127-417VDC/431VDC |
| Power factor | >0.95 |
| Driver Safety standards | Passted UL 8750/1012/60950,TUV EN61347/60950-1 |
| Protection function | Short circuit, overload, over voltage, over temperature |
| Emc standard | EN55015,EN55022 Class-B,EN61000-3-2 Class-C |
| Drive IP | IP65 |
| Housing Material | Aluminum
|
Installation:
• Installation tool:A adjustable wrench group.
Installation Steps:
• Remove the hexagonal screws on the floodlights handle,then adjust
the angle you need,finally Tighten Axle Screw, and Locate Screw
Tighten Axle Screw.
• Connecting the power line of LED Flood Light to the power
supplier ,finish the installation procedure
The installation notices:
• No necessary using other devices for LED Flood light installation
such as stabilizer,regulator and so on
• Opening the light and lifting the buckle is unallowable.Soaking
in the water is unallowable
Warning:
• Do Not Use Other Devices for LED Floodlight Installation Such as
Stabilizer,Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
Applications:
Complete lamp can replace high pressure sodium lamp over
1500-2000W.It can instant start,and has long life span,low
consumption of energy,and polluting-free.It can be widely used at
the stadium,golf course,wharf,square,etc
