High Brightness High Power Led Flood Light With Photocell Sensor
for Optional
1. Features of led Flood Lights
1) Adoption LEYOND exclusive Lens with light transmittance up to
98%
2) Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3) There are 25°,60°, 90° beam angle options for the Lens.
4) Scientifically-designed heat dissipater with much better cooling
effect.
5) High luminous efficiency, Whole lamp output light effiency
>160LM/W.
6) High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
7) For the traditional light source such as the High Pressure Sodium,
if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for
LED, even the voltage fluctuation is ±20%, the brightness and
lifetime will not be influenced at all;Over Current, Over Voltage,
Over Heat, Thunder Protection.
8) Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
9) The CCT of Warm white,Neutral white,Pure white to meet the needs of
different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
2. Advantages Of Outdoor Led Flood
1) Luxeon 5050 chips inside,160-170lm/w, plus Meanwell driver.
2) Independent model design,Viewing angle: 25°/60°/90°, IP66 rated.
3) Available for Daylight sensor,5 years warranty.
3.Technical parameter Of Led Flood Light Fixtures.
Par NO Parameter | LY-ST30200XX | LY-ST30240XX |
| Input voltage | AC100V～240V 50/60HZ |
System consumption(W) | 200 | 240 |
| Luminous flux(lm) | 33000 | 38400 |
Chip Brand | LUXEON 5050 BRIDGELUX 5050 | LUXEON 5050 BRIDGELUX 5050 |
Beam Angle | 25°60°90° 150x70° | 25°60°90° 150x70° |
| CRI | ＞75 |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| LED Driver | MEAN WELL |
Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO |
| Size(mm) | 540*340*67 | 540*340*67 |
| Net Weigh(kg) | 9.5 | 9.5 |
| Package Quantity(Pcs) | 1 | 1 |

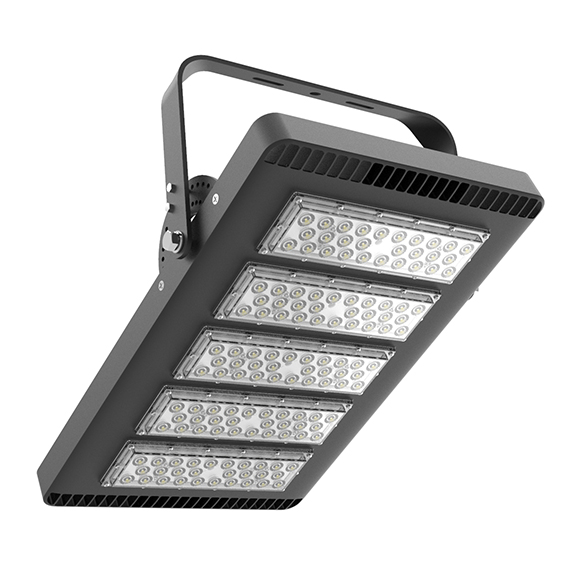

4.Outlook of IP65 LED Flood Light
5.Details of Waterproof Led Flood Lights
1) Die Cast Aluminum Alloy
aluminum alloy die-casting with high thermal conductivity. The wavy
shape of the heat dissipation increases the heat dissipation area
and forms good convection with the surrounding air. The operating
temperature does not exceed 65 degrees, thereby ensuring the
stability and long life of the lamp ; Excellent self-cleaning
function, the design of the curved heat sink and drainage groove is
conducive to the sliding of dust, rain and snow, and the dust on
the surface is more easily carried away by rain.
Absolutely unique mold,make your lighting special and fantastic.
2) Photocell Sensor Available
The twist-lock type photocontrols are manufactured as per ANSI
C136.10 standards. They are mainly used in controlling the outdoor
lighting fixtures with mating receptalces automatically. If the
photo control is temporarily not to be used, the shorting cap can
be used instead.Earlier turning-off in dawn for saving more energy,
easy-to-maintain Twist-lock (ANSI C136.10) & Fail-On mode IP65
protection while installed (5-20 seconds time-delay switching-off
for luminaires protection)
3) Leyond 5050 chips with high brightness, High lumen >165lm/w
4) Privated lens with low light Privated lenswith low light
attenuation, high illumination, and good heat dissipation
5)Meanwell driver, high conversion rate up to 91%, metal case and
IP67 high protection level design
6.Application of LED Flood Lights
• It is applicable to playground lighting ,stadium lighting,plaza
lighting, and so on.
• New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
Welcome to contact us for more details.
For More Information, Pls Feel Free To Contact Us
FAQ:
- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
- Is it OK to print my logo on led lights product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
- Do you have any MOQ limit for led Lighting order?
A: Low MOQ, 1pc for sample checking is available
- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below
5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
- Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
