1)Adoption LEYOND exclusive Lens with light transmittance up to
98%.
2)Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.

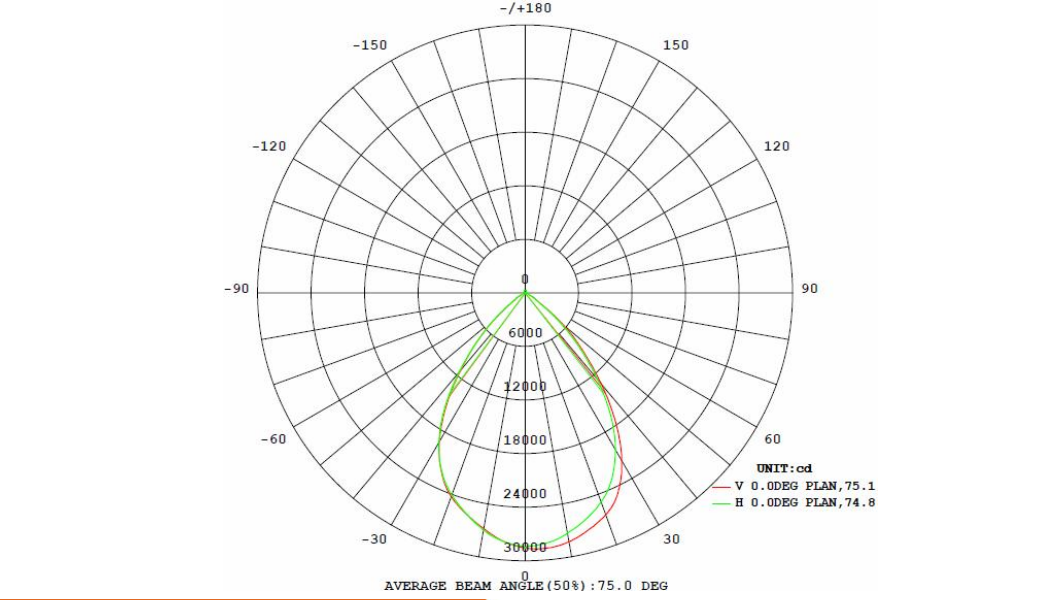

3)There are 25°,60°, 90° beam angle options for the Lens.
4)Scientifically-designed heat dissipater with much better cooling
effect.
5)High luminous efficiency, Whole lamp output light effiency
>160LM/W.
6)High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
7)For the traditional light source such as the High Pressure Sodium,
if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for
LED, even the voltage fluctuation is ±20%, the brightness and
lifetime will not be influenced at all;Over Current, Over Voltage,
Over Heat, Thunder Protection.
8)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
9)The CCT of Warm white,Neutral white,Pure white to meet the needs of
different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
Par NO Parameter | LY-ST24250PW | LY-ST24250PW | LY-ST24250PW |
| Input voltage | AC100V～240V 50/60HZ |
System consumption(W) | 250 | 250 | 250 |
| Luminous flux(lm) | 40000 | 37000 | 33500 |
Chip Brand | LUXEON 5050 BRIDGELUX 5050 | LUXEON 5050 BRIDGELUX 5050 | LUXEON 5050 BRIDGELUX 5050 |
Beam Angle | 25°60°90° 150x70° | 25°60°90° 150x70° | 25°60°90° 150x70° |
| CRI | ＞75 |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| LED Driver | MEAN WELL ELG-240 / HLG-240H |
Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 320*504*76 | 320*504*76 | 320*504*76 |
| Net Weigh(kg) | 6.4 | 6.4 | 6.4 |
| Package Size(mm) | 608*390*135 | 608*390*135 | 608*390*135 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 7.4 | 7.4 | 7.4 |
Details
It is applicable to playground lighting ,warehouse lighting, plaza
lighting, tunnel lighting andso on.
New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street
For More Information, Pls Feel Free To Contact Us
FAQ:
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for
order quantity
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
