Energy Saving 10w 20w 30w 40w 50w 60w solar led solar street light
with motion sensor
1. Specificatoin:
Par NO Parameter | LY-ST30020PW | LY- ST30020NW | LY- ST30020WW |
| Battery | 18650 lithium battery 12V 20 Ah / 30 Ah |
| Beam angle | 150x70° | 150x70° | 150x70° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 20W | 20W | 20W |
| Luminous flux(lm) | 3200 | 3050 | 2900 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Solar panel | 20W /18V monocrystalline silicon |
| CRI | ＞70 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure
white:5000-6500K |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | Light Control + Sensor |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 4~8M |
| Size(mm) | 750x257x102 | 750x257x102 | 750x257x102 |
| Net Weigh(kg) | 6.9 | 6.9 | 6.9 |
| Package Size(mm) | 800*295*155 | 800*295*155 | 800*295*155 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 7.5 | 7.5 | 7.5 |

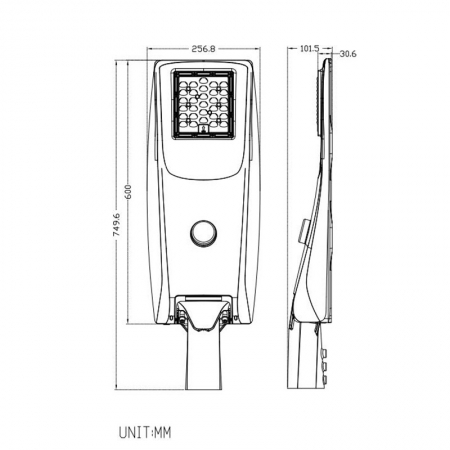

2. Dimension:
3. Features:
1>The intergration of design ,no cable,the installation is very
convenient.
2>The Mono-crystalline solar panel,LED lights,lithium
battery,intelligent controller integrated Aluminum Alloy shell.
3>It used of lithium iron phosphate battery,fight the high
temperature,keep long life.
4>When the products with optically controlled microwave
induction infrared sensor, automatic adjustment of intelligent
power on rainy days, extend rainy days.
5>It used of alloy material as the main structure,with good rust
prevention,corrosion protection.
6>The wireless remote control setting device,adjustable lighting
time ,lighting power ,automatic detection of battery voltage,read
light power parameters,a human body induction function,as long as
people go through when full power lighting,no automatic power down
alf, restore energy saving mode.
7>time control + light sensor control+ motion sensor control
8>Motion and light sensor built in:solar street light goes on at
dusk at 50% brightness. Can go from 50% power to full brightness
when motion is detected. Three Intelligent Modes: Bright / DIM /
Recharge. 1,Bright: motion activates for lighting when motion is
detected for security light and to save battery; 2,DIM: 50%
lighting for saving power when no motion; 3,Off/Recharge:
automatically turns off in daylight and goes into recharge mode.
(working mode can be adjusted according to client's demands).
4. Application:
Suitable for the street lighting; sidewalk lighting;roadway
lighting; fence lighting; pathway lighting; campus lighting; park
lighting; garden lighting;ramp lighting;boat dock lighting; remote
area lighting;farm & ranch lighting.

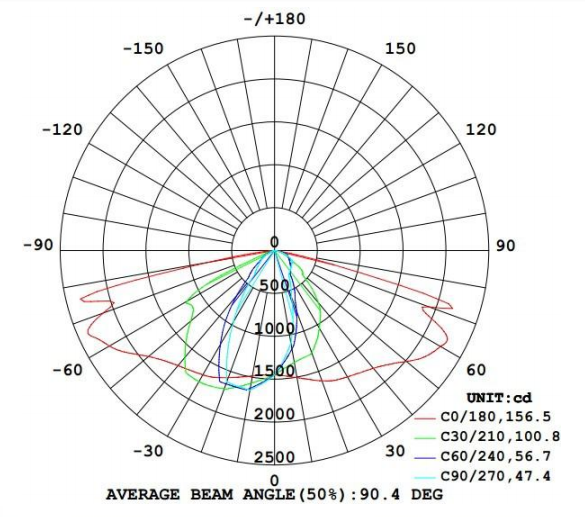

5. Distribution Curve:
6. Package:
7. Detail Pictures:
8. FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when
choosing LED light source. The higher, the better. Besides, brand
of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyond
always treat the clients benefit as the most important thing. So,
we use the top brand
material to produce high quality product.
3. How to place an order?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty
policy, please contact our sales representatives.
