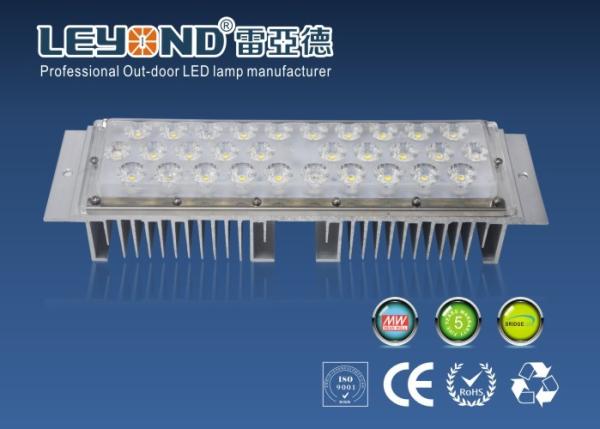

Aluminum Bridgelux Chip Led Lighting Module For Led Tunnel Light
Application
Applicable to all types of road lighting: expressway, trunk road,
main road, large public buildings or commercial center road,
secondary road, branch, residential roads and sidewalks, and can
also be used for general building, square, freight yard, landscape
and other places of lighting.
New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
Specification:
| CCT(K) | Wattage(W) | CRI(Ra) | Voltage DC(V) | Current DC(mA) | LuminousEfficienc(Lm/W) | Luminousflux(lm) |
| 2800-2950 | 30 | 50±5 | 29.11 | 960 | 160 | 4657 |
| 40 | 50±5 | 30.08 | 1300 | 150 | 5998 |
| 45 | 50±5 | 30.5 | 1460 | 145 | 6579 |
| 50 | 50±5 | 30.88 | 1600 | 140 | 7060 |
| 2800-2950 | 30 | ≥60 | 29.82 | 960 | 141 | 4227 |
| 40 | ≥60 | 31.03 | 1300 | 130 | 5200 |
| 45 | ≥60 | 31.56 | 1460 | 125 | 5625 |
| 50 | ≥60 | 32 | 1600 | 120 | 6000 |
| 4000-4500 | 30 | ≥60 | 29.18 | 960 | 149 | 4163 |
| 40 | ≥60 | 30.13 | 1300 | 137 | 5378 |
| 45 | ≥60 | 30.56 | 1460 | 132 | 5904 |
| 50 | ≥60 | 30.92 | 1600 | 128 | 6342 |
| 4000-4500 | 30 | 70±5 | 29.97 | 960 | 140 | 4080 |
| 40 | 70±5 | 31.2 | 1300 | 130 | 5200 |
| 45 | 70±5 | 31.73 | 1460 | 125 | 5600 |
| 50 | 70±5 | 32.17 | 1600 | 120 | 6000 |
| 5000-5500 | 30 | 70±5 | 30.1 | 960 | 141 | 4082 |
| 40 | 70±5 | 31.32 | 1300 | 130 | 5253 |
| 45 | 70±5 | 31.85 | 1460 | 125 | 5753 |
| 50 | 70±5 | 32.3 | 1600 | 120 | 6171 |
| 6000-6500 | 30 | 70±5 | 29.29 | 960 | 140 | 4080 |
| 40 | 70±5 | 30.29 | 1300 | 130 | 5200 |
| 45 | 70±5 | 30.73 | 1460 | 125 | 5600 |
| 50 | 70±5 | 31.11 | 1600 | 120 | 6000 |
| IP Rating | IP66 |
| Product Dimension | 300*80*60MM |
| Net weight | 0.92KG |
| Light Body& Lampshade | Aluminum Alloy and PC |
| Working Life | 50000H |
| Working Temperature | -30 ~ +50 ℃ ℃ |
| Storage Temperature | -10 ~ +85 ℃ ℃ |
| Working Humidity | 10%~90% |
| Beam Angle | 24°/36°/60°/90°
|
Features
High luminous efficiency,30W Luminous flux4285lm; Whole lamp output
light effiency >150LM/W.
Unique second-time light distribution, no light pollution,no glare,
no flickering.
Modular structure making the lamp more easier and faster to be
designed ,easy to do replacement and maintaining.A variety of
combinations can multiply increase the brightness and illumination.
Modular concept, piece combinations as your require. Can satisfy
any number of lanes and width combinations. With IP66 Protection,
adapt to any weather conditions.
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
The CCT of Warm white,Neutral white,Pure white to meet the needs of
different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood.
CHEM module design adopts the professional optical design of
free-curve- surface, fully uses the features that LED light in
directionally to improve the utilization of LED maximumly under
offered a space-saving of light efficiency,and makes shines more
than 80% on the road,and avoids light pollution maximumly caused by
street lights.
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when choosing LED light source. The higher, the
better. Besides, brand of LED chip, LED base and other materials
will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyong always treat the clients benefit as the
most important thing. So, we use the top brand material to produce
high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood
light, LED high bay, LED downlight, LED ceilling light, LED spot
light, LED tube, LED module, LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below
5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
6. How long will the warranty period last?
A: We usually offer 2 years free warranty for Bridgelux products.
More detailed warranty policy, please contact our sales
representatives.
