IP66 150W RGB LED flood light with 3 years for outdoor lighting
fixture.
Outlook:
Application:
LED is cold light sources, a wide range of output color, RGB
modular flood light use LED as a light source ,can be widely used
in various building walls of light color decoration, and the stage,
meeting rooms, display lights, ancient buildings, the Cultural
Plaza and other places.
Features:
1.Control mode:RF/IR/DMX512. Standard DMX512 input interface and a
built-mode controller , can be realized in whole or segmented light
change control, especially, it can achieve water and complicated
effects.
2.Adoption LEYOND exclusive Lens with light transmittance up to
98%.
3.Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
4.There are 25°,,60°, 90° beam angle options for the Lens.
5.Master or Slave function, if set master, it can stead of the
external controller.
6.Reliable constant current driver designed to ensure high-power
LED lights for a stable job.
7.Superior ability to adapt to the environment, protection grade
IP65, can adapt to a variety of indoor and outdoor temperature and
humidity environment. The lamp base is aluminum alloy, solid
,anti-aging, anti-variant, long service life.
8.More than 16777 thousand kinds of colors can be realized output,
with good light efficiency, beautiful color and so on.
9Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
Performace Parameters:
| Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
| LY-ST23150RGB | 4 | 150W | AC100~240V 50/60Hz | 0.70A/220VAC | >0.99/115VAC >0.95/230VAC | >90% |
| Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
| RED | 620-630 nm | 1800 lm | 13-17V | 2000mA(MAX) |
| GREEN | 520-530 nm | 3800 lm | 21-25V | 2000mA(MAX) |
| BLUE | 460-465 nm | 1440 lm | 21-25V | 2000mA(MAX) |
| WHITE | R+G+B | 6400lm | 13-25V | 6000mA(MAX) |

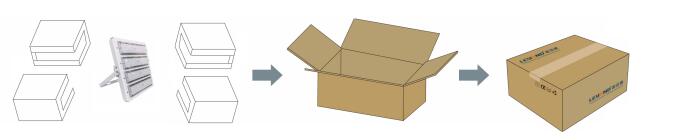

Package:
Inner box Size: 514mm×390mm×135mm
Outer box Size: 529mm×405mm×305mm (2 PCS LED Flood Light)
DMX CONTROL:
RF/IR CONTROL:
Notes:
1.Product should meet the "use environment " requirements.
2.If you asked a group of light has the same effect, the group
light should be set to the same address.
3.The largest light control points cannot be more than 510.
4.Connected to a group of light is only one master (operate in
master mode lights, controller or the console).
5.Controller or signal splitter to connect the rear end of a light
cannot be more than the maximum length of 30 meters.
6.To ensure the reliable transmission of DMX signal, if lamp
connection is over 100M ,should be added in the DMX signal
transmission line signal amplifier to amplify the signal.
7.The input and output port should meet the requirements, otherwise
it will cause light damage.
Warning:
1.Please handle the product with care when open the package.
2.Do Not Open the Light Engine
3.Do Not Soak the Floodlight into Water
4.Do Not Light up the System Without Grounding
5.If the new LED down light is found damaged, please keep the
original package and contact us.
6.In order to ensure the product work properly, please use the
power supply within indicating voltage range.
7.Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
