IP65 LED Flood light 150Watt for area lighting fixture.

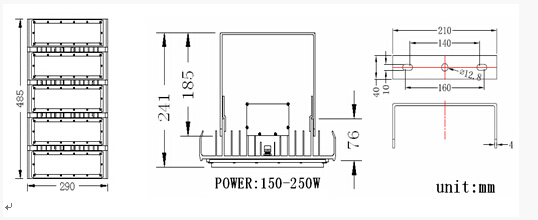

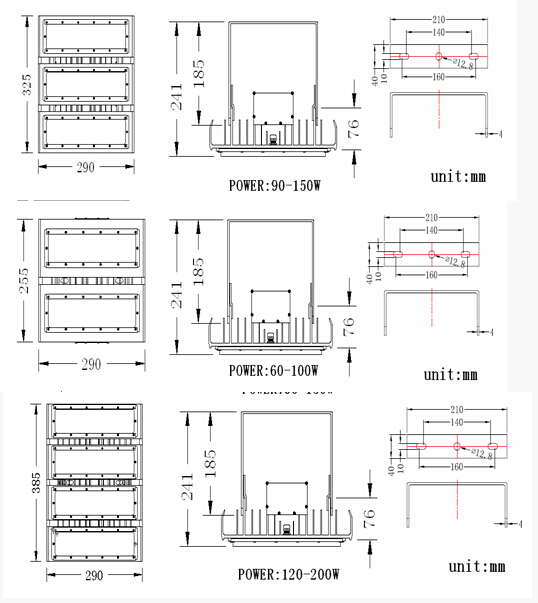

1. Outlook
2. Application
1) It is applicable to playground lighting ,warehouse lighting,
plaza lighting, tunnel lighting and so on.
2)New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
3. Features
1. Adoption Lepower exclusive ZAG Lens with light transmittance up
to 98%
2. Perfect Light Distribution Solution:Adoption of integrated
peanut shell optic lens, enhance the brightness and illumination
uniformity.
3. High luminous efficiency, Whole lamp output light effiency
>130LM/W.
4. high quality power supply, input voltage 100-277V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
5. For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime
will be reduced very fast, but for BBE LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current, Over Voltage, Over Heat, Thunder
Protection
6. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body;
7. The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
4. Distribution Curve
5. MTBF Curve
The MTBF Curve is only for information when DRD-W4KLKMB1P LEDs are
Operating at 25degC and
3250mA,Which is 8 hours on time per day . Luminous Intensity of the
type LEDs would drop to round 85.95% when
operating to 50000 hours:
6. Operation and Storage Condition
Operation Ambient Temperature -30 to +50°C, Relative Humidity
20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -30 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 5~12m height
7. Assembly and Installation
Assembly-Electricity
8. Warning
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
If the new LED down light is found damaged, please keep the
original package and contact us.
In order to ensure the product work properly, please use the power
supply within indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
9. Project Case
