01.Features of led street lamp
- The integrated all in one design, no cable,the installation is very
convenient.
- Fully-digital and high-precision constant current control boasting
an efficiency of up to 96%
- The Mono-crystalline solar panel,LED lights,lithium
battery,intelligent controller integrated Aluminum Alloy shell.
- True constant current rather than current-limiting control ensures
smooth and stable output current, effectively reducing LED light
attenuation and extending LED service life.
- When the products with optically controlled microwave induction
infrared sensor, automatic adjustment of intelligent power on rainy
days, extend rainy days.
- It used of alloy material as the main structure,with good rust
prevention,corrosion protection. A metal case and an IP66
waterproof level enable the device to operate in various kinds of
tough conditions.
- The wireless remote control setting device,adjustable lighting time
,lighting power ,automatic detection of battery voltage,read light
power parameters,a human body induction function,as long as people
go through when full power lighting,no automatic power down alf,
restore
- energy saving mode.
- Time control + light sensor control+ motion sensor control
- Motion and light sensor built in:solar street light goes on at dusk
at 20% brightness(Brightness adjustable). Can go from 20% power to
full brightness when motion is detected.
02 Specification of all in one solar led street light
| Par NO. Parameter | LY-ST30020PW |
| Battery | 18650 lithium battery 12V 20Ah |
| Beam angle | 150x65° |
| Pole diameter | 60mm |
| Light output | 20W |
| Luminous flux (lm) | 3200 |
| Solar panel | 25W /18V monocrystalline silicon |
| CRI | >70 |
| Chip Brand | LUXEON 5050 |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | MPPT Control+Motion Sensor |
| Installation height | 4~8M |
| Housing | All In One Die Casting Aluminum,Eesy to open and Installation |
| Optional | AC/DC Hybrid System |
| Certifications | CE/ROHS/IP66/IK09 |
03 Work Model of solar led street lighting
Solar panel charges in sunny daytime.Light works at night with the
power stored by battery
When People leaves 8-10M away, after set times, the light will dim
to set brightness
When people comes 8-10M near,the light will turn on with full
brightness

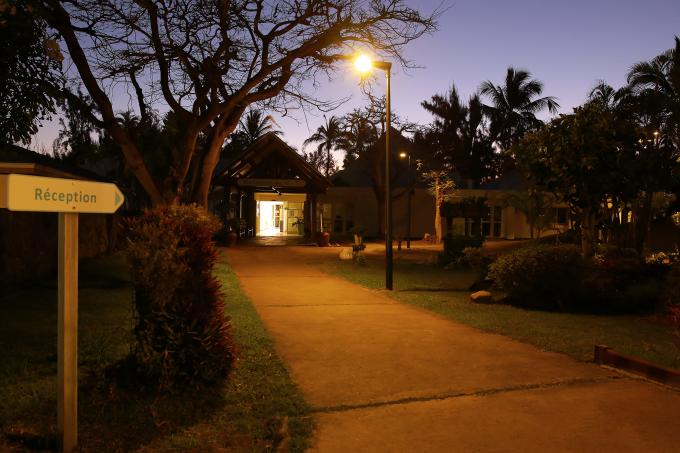

04 Application of high power led street light
Suitable for the street lighting; sidewalk lighting;roadway
lighting; fence lighting; pathway
lighting; campus lighting; park lighting; garden lighting;ramp
lighting;boat dock lighting; remote
area lighting;farm & ranch lighting.
05 Production of led street light
AC/DC Hybrid Solar Power System (Need for customization)
Features a DC detection function. If DC available, the system will
automatically
switch to lithium battery supply when the battery voltage rise to
the DC switching point;
the system will automatically switch to DC power supply when the
battery voltage falls
to the DC switching point; if DC powers off, the system will shut
off output when the
battery reaches the over-discharge point after continuous
discharging.
