Super bright led flood light 50W with 160lm/w high efficiency for
area lighting.
Outlook:
Application:
1. It is applicable to playground lighting ,warehouse lighting,
plaza lighting, tunnel lighting and so on.
2. New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
Features:
1. Adoption LEYOND exclusive Lens with light transmittance up to
98%.
2. Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3. There are 25°,60°, 90° ,150*65 deg beam angle options for the
Lens.
4. Scientifically-designed heat dissipater with much better cooling
effect.
5. High luminous efficiency, Whole lamp output light effiency
>160LM/W.
6. High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98,
UL compulsory certification.
7. For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime
will be reduced very fast, but for LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current, Over Voltage, Over Heat, Thunder
Protection.
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
9. The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
Performance Parameters:
Par NO Parameter | LY-ST23050PW | LY-ST23050NW | LY-ST23050WW |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | 50 | 50 | 50 |
| Luminous flux(lm) | 8000 | 76500 | 7500 |
| Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90°,150*65 | 25°,60°, 90°,150*65 | 25°,60°, 90°,150*65 |
| CRI | ＞75 |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| LED Driver | MEAN WELL ELG-75 / HLG-60H |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |

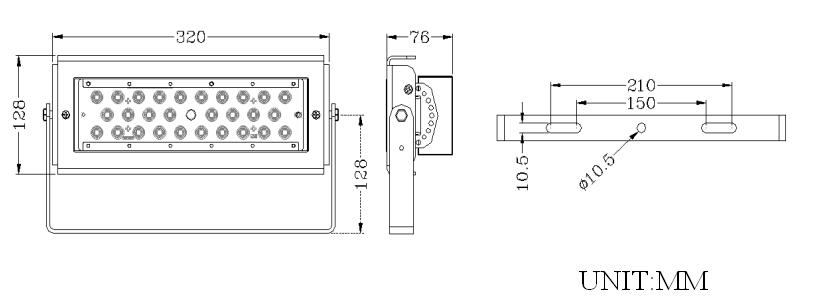

| Size(mm) | 320*128*76 | 320*128*76 | 320*128*76 |
| Net Weigh(kg) | 2.6 | 2.6 | 2.6 |
| Package Size(mm) | 246*390*135 | 246*390*135 | 246*390*135 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.2 | 3.2 | 3.2 |

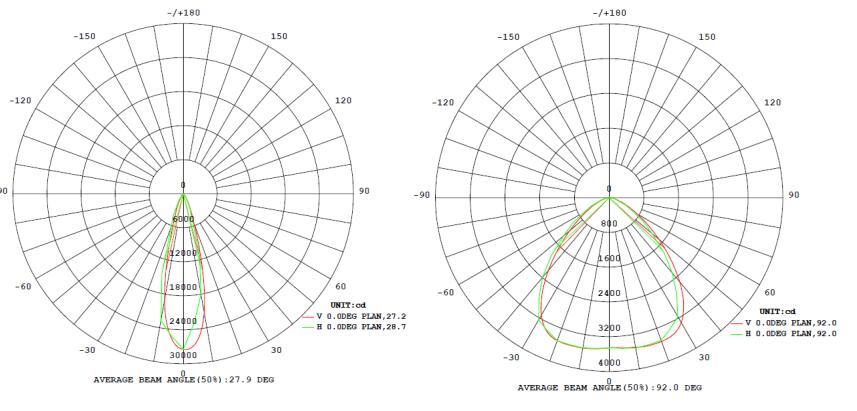

Distribution Curve:
