LED Outdoor flood light 100W for tennies court lighting fixture.

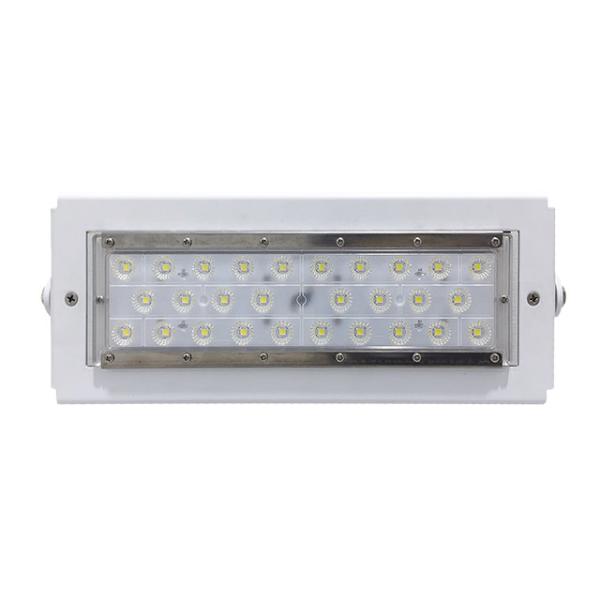

1. Outlook
2. Features:
1) Adoption LEYOND exclusive Lens with light transmittance up to
98%.
2) Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3) There are 25°,60°, 90° beam angle options for the Lens.
4) High luminous efficiency, Whole lamp output light effiency
>160LM/W.
5) High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98,
UL compulsory certification.
3. Application:
1) It is applicable to playground lighting ,warehouse lighting,
plaza lighting, tunnel lighting and so on.
2) New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
4. Specifications:
Par NO Parameter | LY-ST23050PW | LY-ST23050NW | LY-ST23050WW |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | 50 | 50 | 50 |
| Luminous flux(lm) | 8000 | 7600 | 6800 |
| Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90° | 25°,60°, 90° | 25°,60°, 90° |
| CRI | ＞75 |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| LED Driver | MEAN WELL ELG-75 / HLG-60H |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |

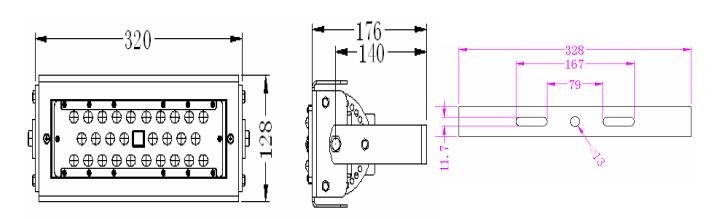

| Size(mm) | 320*128*76 | 320*128*76 | 320*128*76 |
| Net Weigh(kg) | 2.6 | 2.6 | 2.6 |
| Package Size(mm) | 246*390*135 | 246*390*135 | 246*390*135 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.2 | 3.2 | 3.2 |
5. Package
Inner box Size: 246mm×390mm×135mm
Outer box Size: 261mm×405mm×305mm (2 PCS LED Flood Light)
6. Project
Operation and Storage Condition:
1. Operation Ambient Temperature -40 to +50°C, Relative Humidity
20~90%
2. Input Voltage 100~240V AC, 50/60Hz
3. Storage Ambient Temperature -40 to +65°C, Relative Humidity
5~95%
4. Mounting Height : Suitable for 8~25m height
Warning:
1. Please handle the product with care when open the package.
2. Do Not Open the Light Engine
3. Do Not Soak the Floodlight into Water
4. Do Not Light up the System Without Grounding
5. Do Not Use Dimmer
6. If the new LED down light is found damaged, please keep the
original package and contact us.
7. In order to ensure the product work properly, please use the
power supply within indicating voltage range.
8. Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
9. 1-10V dimming need to be customized.
