IP66 Outdoor LED Stadium lights 100W with original LUXEON LEDs /
Mean well driver
1. Outlooking
2. Features
·Absolutely unique mold,make your lighting special and fantastic.
·Adoption LEYOND exclusive Lens with light transmittance up to 98%.
·Anti-glare and uniform light level to avoid any visual discomfort.
·There are 25°, 60°, 90° beam angle options for the Lens.
·High quality power supply, input voltage 85-305V. The power
efficiency is more than 90%, power factor greater than 0.98.
·High luminous efficiency, Whole lamp output light efficiency
>160LM/W.
·Duct type thermal design, reduce the weight of the light and
ensure good heat dissipation,
lower luminous decay, and also extend life span of the leds.
·Low energy consumption,matching high efficiency constant-current
driver, 60% energy saving;
with good resistance to over-current, over-voltage, lightning, high
temperature, which fully ensure long life span and high stability
of the products.
·Durable lights with long life span up to 50000 hours; No need
frequent replacements of lights and regular maintenance.
·Green environmental protection, no UV light and infrared
radiation, no mercury pollution.
·Nice appearance and non-fouling properties, Protection class IP66.
·Work without strobe, fast transient response；A wide range of
working voltage.
3. Specification
Par NO Parameter | LY-ST45080XX | LY-ST45100XX | LY-ST45120XX |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | 80 | 100 | 120 |
| Luminous flux(lm) | 13200 | 16000 | 18960 |
| Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90° | 25°,60°, 90° | 25°,60°, 90° |
| Current | 0.38A/220V | 0.48A/220V | 0.57A/220V |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| CRI | ＞75 |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP65 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |

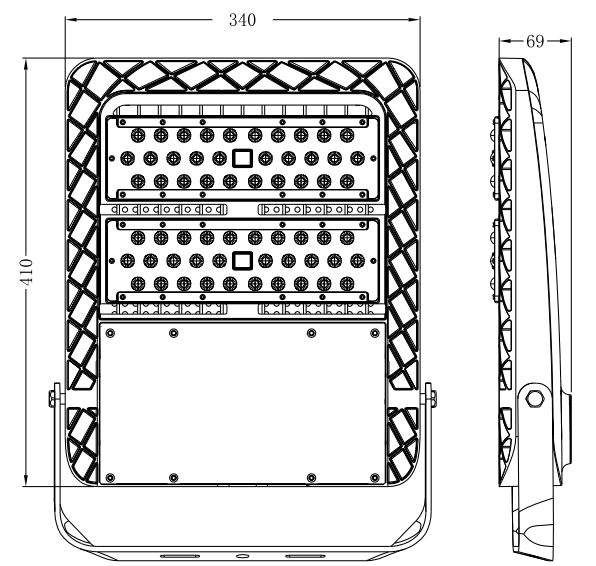

| Size(mm) | 470*340*69 | 470*340*69 | 470*340*69 |
| Net Weigh(kg) | 6.4 | 6.4 | 6.4 |
4. Pictures
5. Application
• It is applicable to playground lighting ,stadium lighting,plaza
lighting, and so on.
• New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
6. Distribution Curve
7. Operation and Storage Condition
Operation Ambient Temperature -30 to +50°C, Relative Humidity
20~90%
Input Voltage 90~305V AC, 50/60Hz
Storage Ambient Temperature -30 to +60°C, Relative Humidity 5~95%
Mounting Height : Suitable for 4~15m height
8. Package
Inner box Size: 500mm×370mm×100mm
Outer box Size: 520mm×385mm×240mm (2 PCS LED Stadium Light)
9. Warning
Do Not Use Other Devices for LED Stadium Light ,Installation Such
as Stabilizer,
Regulator …etc
Do Not Open the Light Engine
Do Not Soak the LED Stadium Light into Water
Do Not Light up the System Without Grounding
1-10V dimming need to be customized
