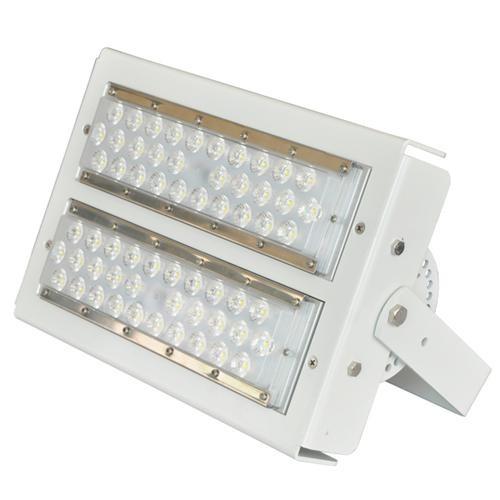

24/36/60/90degree Narrow Beam Outdoor LED Flood Lights , 300w Led
Flood Light With Aluminum / PC Materials
Features:
• Adoption LEYOND exclusive Lens with light transmittance up to
98%.
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• There are 24°, 36°,60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling
effect.
• High luminous efficiency, Whole lamp output light effiency
>130LM/W.
• High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
• For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime
will be reduced very fast, but for LEYOND LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current, Over Voltage, Over Heat, Thunder
Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions, eliminated the low color temperature of the
sodium lamp which cause the depressed mood, observers will feel
more comfortable.
Model | LY-ST23500PW |
Product Name | 500w Modular Led light |
Modules number | 10PC |
Power | 500w |
Input Voltage | AC90~305V 50/60Hz |
Input Current | 2.32A/220VAC |
Chip Brand | Bridgelux |
Led Qty | 300pcs |
Driver Brand | 2PCS* Meanwell HLG-240-36A |
Warranty | 5 Years |
Power factor | >0.99/115VAC
>0.98/230VAC |
Power efficiency | >90% |
Luminous flux | 60000lm |
Luminous efficiency | 120lm/W |
CRI | >70 |
CCT | 2700K-6500K |
Beam Angle | 24° 36° 60° 90°/160° |
Carton Size | 79×63×20cm |
Gross weight | 21KG |
IP Rating | IP65 |
Meterial | Aluminum +PC |
Certification | CE&ROHS |
Package:
It is applicable to Billboard lighting, playground lighting
,warehouse lighting, plaza lighting, tunnel lighting and so on.
New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +50°C, Relative Humidity
20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 5~12m height
Assembly and Installation
• Assembly-Electricity
• Blue : Neutral
• Brown : Line
• Yellow-Green : Ground
Package Carton
• Size: 725mm×480mm×170mm
• Net weight:18.5KG Gross weight:20.8KG
