Outdoor Waterproof IP66 50w dimmable led modular Flood lights for
industrial Parking lots light with 5 years warranty
1. Led Flood Lights Specifications:
 | Product Name | 50W Led Flood Light |
| POWER(W) | 50W |
| Chip Brand | LUXEON 5050 BRIDGELUX 5050 |
| Material | Aluminum Housing+PC Lens |
| LED Driver | MEAN WELL |
| Luminous efficiency(lm/w) | ＞160 |
| IP Rating / IK | IP66 / IK10 |
| Installation height(m) | 3-10m |
2.Flood Lights Features:
1) Adoption LEYOND exclusive Lens with light transmittance up to
98%.
2)Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3) There are 25°,60°, 90° beam angle options for the Lens.
4) Scientifically-designed heat dissipater with much better cooling
effect.
5) High luminous efficiency, Whole lamp output light effiency
>160LM/W.
6) High quality power supply, input voltage 100-240V. The power
efficiency is more than 90%,power factor greater than 0.98, UL compulsory certification.
7)For the traditional light source such as the High Pressure
Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for
LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be
influenced at all;Over Current,Over Voltage, Over Heat, Thunder Protection.
8) Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional
lamp,without harm to the human body.
9) The CCT of Warm white,Neutral white,Pure white to meet the needs
of different occasions,eliminated the low color temperature of the sodium lamp which cause
the depressed mood,observers will feel more comfortable.

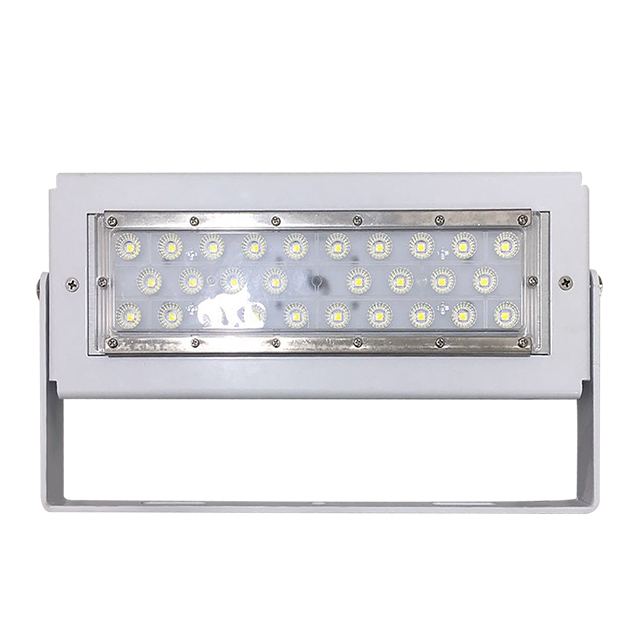

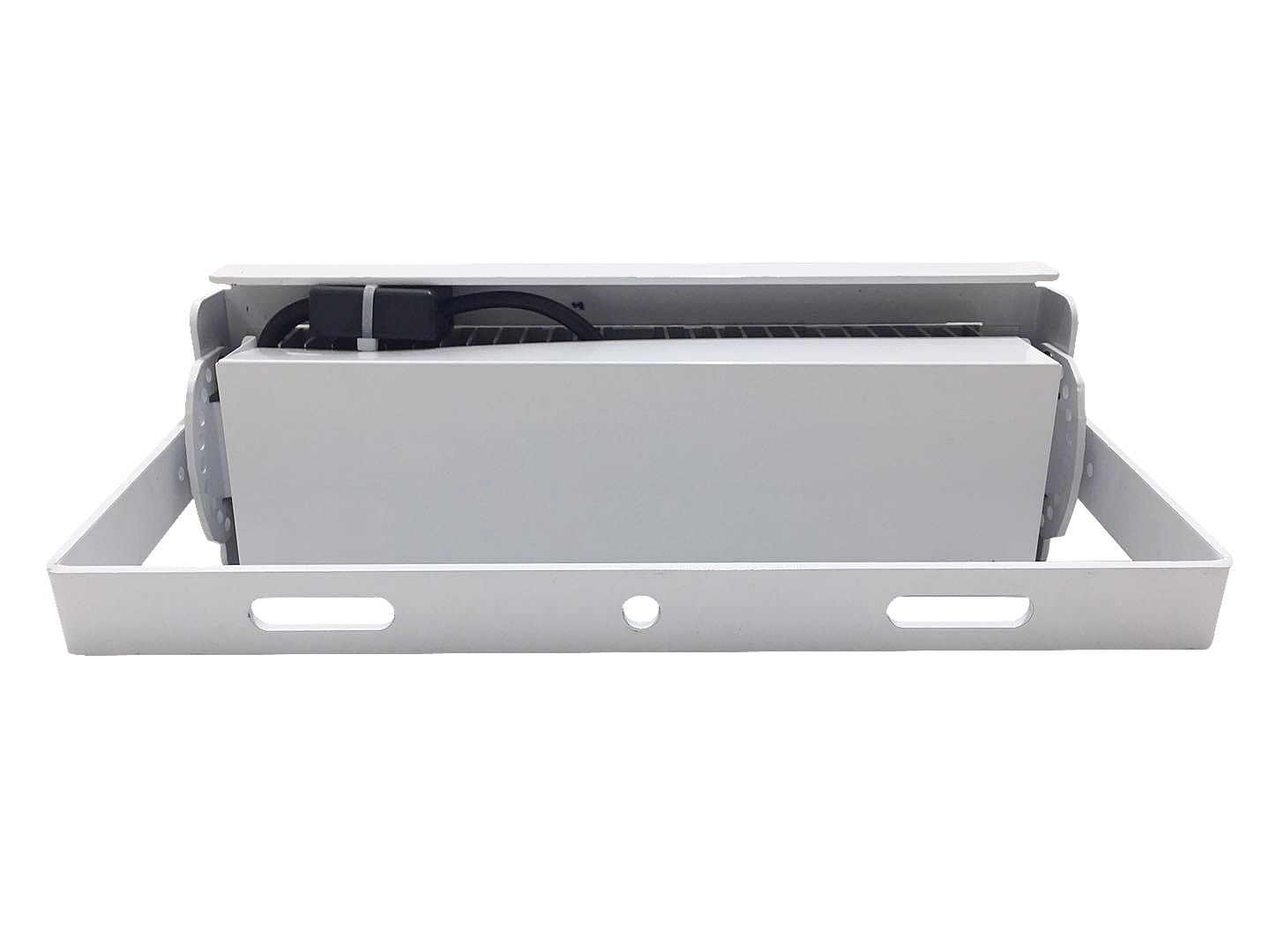

3. Outdoor Led Flood Light Pictures Details:

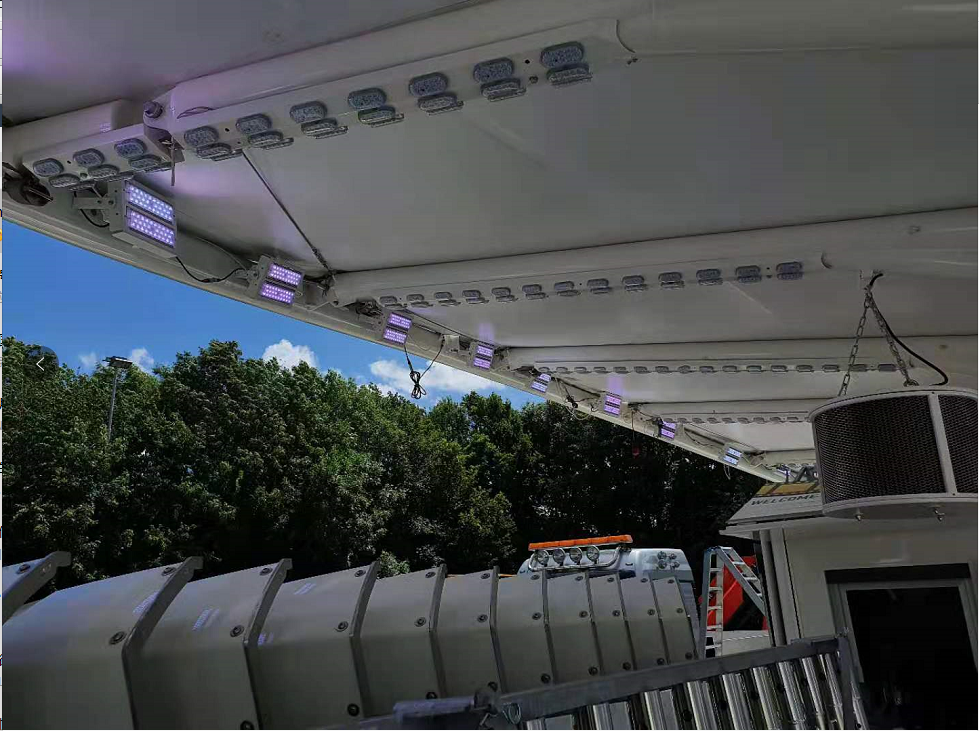

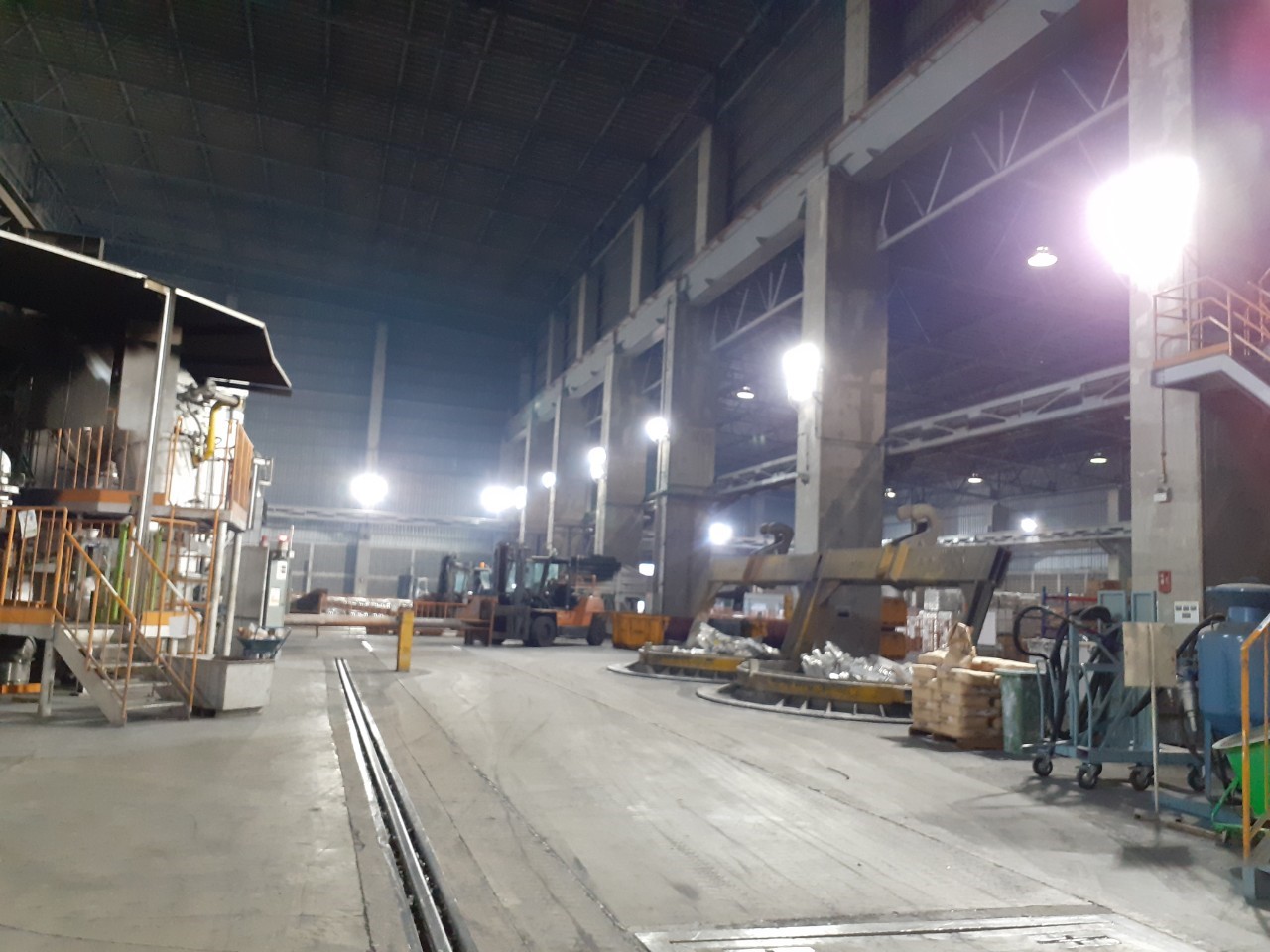

4. Modular Led Flood Light Application:
It is applicable to playground lighting ,warehouse lighting, plaza
lighting, tunnel lighting and so on.
New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
5. Warning
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
If the new LED down light is found damaged, please keep the
original package and
contact us.
In order to ensure the product work properly, please use the power
supply within indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
1-10V dimming need to be customized.

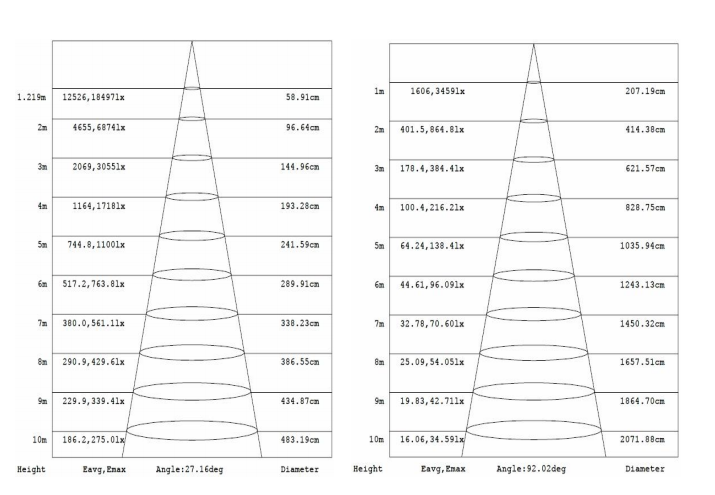

6. Distribution Curve:
7. Photometry
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when choosing LED light source. The higher, the
better. Besides, brand of LED chip, LED base and other materials
will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyond always treat the clients benefit as the
most important thing. So, we use the top brand material to produce
high quality product.
3. How to place an order with your company?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty
policy, please contact our sales representatives.
For more, pls feel free contact us, thanks in advance.
