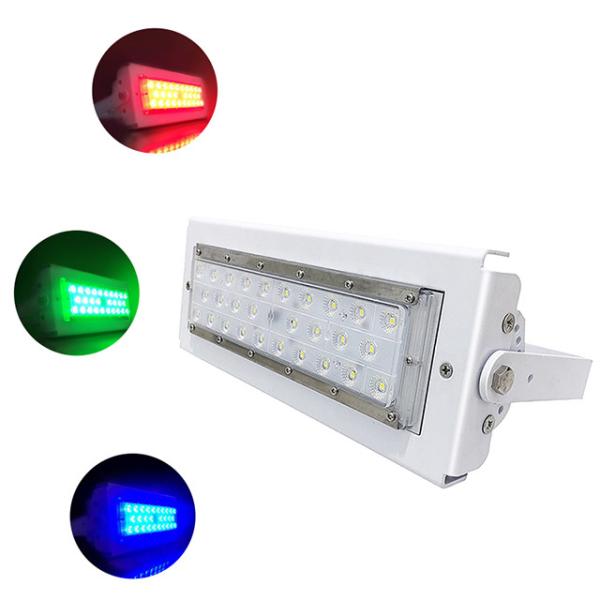

3. Features.
1) Adoption LEYOND exclusive Lens with light transmittance up to
98%.
2) Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3) There are 25°,60°, 90° beam angle options for the Lens.
4) Standard DMX512 input interface and a built-mode controller ,
can be realized in whole or segmented light change control,
especially, it can achieve water and complicated effects.
5) Master or Slave function, if set master, it can stead of the
external controller.
6) Reliable 350mA constant current driver designed to ensure
high-power LED lights for a stable job.
7) Superior ability to adapt to the environment, protection grade
IP66, can adapt to a variety of indoor and outdoor temperature and
humidity environment. The lamp base is aluminum alloy, solid
,anti-aging, anti-variant, long service life.
8) more than 16777 thousand kinds of colors can be realized output,
with good light efficiency, beautiful color and so on.
9) Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
4.Technical parameter
Electrical Specifications
| Model | Power | Input Voltage | LED Qty(pcs) | Beam Angle |
LY-ST23050RGB | 50W | AC100~240V | 28 | 25°/60°/90° |
Photometric Specifications
Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
RED | 620-630 nm | 1400 lm | DC13-17V | 1000mA |
GREEN | 520-530 nm | 2200 lm | DC21-25V | 1000mA |
BLUE | 460-465 nm | 560 lm | DC21-25V | 1000mA |
WHITE | R+G+B | 1500lm | DC13-25V | 1000mA |
Mechanical Specifications
| Model | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
| LY-ST23050RGB | 385X259X155MM | 4.5kg | 3.9kg | IP66 | Aluminum +PC |
5.Distribution Curve
6.Operation and Storage Condition
Operation Ambient Temperature -40 to +50°C, Relative Humidity
20~90%
Storage Ambient Temperature -40 to +60°C, Relative Humidity 5~95%
Mounting Height : Suitable for 3~10m height
7.Assembly and Installation
Ø Blue : Neutral
Ø Brown : Line
Ø Yellow-Green : Ground
8.Package
Carton Size: 385mm×259mm×155mm
Net weight:3.9KG
Gross weight:4.5KG
9.Notes
Please handle the product with care when open the package.
Do Not Open the Light Engine
Do Not Soak the Floodlight Modular into Water
If the new LED Flood light Modular is found damaged, please keep
the original package and contact us.
In order to ensure the product work properly, please use the power
supply within indicating voltage range.
Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
FAQ:
1. May I have a sample for the light please?
--- Sure,we welcome sample test.
2. How many watts does this light provide?
--- 40W 80W 120w, 150w, 200w,250w 500W 800W
3. Which shipping way do you have?
--- DHL, FEDEX, UPS and TNT are all support. By sea or by air can
be available based on your request.
4. How many years warranty will you provide?
--- 3-5 years warranty.
