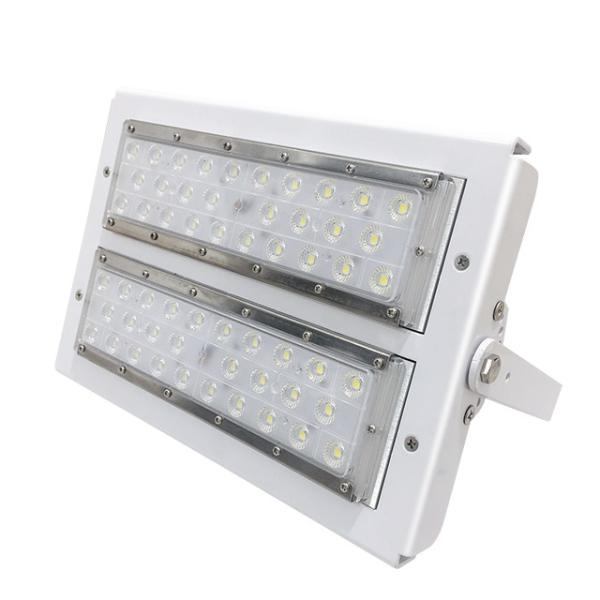

Outdoor LED Flood Light Fixtures LED flood light 100W with IP66
Waterpfoor rating.
1. Outlook:
2. Application:
1) It is applicable to playground lighting ,warehouse lighting, plaza
lighting, tunnel lighting and so on.
2) New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
3. Specification:
Par NO Parameter | LY-ST23100PW | LY-ST23100NW | LY-ST23100WW |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16000 | 14800 | 13500 |
| Chip Brand | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 | LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90° | 25°,60°, 90° | 25°,60°, 90° |
| CRI | ＞75 |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| LED Driver | MEAN WELL |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 320*222*76 | 320*222*76 | 320*222*76 |
| Net Weigh(kg) | 3.5 | 3.5 | 3.5 |
| Package Size(mm) | 326*390*135 | 326*390*135 | 326*390*135 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 4.1 | 4.1 | 4.1 |
4. Features:
1) Lumiles Luxeon 5050 chips, which make whole lamp
efficiency>160Lm/W;
2) Meanwell driver or Inventronics driver keep the top quality with
the whole lamp have 5 years warranty;
3) Aluminum housing, Impact Resistance, Shock-proof, Without
Ultraviolet (UV) and Infrared (IR) Radiation:
No filament and glass frames, avoid break of the traditional
lamp,without harm to the human body;
4) There are 25°,60°, 90° beam angle options for the Lens.
5. Operation and Storage Condition:
1) Operation Ambient Temperature -40 to +50°C, Relative Humidity
20~90%
2) Input Voltage 100~240V AC, 50/60Hz
3) Storage Ambient Temperature -40 to +65°C, Relative Humidity
5~95%
4) Mounting Height : Suitable for 5~12m height.
6. Package:
Inner box Size: 326mm×390mm×135mm
Outer box Size: 340mm×405mm×305mm (2 PCS LED Flood Light)
7. Projects for reference:
200W LED Flood light in Thailand.
150W LED Flood light in Philippines
FAQ:
1. Q: What's the led chip for the modular flood light?
A: Lumileds Luxeon 5050 chips.
2. Q: what's the driver brand?
A: Meanwell or Inventronics driver.
3. Q: what's the delivery time?
A: for sample,5-7 working days; for mass production order,10-12
working days.
4. Q: what's the product warranty?
A: 5 years warranty
5. Q: Can you provide OEM design?
A: Yes,OEM or ODM design is available
