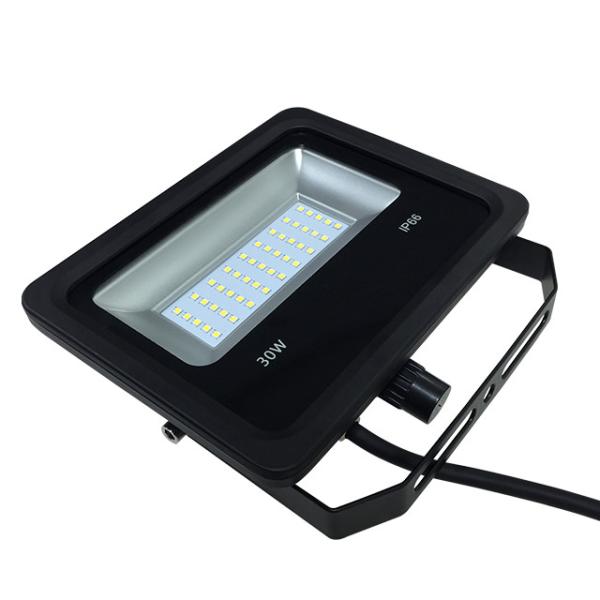

High efficiency 30 W 2800K - 3500K PIR LED floodlight with PIR
sensor
Features:
1. Adopting high power integrated LED, which ensures light is more
uniform,light efficiency is higher.
2. Using high transmittance tempered glass,transimittance93%
3. Complying with ROHS,absolutely not contain mercury or other
harmful substance
4. Lifespan of whole tube over 35000 hours
5. LED lamp turn on automatically when the body through the sensor
area.
6. Can identify day and night automatically, the ambient-light can
be selected to work at night automatically and stop in the daytime.
7. Time-delay can be adjusted vary to the place.
Technical Data:
Material | Die-cast Aluminum |
Input Voltage | AC100-240V 50/60Hz |
Power Efficiency | ≥85% |
Power factor | ≥0.95 |
Beam Angle | 120º |
LED Luminous efficiency | ≥110lm/W |
Color Temperature | Warm white WW 2800-3500K
Neutral white NW 4000-5000K
Pure white PW 5500-7000K |
Detection range | 120º |
Detection distance | 12m |
Time-delay | Min:5sec Max:6min±2min |
Ambient-light | <3Lux-2000Lux |
Installation | height:2m-4.5m |
Product Descriptions:
Model | Product Dimension(mm) | Power (W) | LED Luminous flux | Average Iilluminance | Facula Area | Net Weight |
LY-FL1010PW-P | L115xW85xH106 | 12 | 760-860lm | 1m=289lux
2M=72lux
3M=32lux | 1M=3.5x3.5M
2M=6.5x6.5M
3M=9.5x9.5M | 0.65KG |
LY-FL1020PW-P | L225xW230xH125 | 25 | 1700-1900lm | 2m=110lux
3M=50lux
4M=30lux | 2M=3.5x3.5M
3M=6.5x6.5M
4M=9.5x9.5M | 2.13KG |
LY-FL1030PW-P | L225xW230xH125 | 35 | 2550-2850lm | 2m=155lux
3M=75lux
4M=45lux | 2M=3.5x3.5M
3M=6.5x6.5M
4M=9.5x9.5M | 2.14KG |
LY-FL1050PW-P | L285xW270xH135 | 55 | 4250-4750lm | 4m=80lux
6M=35lux
8M=18lux | 4M=9x9M
6M=14x14M
8M=19x19M | 2.98KG |
Technical Data:
Par NO Parameter | LY-FL36010PW | LY-FL36010WW | LY-FL36010NW |
| Input voltage | AC100V～240V 50/60HZ |
| System consumption(W) | ≤10 | ≤10 | ≤10 |
| Light Fixture Luminance (lm) | 1150 | 1030 | 1120 |
| LED type of COB | LUXEON 3030 | LUXEON 3030 | LUXEON 3030 |
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞70 | ＞70 | ＞70 |
| Color Temperature(CREE) | 5000-5700k | 2700-3200k | 4000-4500k |
| Material | Aluminum+Glass |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| LED QTY (pcs) | 20 | 20 | 20 |
| Floodlight Size(mm) | 143X141X37 | 143X141X37 | 143X141X37 |
| NET Weight(KG) | 0.6 | 0.6 | 0.6 |
Package:
- 1 Set = 167mm X 60mm X 167mm 0.85KG
- 1 Carton=20Set Size : 355mm X 330mm X 355mm 13.3KG
Installation:
• The entire series of LED flood light are designed with wide range
voltage, the voltage range is 85~264 volts, the frequency is
50/60Hz.
• Installation tool: A adjustable wrench group.
Installation Steps:
• 1.Tighten Axle Screw, and Locate Screw
• 2.Connecting the power line of LED Flood Light to the power
supplier ,finish the installation procedure.
The installation notices
• 1.No necessary using other devices for LED Flood light
installation such as stabilizer, regulator and so on.
• 2.Opening the light and lifting the buckle is unallowable. Soaking
in the water is unallowable.
Warning:
• Do Not Use Other Devices for LED Floodlight Installation Such as
Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
Applications:
Suitable for workshop, factory, garden, road and other automatic
control occasion.
