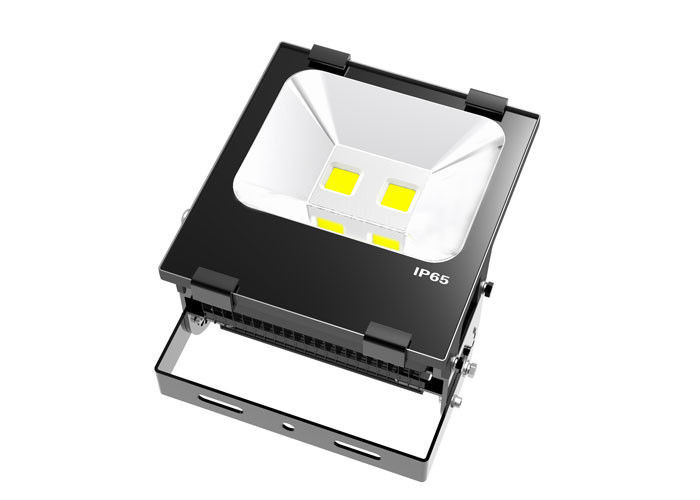

| Product | Factory Price 200W LED flood light, CE ROHS,UL |
| Item | LY-FL 10200XX-BB /WW-BB |
| Power | 200W 20000lm |
| Voltage | AC100-240V / 50-60HZ |
| PF | >0.95 THD<10% |
| Light Source | Bridgelux 45mil/ Epistar 35mil |
| Lumens | >90LM/W |
| Color Temp | Cool white 6000-6500k Netural white 4000-4500k Warm white 2800-3300k |
| Working Voltage | AC 100-240V, 50-60 HZ |
| Beam Angle | 120° |
| CRI | >70 Ra |
| Cable | 1m PVC cable/ 3*1sqm GB standard Cable and Customered Plug |
| Dimensioin | 315*310*187mm |
| Material | High quality ASA Black/ White housing |
Product Features
- Full waterproof design
- High transmittance empered glass,transimittan 93%
- The radiating area 620cm²
- Multi-Chip on lead frame,single module LED package design
- System design integrating power supply,LED light engine ,and heat
sink
- Over Current,Over Voltage,Over Heat,Thunder Protection
- Choice of correlated color temperatures
- Long lifespan for LED 50,000 hrs
- Complying with CE,ROHS, No strobing during working, Fast response
(no delay) , No mercury
vapour ,No radiation,No UV,No damage with frequency switching
- IP Rating: IP65
- Power supply direct touch the radiator,in light weight
Application area
Replacing traditional High Pressure Sodium lamp or metal halide
lamp.
Widely used for advertise billboard,exterior wall of hotel and
related landscape lighting.
Product Dimensions
Attentions
1 All dimension units are millimeters.
2 All dimension tolerance is ±1mm unless otherwise noted.
Product Specification
Input voltage: AC85V~265V
Freqency range: 50HZ~60HZ
Tatal harmouic distortion: ≤9%
Power facor: ≥0.9
Power efficiency: >85%
Sysem consumption: 10.5
Polar Diagram of Luminance
ISOLUX CURVE
1.Factory price, large monthly output
2. 3 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your
much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
