50 W 5050 Chips 180lm / W Industrial Led Flood Lights High
Efficiency 5 Years Warranty
Features:
High Brightness Flood Modular 5050 Series 60°/90°
·High luminous efficiency,30W Luminous flux5100lm; Whole lamp output light efficiency >170LM/W.
·Unique second-time light distribution, no light pollution,no glare,
no flickering.
· Modular structure making the lamp more easier and faster to be
designed ,easy to do replacement and maintaining.A variety of
combinations can multiply increase the brightness and illumination.
· Modular concept, piece combinations as your require. Can satisfy
any number of lanes and width combinations. With IP66 Protection,
adapt to any weather conditions.
· Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: Nofilament and glass frames, avoid break of the traditional lamp,without harm to the human body.
·The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the
low color temperature of the sodium lamp which cause the depressed
mood.
·CHEM module design adopts the professional optical design of
free-curve- surface, fully uses the features that LED light in
directionally to improve the utilization of LED maximumly under
offered a space-saving of light efficiency,and makes shines more
than 80% on the road,and avoids light pollution maximumly caused by
street lights.
Specifications:
| CCT(K) | Wattage | CRI | Voltage DC | Current DC | Luminous
Efficiency | Luminous
flux |
|---|
| 2800-3000 | 30W | Ra≥70 | 42-45V | 700mA | 130lm/W | 3900lm |
| 40W | 900mA | 155lm/W | 4800lm |
| 45W | 1000mA | 151lm/W | 5265lm |
| 4000-4500 | 30W | Ra≥70 | 42-45V | 700mA | 168lm/W | 4050lm |
| 40W | 900mA | 160lm/W | 5040lm |
| 45W | 1000mA | 156lm/W | 5490lm |
| 5000-5500 | 30W | Ra≥70 | 42-45V | 700mA | 172lm/W | 4200lm |
| 40W | 900mA | 163lm/W | 6520lm |
| 45W | 1000mA | 160lm/W | 7200lm |
| 6000-6500 | 30W | Ra≥70 | 42-45V | 700mA | 176lm/W | 5280lm |
| 40W | 900mA | 167lm/W | 6680lm |
| 45W | 1000mA | 162lm/W | 7290lm |
| Product Dimension | 300*78*45MM |
|---|
| IP Rating | IP66 |
|---|
| Working Life | 50000H |
|---|
| Working Temperature | -30℃ ~ +50℃ |
|---|
| Storage Temperature | -10℃ ~ +85℃ |
|---|
| Working Humidity | 10%~90% |
|---|
| Beam Angle | 25°/ 60°/ 90° |
|---|
Outlook:

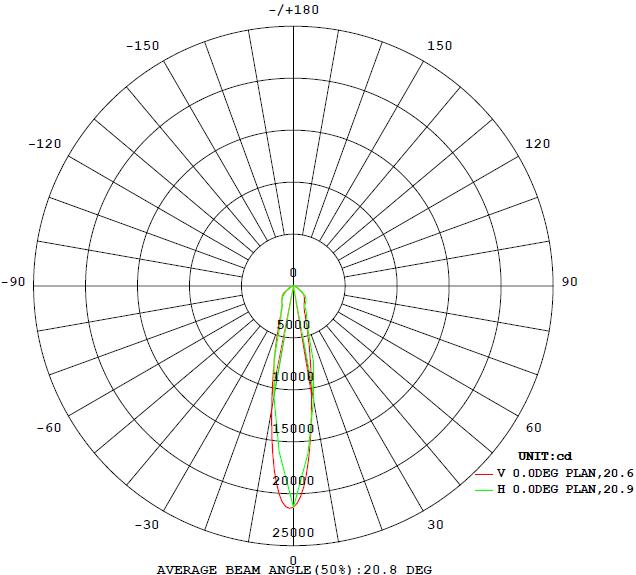

Photometry (Polar Diagram of Luminance)

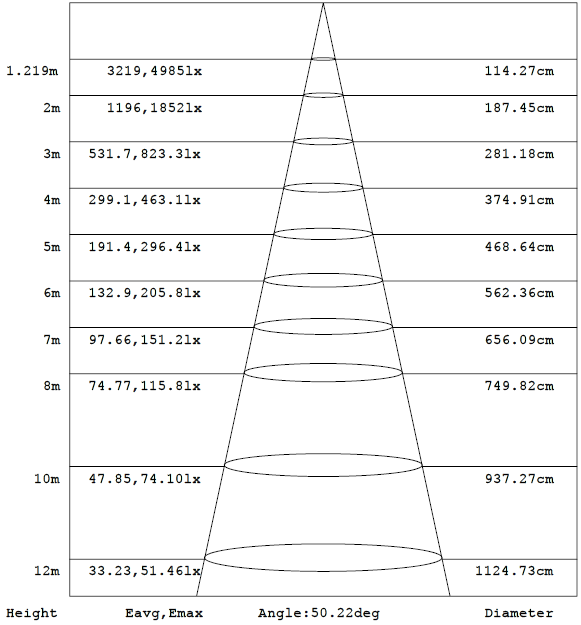

Photometry(AAI Figure)
90DEG
Package:
·1 Inner Carton = 2 Set Weight:1.3KG
·1 Outer Carton= 40 Set Weight:27.0KG
·Inner Carton Size : 306mm X 83mm X 67mm
·Outer Carton Size : 365mm X 322mm X 354mm
Assembly and Installation
Assembly-Electricity
The entire series of LED CHEM Flood Light Modular voltage range is
DC42~45 volts.
All LEDs are in series connecting, considering different using conditions and places in
the applications, please match with a constant current driver to
drive the lamp.
Remark
1,The led module adopt special techniques to keep enough light
efficiency, please do not open the light engine ,otherwise there
won’t have repairing guarantee.
2,When customers in the process of matching the power supply,please
match with the surge protector to ensure the safety.
3,The radiator has its own design peak, please do not exceed the
maximum use of current so that ensure the light efficiency and
lumen.
4,All LEDs are in series connecting, considering different using
conditions and places in the applications, please match with a
constant current driver to drive the lamp .
Applications:
·Applicable to all types of road lighting: expressway, trunk road,
main road, large public buildings or commercial center road,
secondary road, branch, residential roads and sidewalks, and can
also be used for general building, square, freight yard, landscape
and other places of lighting.
·New Installation or Replace the traditional High Pressure Sodium
Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps.
Etc.
