IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

Shenzhen Leyond Lighting Co.,Ltd.
Contact Now
    Buy cheap IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle from wholesalers

    Buy cheap IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle from wholesalers
    • Buy cheap IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle from wholesalers
    • Buy cheap IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle from wholesalers
    • Buy cheap IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle from wholesalers
    • Buy cheap IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle from wholesalers

    IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

    Ask Lasest Price
    Brand Name : leyond
    Model Number : LY-FL36100XX
    Certification : CE,ROSH,ISO9001:2008
    Price : Negotiable
    Payment Terms : T/T, Western Union or Paypal
    Supply Ability : 6000pcs/month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle

    IP66 Waterproof Outside Projector High Power LED Flood Light 100W With 120° Beam Angle
    Features:
    1. Multi-Chip on Lead Frame, Single Module LED Package Design
    2. System Design Integrating Power Supply, LED Light Engine, and Heat Sink
    3. Over Current, Over Voltage, Over Heat, Thunder Protection
    4. Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
    5. Long lifespan for LED 50,000 hrs
    6. IP Rating: IP65.
    7.100% Recycle, No Pollution, and UV, IR
    100W LED Flood Light technical data:

    ModelLY-FL36100PW
    Input Voltage100-240V AC 50/60Hz
    Power factor≥0.95
    Power Efficiency≥85%
    LED Power100W
    LED Fixture Power117W
    LED Luminous efficiency≥120lm/W
    LED luminous flux1200lm

    Average Iilluminance
    Facula Area

    6M=39lux
    8M=25lux
    10M=16lux
    6M=10x10M
    8M=14x14M
    10M=17x17M

    Beam Angle120º
    CRIRa>70
    Color TemperatureWarm white WW 2700-3200K
    Neutral white NW 4000-4500K
    Pure white PW 5000-6000K
    R/G/B/Other optional
    Operatinal conditionTemperature:-40℃~60℃
    Humidity:10%-90%RH
    Product Dimension(mm)L393xW285xH110
    N.W

    4.5KG





























    Photometry

    Operation and Storage Condition
    Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
    Input Voltage 100~240V AC, 50/60Hz
    Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
    Mounting Height : Suitable for 8~10m heigh
    Specifications:


    Item


    LY-FL36100XX

    Keyword


    100w led flood light

    Lamp Lumen


    >20000lm

    LED Brand


    Lumileds SMD 3030 LEDs

    LED Driver


    Meanwell CLG

    Warranty


    3 years

    Input Voltage


    AC100-240V, 50-60Hz

    Power Factor


    >0.9


    Certificate
    LED Lighting Certificated with CE
    The Whole Floodlight Certificated with CE



    Advantages:

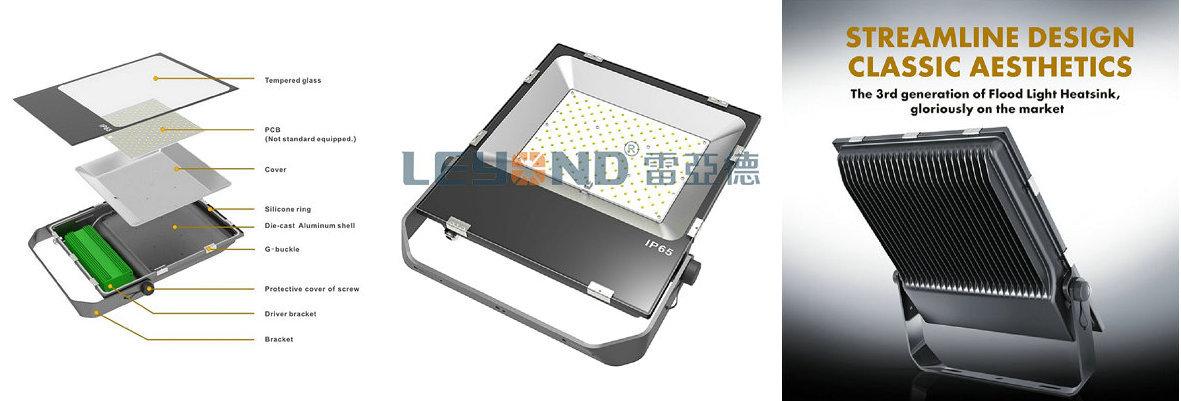

    • Integrative design for heat sink and housing,The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation.​
    • The surface is passed through anodic oxidation treatment.Its structure is compact and beautiful. It can meet the requirement of IP65. It has good capacity like antisepticising,waterproofing, and dust Prevention.
    • Aluminium alloy diecast baking varnish heat sink, clear temprered glass, ensures good heat dissipation.
    • Use toughened glass and the light transmittance is about 93%.
    • VDE/UL listed rubber cable with cold-pressed terminal.
    • Safe and easy for installation and maintenance.
    • High heat conductivity,low luminous decay,pure light color and no ghosting.
    • NO UV and near-IR radiation in the light beam

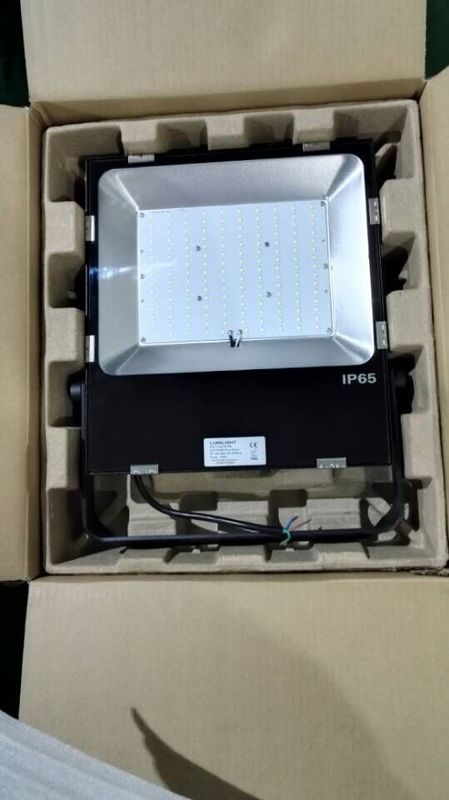

    Packing
