    160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor

    Ask Lasest Price
    Brand Name : Leyond
    Model Number : LY-ST23160XX
    Certification : CE,ROSH,ISO9001:2008
    Price : Negotiate
    Payment Terms : T/T, Western Union or Paypal
    Supply Ability : 6000pcs/month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor

    160W Energy Saving Brightest IP66 Waterproof High Power LED Flood Light For Outdoor



    120W,160W,200W LED Flood Light Technical Data:

    Input Voltage100-240V AC 50/60Hz
    Power factor≥0.95
    Power Efficiency≥85%
    LED Power120W
    160W
    200W
    LED Luminous efficiency≥160lm/W
    CRIRa>70
    Beam Angle25° 60º 90° 150*65°
    Color TemperatureWarm white WW 2700-3000K
    Neutral white NW 4000-5000K
    Pure white PW 5000-6500K
    R/G/B/Other optional
    Operatinal conditionTemperature:-30℃~60℃
    Humidity:10%-90%RH
    ModelProduct Dimension(mm)

    Power

    (W)

    LED

    luminous flux

    N.W
    LY-ST24120PWL320xW310xH76120W19800lm4.5KG
    LY-ST23160PWL320xW410xH76160W26400lm12KG
    LY-ST23200PWL320xW410xH76200W00lm12KG

    Application:

    1. Projector / Spotlight/ Tunnel Lighting

    2. Pathway Lighting / Park Lighting

    3. Garden Lighting/Backyard Lighting



    Specification of Modular Led Flood light

    Par NO

    Parameter

    LY-ST23160PWLY-ST23160NWLY-ST23160WW
    Input voltageAC100V~240V 50/60HZ

    System

    consumption(W)

    160160160
    Luminous flux(lm)264002640026400
    Chip Brand

    LUXEON 5050

    BRIDGELUX 5050

    LUXEON 5050

    BRIDGELUX 5050

    LUXEON 5050

    BRIDGELUX 5050

    Beam Angle

    25°60°90°

    150x70°

    25°60°90°

    150x70°

    25°60°90°

    150x70°

    CRI>75
    Color TemperatureWW:2700-3200K / NW:4000-4500K / PW:5000-6500K
    LED DriverMEAN WELL ELG-200 / HLG-240H

    Luminous

    efficiency(lm/w)

    >160
    DimmableYES&NOYES&NOYES&NO
    Net Weigh(kg)5.65.65.6
    Package Quantity(Pcs)111
    Gross Weigh(kg)6.26.26.2

    Outlook of Led FloodLights


    Features:

    1)Adoption LEYOND exclusive Lens with light transmittance up to 98%.LUXEON 5050 is a multi-die package LED that provides high luminance from a single package to enable cost effective, single optic
    and directional fixture designs. LUXEON 5050 uses an industry standard 5050 surface mount package with smallest round Light Emitting Surface (LES). LUXEON 5050 comes in 70CRI, 80CRI and 90CRI with a wide range of CCTs, and offers hot-color targeting to ensure that the LEDs are within color target at application conditions of 85°C


    2.Constant Voltage + Constant Current mode output Metal housing design with functional Ground Built-in active PFC function No load/ Standby power consumption <0.5W IP67 / IP65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI; Auxiliary DC output Typical lifetime>50000 hours 5 years warranty


    3.The moulds of lens are opened and designed by ourselves and we’ve made big progress on the technological process and achievedgoals to be small light decay, high illumination and good heat dissipation. The light transmittance of our lamp is 98%, the luminous efficiency of the whole lamp is more than 160 LM/W and the light decay for more than 10000 hours is less than 8%.


    4)For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.


    5)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.


    6)The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

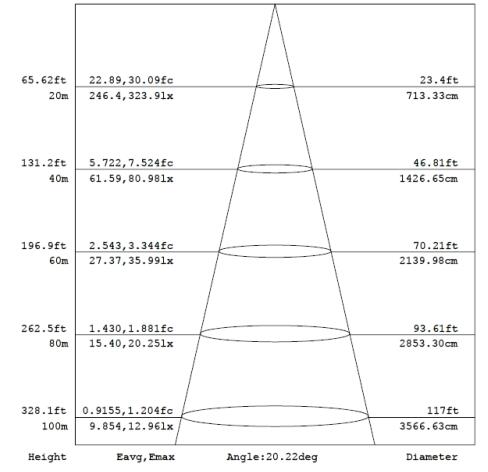

    Distribution Curve of Module Led Flood Light

    Operation and Storage Condition:

    1.Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%

    2. Input Voltage 85-265V AC, 50/60Hz

    3. Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

    4. Mounting Height : Suitable for 8~10m height

    Certificate:

    • The Whole Spotlight Certificated with ROHS
    • The Whole Spotlight Certificated with CE

    Package:
