Outdoor Lighting 80W Waterproof LED Flood Lights With Bridgelux
Chip CE RoHS Certificate
Quick Details
| Optical |
| LED Luminance | >8000lm |
| Light Fixture Luminance | >7500lm |
| CCT | 6500±500K |
| CRI | >80 |
| LED | Flip 3535 chips |
| Electrical |
| Input Voltage | 100~240V AC, 50/60Hz |
| Power Consumption | ≦85W (of Total System) |
| Power Factor | ≧0.9 |
| Power Efficiency | >90% |
| EMI Grade | EMI Class A |
| Protection | Over Current/Over Voltage/Thunder Protection |
| Luminance Efficacy | >100lm/W |
| Mechanical and System |
| IP Level | IP65 |
| Dimension | 120 X 220 X 45 mm |
| Net Weight | 1.5 Kg |
| Heat Solution | Convection
|
Applications:
• Projector / Floodlight
• Tunnel Lighting / Pathway Lighting / Park Lighting
• Signboard Lighting
Features:
Integrative design for heat sink and housing,The LED is closely
connected to the surface. The heat from the LED is removed through
the heat dissipation wing and also by air ventilation.
The surface is passed through anodic oxidation treatment.Its
structure is compact and beautiful. It can meet the requirement of
IP65. It has good capacity like antisepticising,waterproofing, and
dust Prevention.
Aluminium alloy diecast baking varnish heat sink, clear temprered
glass, ensures good heat dissipation.
Use toughened glass and the light transmittance is about 93%.
VDE/UL listed rubber cable with cold-pressed terminal.
Safe and easy for installation and maintenance.
High heat conductivity,low luminous decay,pure light color and no
ghosting.
NO UV and near-IR radiation in the light beam.
Very low energy consumption,Lower thermal output.
Durable and long life(50000 hours).
Outlook:
Photometry:
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity
20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 3~5m height
Our Services:
1.Factory price, large monthly output
2. 3 years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your
much time
4.Timely delivery, let you win biggest markets advantage
5.Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
Package:
• 1 Set = 250mm X 210mm X 155mm 3.8KG

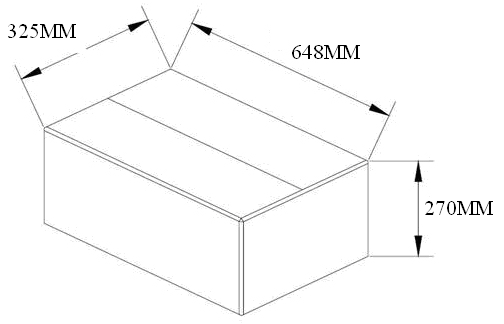

• 1 Carton=6Set Size : 648mm X 325mm X 270mm
Installation:
• The entire series of LED flood light are designed with wide range
voltage, the voltage range is 85~264 volts, the frequency is
50/60Hz.
• Installation tool: A adjustable wrench group.
Installation Steps:
• 1.Tighten Axle Screw, and Locate Screw
• 2.Connecting the power line of LED Flood Light to the power
supplier ,finish the installation procedure.
The installation notices
• 1.No necessary using other devices for LED Flood light
installation such as stabilizer, regulator and so on.
• 2.Opening the light and lifting the buckle is unallowable.
Soaking in the water is unallowable.
Warning:
• Do Not Use Other Devices for LED Floodlight Installation Such as
Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
