3 years warranty COB LED Flood Lighting Outdoor IP66 10W 30W 50W
100W ultra slim led floodlight
1. Why choose Slim Line Flood Light ?
A. High brightness 110lm/w
B. A new competitive price with a cost save 20% than traditional
flood light
C. Lighter body will save more space and shipping cost
Flipchip COB, much brightness and stable working, The flipchip LED advantage:
1) Electrodes on the flip chip directly contact the ceramic
substrate, and omits the need for sapphire substrate used in heat
dissipation.Therefore, the chip can be driven by high current.
2) Optical design is made easier, but flip chip sizes are smaller.
3) Improvements in heat dissipation, which in turn extends chip
lifetime.
4) The wire-bonding free (without wire-bond) flip chip can reduce
defect risks during packaging and operations.
5) Flip chip has laid the foundation for future packaging
developments.
Features:
1. Uniquely designed with plug & play PIR socket . The slim body
with proffesional designed heat sink make this products very
porpular in the market
2. Multi-Chip on Lead Frame , Single Module LED Package Design
3. System Design Integrating Power Supply , LED Light Engine , and
Heat Sink
4. Over Current , Over Voltage , Over Heat , Thunder Protection
5. Choice of Correlated Color Temperatures ( Specification
Re-Defined Accordingly )
6. Long lifespan for LED 50 , 000 hrs
7. 100% Recycle , No Pollution , and UV , IR
10W Slim Line LED Flood Light Technical Data:
Optical
|
LED Luminance
| >900lm |
Light Fixture Luminance
| >700lm |
CCT
| 6500±500K |
CRI
| >70 |
LED Package
| Multi-chip on Lead Frame,Single Module |
Electrical
|
Input Voltage
| 100~240V AC, 50/60Hz |
| Power Consumption | ≦10.5W (of Total System) |
| Power Factor | ≧0.9 |
Power Efficiency
| >89% |
EMI Grade
| EMI Class B |
Protection
| Over Current/Over Voltage/Thunder Protection |
Luminance Efficacy
| >70lm/W |
Mechanical and System
|
IP Level
| IP65 |
Dimension
| 120 X 220 X 45 mm |
Net Weight
| 0.5 Kg |
Heat Solution
| Convection |

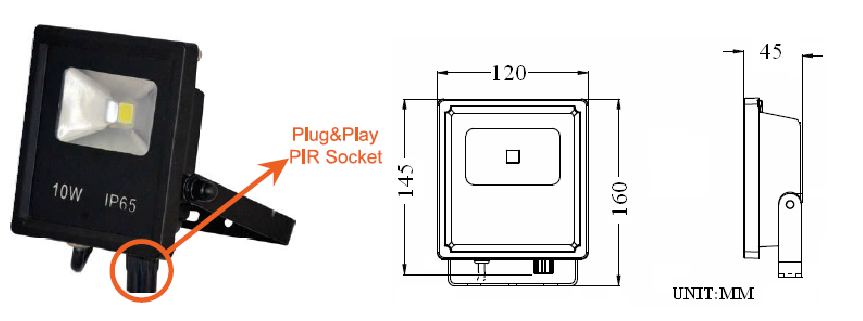

Outlook:

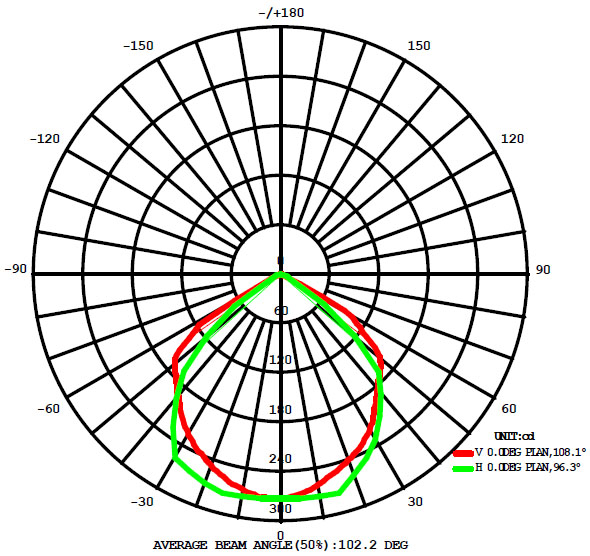

Photometry:
Application:
Projector / Floodlight
Tunnel Lighting / Pathway Lighting / Park Lighting
Signboard Lighting
Package:
1 Set = 250mm X 210mm X 155mm 0.6KG
1 Carton=6Set Size : 648mm X 325mm X 270mm
Installation:
The entire series of LED flood light are designed with wide range
voltage , the voltage range is 85~264 volts , the frequency is 50 /
60Hz
Installation tool : A adjustable wrench group
Installation Steps:
1. Tighten Axle Screw, and Locate Screw
2 . Connecting the power line of LED Flood Light to the power
supplier ,finish the installation procedure
The installation notices:
1. No necessary using other devices for LED Flood light
installation such as stabilizer , regulator and so on
2. Opening the light and lifting the buckle is unallowable .
Soaking in the water is unallowable
FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable
and affordable price.
2. How many years warratny?
---5 years warranty, 50000 hours lifespan.
3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in
advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before
shipping.
4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
---Yes.
6. I don’t know how many Led High Bay Light should I use, can you
advise?
---Yes, we can help you do the lighting design using software
Dialux, IES file is available if you have the design team.
Trade terms:
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
Our service:
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires
in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area , ideas of design and all your
private information
