Ip66 Waterproof LED Flood Lights outdoor AC110V 30W LED Security
Flood Lights
1, Features:
- Full waterproof design
- High transmittance empered glass,transimittan 93%
- The radiating area 4260cm²
- Multi-Chip on lead frame,single module LED package design
- System design integrating power supply,LED light engine ,and heat
sink
- Over Current,Over Voltage,Over Heat,Thunder Protection
- Choice of correlated color temperatures
- Long lifespan for LED 50,000 hrs
- Complying with CE,ROHS, No strobing during working, Fast response
(no delay) , No
- mercury vapour ,No radiation,No UV,No damage with frequency
switching
- IP Rating: IP65
- Power supply direct touch the radiator,in light weight
2,Application area:
Widely used in shopping mall, exhibition hall, parking lot,
playground, gymnasium, billboards, park, sculpture, national green
lighting project,
building facade and public corridor, stair corridor and other
indoor and outdoor lighting.

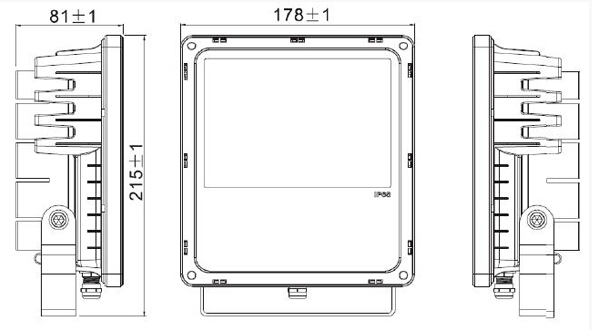

3,Product Dimensions:
Attentions:
1,All dimension units are millimeters.
2,All dimension tolerance is ±1mm unless otherwise noted.
4,Product Specification:
| Power: | 30w |
| Material: | Aluminum Alloy/PC |
| Chip: | Epistar |
| Light efficiency: | 80-90Lm/w |
| Color Temperature: | 2700 -3000K 4000-4500K 5000-6000K |
| CRI: | Ra70 |
| Beam Angle: | 120 degree |
| PF: | >0.95 |
| Working Life: | ≥ 50000 hrs |
| Warranty: | 3 years |
| Dimensions |
| Finishing Color: | Black |
| Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
| SHAPE: | Rectangle |
| Package: | 2pcs/carton |
| Work Environment |
| Input Voltage: | AC100-240V/50-60Hz |
| Operating Temperature: | -40~ + 60°C |
| Application |
| Application: | Projector / Floodlight
Tunnel Lighting / Pathway Lighting / Park Lighting
Signboard Lighting |
| Recommend mounting height: | 3-6m |
Assembly and Installation:
6,Polar Diagram of Luminance:

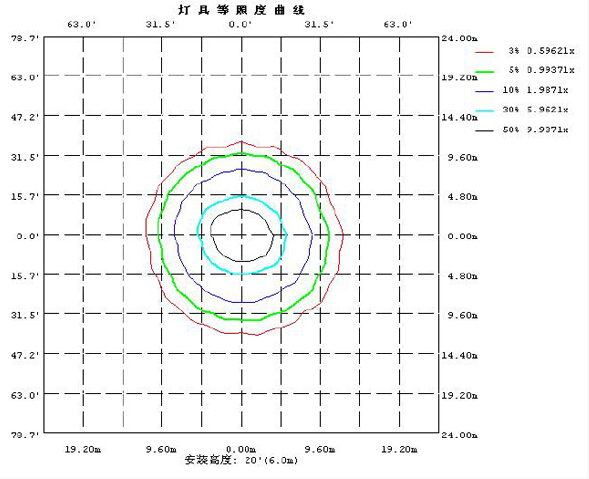

7,ISOLUX CURVE:
Attentions:
All data is under 25℃,unless otherwise specified
8,Package:
1 Set = 200mm×135mm×40mm 0.5KG
1 Carton=36Set Size : 425mm×415mm×255mm 19KG
9,Installation:
Installation tool: A adjustable wrench group.
Installation Steps:
① Tighten Axle Screw, and Locate Screw
② Connecting the power line of LED Flood Light to the power
supplier ,finish the installation procedure
The installation notices:
① No necessary using other devices for LED Flood light installation
such as stabilizer, regulator and so on
② Opening the light and lifting the buckle is unallowable. Soaking
in the water is unallowable
10,Warning:
- Please handle the product with care when open the package.
- Do Not Open the Light Engine.
- Do Not Soak the Floodlight into Water.
- Do Not Light up the System Without Grounding.
- Do Not Use Dimmer.
- If the new LED down light is found damaged, please keep the
original package and contact us.
- In order to ensure the product work properly, please use the power
supply within indicating voltage range.
- Whatever the case, lamps can not be covered by heat resistant
gasket or similar materials.
