10W IP65 Waterproof 2700K - 6500K LED Outside Flood Lights For
Walls / Stadium
1, Features:
Full waterproof design
High transmittance empered glass,transimittan 93%
The radiating area 4260cm²
Multi-Chip on lead frame,single module LED package design
System design integrating power supply,LED light engine ,and heat
sink
Over Current,Over Voltage,Over Heat,Thunder Protection
Choice of correlated color temperatures
Long lifespan for LED 50,000 hrs
Complying with CE,ROHS, No strobing during working, Fast response
(no delay) , No
mercury vapour ,No radiation,No UV,No damage with frequency
switching
IP Rating: IP65
Power supply direct touch the radiator,in light weight
2,Application area:
Replacing traditional High Pressure Sodium lamp or metal halide
lamp.
Widely used for advertise billboard ,exterior wall of hotel and
related landscape lighting
3,Product Dimensions:
Attentions:
1,All dimension units are millimeters.
2,All dimension tolerance is ±1mm unless otherwise noted.
4,Product Specification:
| Power: | 10w |
| Material: | Aluminum Alloy/PC |
| Chip: | Epistar |
| Light efficiency: | 80-90Lm/w |
| Color Temperature: | 2700 -3000K 4000-4500K 5000-6000K |
| CRI: | Ra70 |
| Beam Angle: | 120 degree |
| PF: | >0.95 |
| Working Life: | ≥ 50000 hrs |
| Warranty: | 3 years |
| Dimensions |
| Finishing Color: | Black |
| Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
| SHAPE: | Rectangle |
| Package: | 2pcs/carton |
| Work Environment |
| Input Voltage: | AC100-240V/50-60Hz |
| Operating Temperature: | -40~ + 60°C |
| Application |
| Application: | Projector / Floodlight
Tunnel Lighting / Pathway Lighting / Park Lighting
Signboard Lighting |
| Recommend mounting height: | 3-6m |
Assembly Electricity:

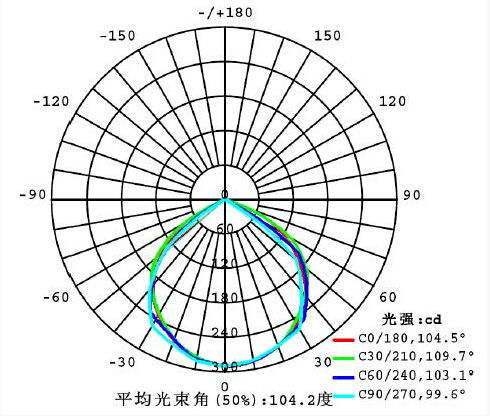

6,Polar Diagram of Luminance:
7,ISOLUX CURVE:
Attentions:
All data is under 25℃,unless otherwise specified
8,Package:
1 Set = 210mm×142mm×68mm 0.72Kg
1 Carton = 40 Set Size: 595mm×370mm×450mm 29.8Kg
9,Installation:
Installation tool: A adjustable wrench group.
Installation Steps:
① Tighten Axle Screw, and Locate Screw
② Connecting the power line of LED Flood Light to the power
supplier ,finish the installation procedure
The installation notices:
① No necessary using other devices for LED Flood light installation
such as stabilizer, regulator and so on
② Opening the light and lifting the buckle is unallowable. Soaking
in the water is unallowable
10,Warning:
Do Not Use Other Devices for LED Floodlight Installation Such as
Stabilizer,
Regulator …etc
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
11,Warranty:
2 Years Warranty Starts from Taking Delivery of Goods a Day. The
Warranty Content
Includes the Damage of All Components, Such as LED Light Source and
Power
Supply...etc.
The Floodlight Must Operate at the Common Normal Environment. As in
Order to
be Faced by the Sea Road in 3 Kilometers or to Use in the Bad
Environment Such as Tunnel, Warranty Period is Within 1 Year.
The Calculation of Warranty Period with Turn on the Light for a Day
8-10 Hours is Limited. As Everyday Longer Than 10 Hours, Then
Gradually Decrease According to Comparison Warranty Time Limit.
Application Area:
1. Tunnel,Subway, Underground.
2. Gym, Sports Stadium
3. Building, Billboard
4. Gas Station, Garage
5. Park, Garden.
6. Workshop, Factory.
7.Warehouse, Storage.
8. Road, Highway.
9. Yard, Square.
10 Station, Dock,Deck, Ship, Boat.
11. Aquarium etc.

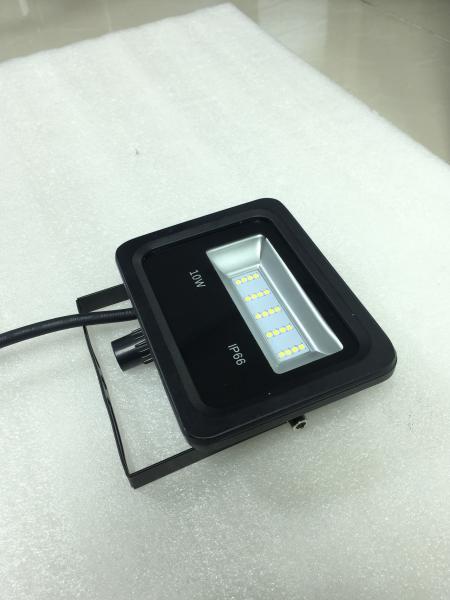

Product Pictures
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when
choosing LED light source. The higher, the better. Besides, brand
of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyond always treat the clients benefit as the
most important thing. So, we use the top brand material to produce
high quality product.
3. How to place an order with your company?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty
policy, please contact our sales representatives.
