Absolutely unique mold,make your lighting special and fantastic.
Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
Anti-glare and uniform light level to avoid any visual discomfort.
high quality power supply, input voltage 100-240V. The power
efficiency is more than 90%, power factor greater than 0.98, UL
compulsory certification.
Adopting LUXEON 5050 / 3030 led light sources and LEYOND lens
technology, 8% light efficiency higher than the same type lights in
the market, with higher light transmittance up to 98%.
Duct type thermal design, reduce the weight of the light and ensure
good heat dissipation, lower luminous decay, and also extend life
span of the leds. Adopting the popular CHEM modular design,
effectively reduce the following maintenance cost.
Low energy consumption,matching high efficiency constant-current
driver, 60% energy saving;with good resistance to over-current,
over-voltage, lightning, high temperature, which fully ensure long
life span and high stability of the products.
Durable lights with long life span up to 50000 hours; No need
frequent replacements of lights and regular maintenance.
Green environmental protection, no UV light and infrared radiation,
no mercury pollution.
Nice appearance and non-fouling properties, Protection class IP65.
Work without strobe, fast transient response；A wide range of
working voltage.
Dimension:

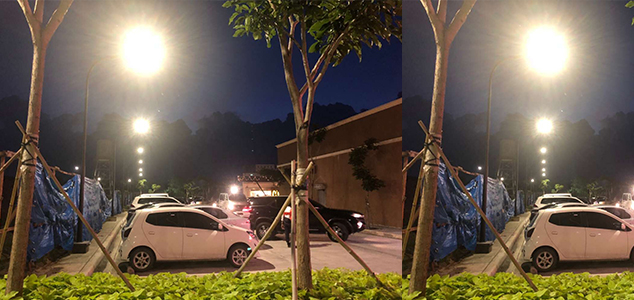

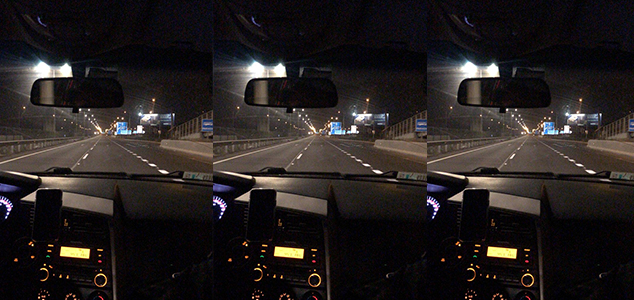

Application cases:
Installation instructions:
1. Switch off the power supply
2. Through the AC electrucal cable in the lamp pole
3. Clear the Brown / Blue / Green Yellow pole
4. Electrical wiring connection
5. Tight the screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity
20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional
electrician)
Specification:
| Part NO | LY-ST80020XX | LY-ST80030XX | LY-ST80040XX | LY-ST80050XX | LY-ST80060XX |
|
| Input voltage | AC100V～277V 50/60HZ / DC12-24V |
| POWER(W) | 20W | 30W | 40W | 50W | 60W |
| Luminous flux(lm) | 3000 | 4440 | 5800 | 7150 | 8400 |
| Chip Brand | LUXEON 5050 |
| LED Quantity (pcs) | 72 |
| Beam Angle | TYPE III 150*80 |
| CRI | 70/80 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
| Luminous efficiency(lm/w) | ＞155 | ＞160 | ＞162 | ＞165 | ＞165 |
| LED Driver | MEAN WELL / INVENTRONICS |
| Lifespan(h) | ＞50000 |
| IP Rating / IK | IP66 / IK10 |
| Material | ADC 12 |
| Dimmable | 1-10V/DALI |
| Light body color | Black/Grey |
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% |
| Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% |
| Size(mm) | L580*W180*H106mm (L22.83*W7.09*H4.17Inch) |
| Net Weigh(kg) | 2.5kg |
| Package Size(mm) | L614*W222*H162mm (L24.17*W8.74*H6.38inch) |
| Package Quantity(Pcs) | 1 |
| Gross Weigh(kg) | 3.3 |
| Installation height(m) | 4-8 |
Distribution Curve:
Applications:
- Urban road
- Secondary road
- Rural road
- High way
- Parking lot
- Park
- Sea shore
- Landscape
Package info:
Inner carton Size: 614mm×222mm×162mm
Outer carton Size: 632mm×456mm×348mm
4 pcs inner carton load into 1 outer carton

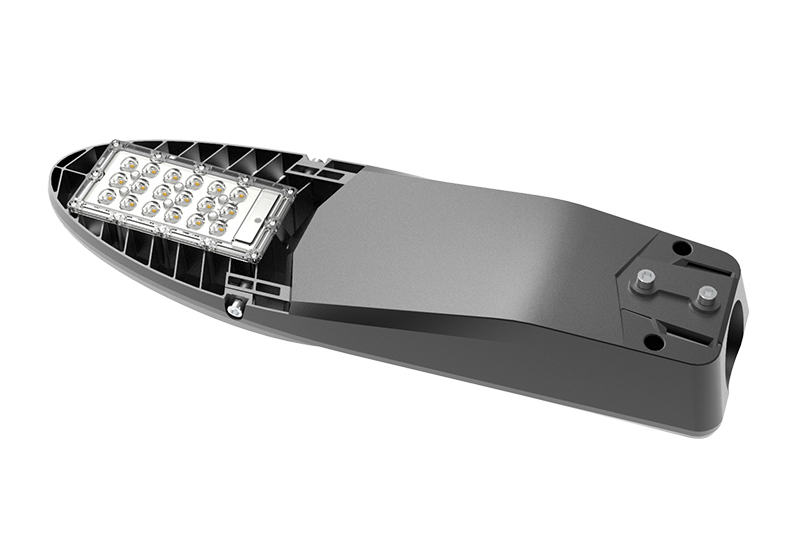

Actual pictures:
Related hot selling products:
1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w
Mr. Pure Zhao (Sales Engineer)
Shenzhen Leyond Lighting Co.,ltd
Web: www.leyond.com.cn
Email: sales15@leyond.com.cn
Mobile/whatsapp: 0086 18675501972
Wechat: 0086 18675501972
FAQ:
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for
order quantity more than
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new lights with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
