    ENEC Certified LED Street Light 150W Fixtures IP66 Waterproof Rating

    Ask Lasest Price
    Brand Name : Leyond
    Model Number : LY-ST81150XX
    Certification : ENEC,CB,CE,ROHS
    Price : Negociable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 10000pcs per month
    Delivery Time : 10-12 working days
    • Product Details
    • Company Profile

    ENEC Certified LED Street Light 150W Fixtures IP66 Waterproof Rating

    ENEC Certified LED Street Light 150W Fixtures IP66 Waterproof Rating

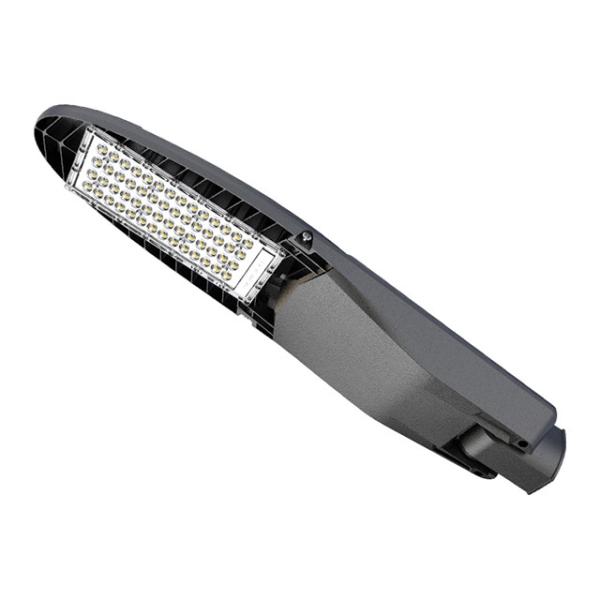

    ENEC Certified LED Street light 150W with IP66 waterproof rating.


    1. Ouitlook:


    2. Application:

    Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
    sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.


    3. Specification:


    Par NO

    Parameter

    LY-ST81120XXLY-ST81150XXLY-ST81180XX
    Input voltageAC100V~277V 50/60HZ / DC12-24V
    POWER(W)120W150W180W
    Luminous flux(lm)192002325027000
    Chip BrandLUXEON 5050
    LED Quantity (pcs)54
    Beam AngleTYPE III 150*80
    CRI70/80
    Color TemperatureWarm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
    Luminous efficiency(lm/w)>160>155>150
    LED DriverMEAN WELL / INVENTRONICS
    Lifespan(h)>50000
    IP Rating / IKIP66 / IK10
    MaterialADC 12
    Dimmable1-10V/DALI
    Light body colorBlack/Grey
    working environmentTemperature -20 to +45°C, Relative Humidity 20~90%
    Size(mm)L806*W200*H109mm (L31.73*W7.88*H4.29Inch)
    Net Weigh(kg)4.8
    Package Size(mm)L847*W242*H154mm (L33.35*W9.53*H6.06inch)
    Package Quantity(Pcs)1
    Gross Weigh(kg)5.6
    Installation height(m)8-12

    4. Distribution Curve (60W)




    5. Package:


    NameSizeQuantityN.GG.W
    Inner box

    L847*W242*H154mm

    (L33.35*W9.53*H6.06inch)

    1pcs4.8kg5.6kg
    Outer box

    L865*W254*H332mm

    L34.06*W10.0*H13.07inch

    2pcs9.6kg11.9kg



    6. Notes:

    This product provides 5-year warranty period from the date of purchase. During the warranty period, if the product fails under normal use, the company will provide free maintenance services. During the warranty period, please strictly abide by the product usage specifications:
    1. Before use, please read the installation manual in detail for correct installation;
    2. Please check carefully before use. If any abnormal phenomenon is found during use, please keep the evidence and contact our company;
    3. Please do not disassemble the lamp privately, otherwise it will be deemed to automatically give up warranty


    7. Detailed Pictures:
