IP66 50W Integrated Solar Led Street Light Luxeon SMD5050 Chips
10KV SPD
IP66 Integrated Smooth housing LED Street Lights 50W Luxeon SMD5050
chips 10KV SPD safety rope available
Specification
|
Par NO Parameter | LY-ST81020XX | LY-ST81030XX | LY-ST81040XX | LY-ST81050XX | LY-ST81060XX |
| Input voltage | AC100V～277V 50/60HZ / DC12-24V |
| POWER(W) | 20W | 30W | 40W | 50W | 60W |
| Luminous flux(lm) | 3200 | 4740 | 6200 | 7650 | 9000 |
| Chip Brand | LUXEON 5050 |
| LED Quantity (pcs) | 18 |
| Beam Angle | TYPE III 150*80 |
| CRI | 70/80 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
| Luminous efficiency(lm/w) | ＞160 | ＞158 | ＞155 | ＞153 | ＞150 |
| LED Driver | MEAN WELL / INVENTRONICS |
| Lifespan(h) | ＞50000 |
| IP Rating / IK | IP66 / IK10 |
| Material | ADC 12 |
| Dimmable | 1-10V/DALI |
| Light body color | Black/Grey |
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% |
| Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% |
| Size(mm) | L580*W180*H106mm (L22.83*W7.09*H4.17Inch) |
| Net Weigh(kg) | 3.5kg |
| Package Size(mm) | L614*W222*H162mm (L24.17*W8.74*H6.38inch) |
| Package Quantity(Pcs) | 1 |
| Gross Weigh(kg) | 4.3 |
| Installation height(m) | 4-8 |

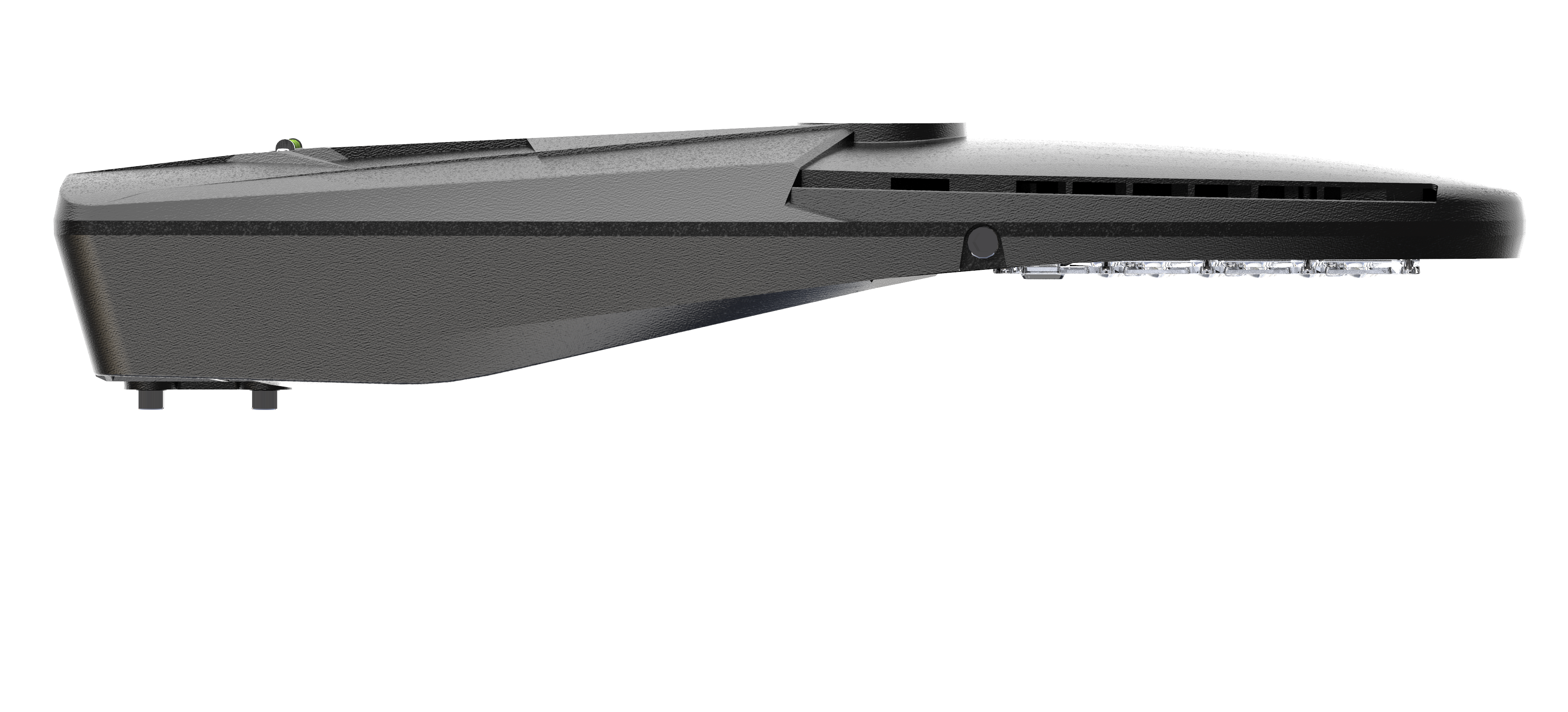

Pictures
Application
Suitable for the street lighting at highways, urban roads and
secondary roads, stadiums,sidewalk,
residential areas, industrial areas, squares, parks, schools,
villas, gardens and other places.
5. Features
1. The shell adopts die-casting integral molding, which has higher
safety and longer life.
2. The product has a beautiful appearance and curved lines, which
effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function,
which effectively reduces dust accumulation;
4. Using Philips 5050 lamp beads, the luminous efficiency is as
high as 160lm/w
5. The optical lens adopts Japanese PC material, with a light
transmittance of over 93%, anti-ultraviolet rays, and good product
stability;
6. The lamp is equipped with a level gauge for positioning, which
is more time-saving and beautiful in installation
7. Waterproof and dustproof grade: IP66, protection grade IK10;
8. The product is equipped with other more optional functions:
light controller, circuit breaker,single lamp controller,
anti-falling sling, etc.

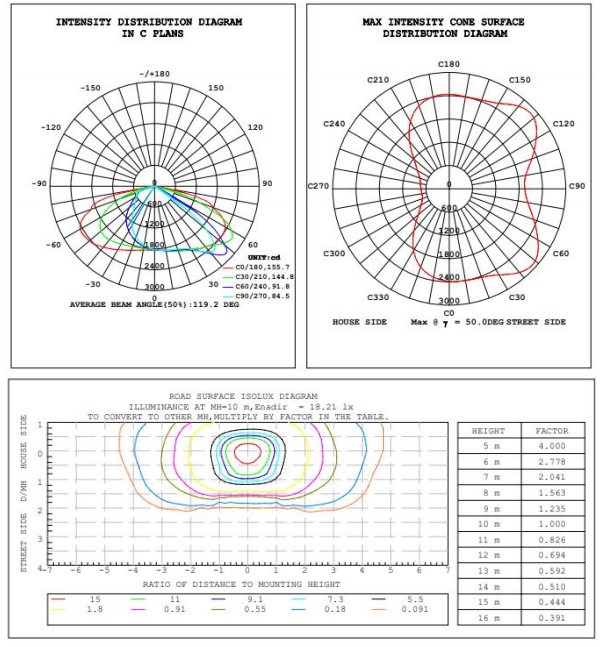

6. Distribution Curve
7. Package
Inner box L614.0*W222.0*H162.0mm 1pcs 2.5kg 3.3kg
Outer box L632.0*W456.0*H348.0mm 4pcs 10.0kg 14.2kg
8. Notes
This product provides a 5-year warranty period from the date of
purchase.
During the warranty period, if the product fails under normal use,
the company will
provide free maintenance services. During the warranty period,
please strictly abide
by the product usage specifications:
1. Before use, please read the installation manual in detail for
correct installation;
2. Please check carefully before use. If any abnormal phenomenon is
found
during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will
be deemed to
automatically give up warranty.
