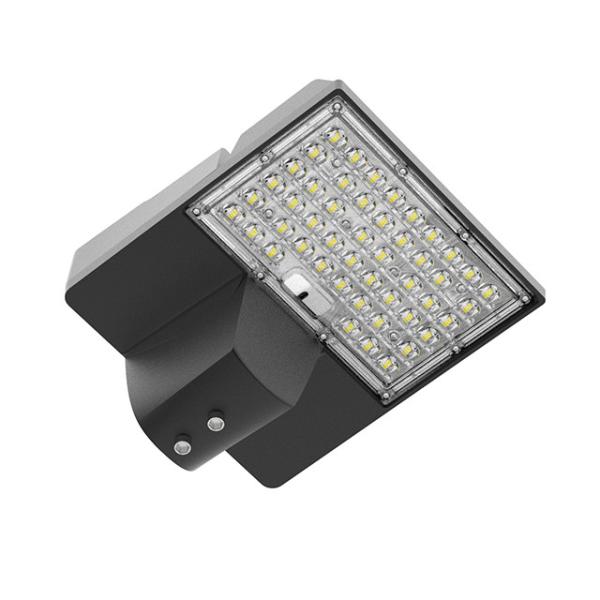

Toolless 100W LED Street Light Fixtures With IP66 Waterproof Rating
ENEC certified toolless LED Street light 100W with IP66 waterproof
rating.
1. Outlook:
2. Application:
Suitable for the street lighting at highways, urban roads and
secondary roads, stadiums,sidewalks, residential areas, industrial
areas, squares, parks, schools, villas, gardens and other places.
3. Features:
1) The appearance of body: aluminum alloy die-casting;
2) Anti-glare and uniform light level to avoid any visual
discomfort;
3) Adopting LUXEON 5050 led light sources and LEYOND lens
technology, higher light transmittance up to 93%;
4) The power supply is designed to be portable and easy to
construct and maintain. Easy to disassemble and assemble.
You can easily open and cover up the housing with your hands, don't
need any additional tools.
5) Dust and snow proof: Adopt smooth die-cast aluminum housing,
successfully prevent the dust and snow from accumulating
on the housing, thus better heat dissipation and longer life span.
6) High quality power supply, input voltage 100-305V. The power
efficiency is more than 90%, power factor greater than 0.98.
4. Specifications:
Par NO Parameter | LY-ST60100PW | LY-ST60100WW | LY-ST60100NW |
| Input voltage | AC100V～305V 50/60HZ |
| System consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 15800 | 14000 | 15500 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| LED Quantity(PCS) | 48 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 |
| Beam Angle | 150*60 DEG |
| LED Driver | MEAN WELL XLG-100 |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO |
| Size(mm) | 252x220x128 |
| Net Weigh(kg) | 2.8 |
| Package Size(mm) | 290*250*180 |
| Package Quantity(Pcs) | 1 |
| Gross Weigh(kg) | 3.7 |
5. Distribution Curve (100W)
6. Package:
Inner box Size: 310mm×270mm×200mm
Outer box Size: 328mm×285mm×425mm (2 PCS LED Street Light)
7. Optional Function:
Daylight automatically controlling ON / OFF
- Turn-On Light Level: 10 Lux or at customer’s request
- Turn-Off Light Level: 50 Lux or at customer’s request
- Turn-On Time Delay: 10-15s
- Turn-Off Time Delay: 10-15s
8. Projects Reference:
