150W LED Street Lighting ENEC CB Certified Galaxy For Roadway
ENEC CB Certified Galaxy LED Street light 150W for roadway lighting
fixture.

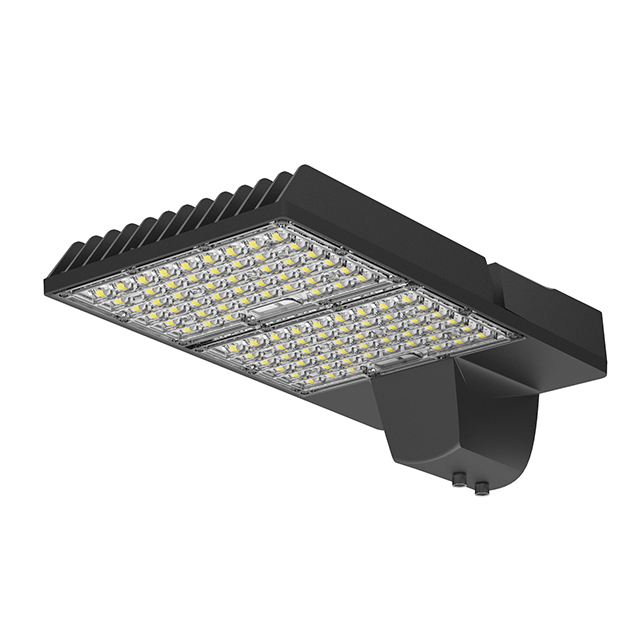

1. Outlook:
2. Application:
Highways, urban roads and secondary roads, residential areas,
industrial areas, squares, parks, schools, villas, gardens and
other places.
3. Features:
1) The appearance of body: aluminum alloy die-casting;
2) Anti-glare and uniform light level to avoid any visual
discomfort;
3) Adopting LUXEON 5050 led light sources and LEYOND lens
technology, higher light transmittance up to 93%;
4) The power supply is designed to be portable and easy to
construct and maintain. Easy to disassemble and assemble.
You can easily open and cover up the housing with your hands, don't
need any additional tools.
5) Dust and snow proof: Adopt smooth die-cast aluminum housing,
successfully prevent the dust and snow from accumulating
on the housing, thus better heat dissipation and longer life span.
6) High quality power supply, input voltage 100-305V. The power
efficiency is more than 90%, power factor greater than 0.98.
4. Specifications:
Par NO
Parameter | LY-ST60150PW | LY-ST60150WW | LY-ST60150NW |
| Inptut voltage | AC100V～305V 50/60HZ |
| Sysem consumption(W) | 150 | 150 | 150 |
| Luminous flux(lm) | 2400 | 20200 | 22800 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 |
| Beam Angle | 150*60 DEG |
| LED Driver | MEAN WELL XLG-200 |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 394x220x128 | 394x220x128 | 394x220x128 |
| Net Weigh(kg) | 3.6 | 3.6 | 3.6 |
| Package Size(mm) | 430*250*180 | 430*250*180 | 430*250*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 4.7 | 4.7 | 4.7 |
5. Product Details:

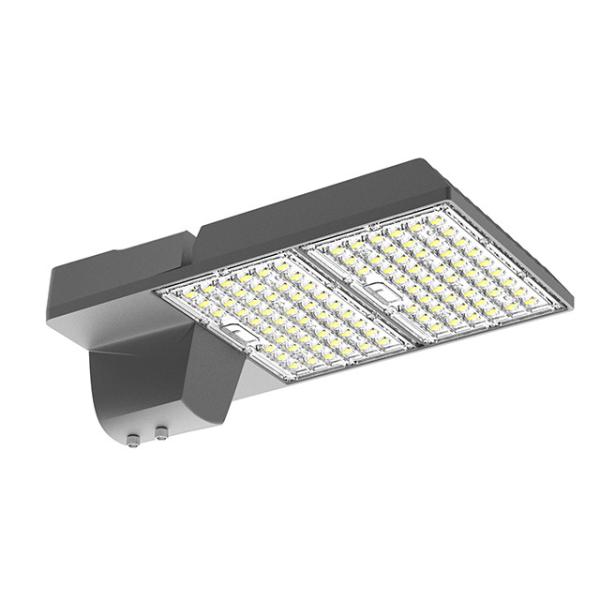

1) Die Custing Aluminum Housing:
2) Lumileds Luxeon 5050 Chips:

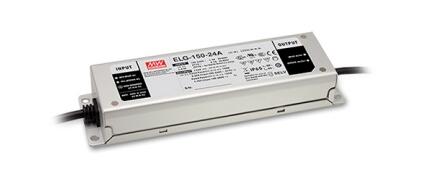

3) Meanwell Driver:
6. Package:
Inner box Size: 430mm×250mm×180mm
Outer box Size: 450mm×265mm×400mm (2 PCS LED Street Light)

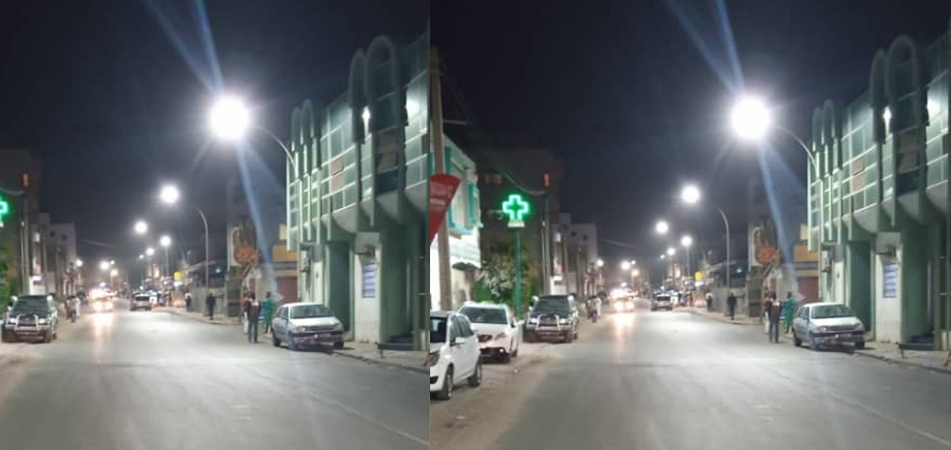

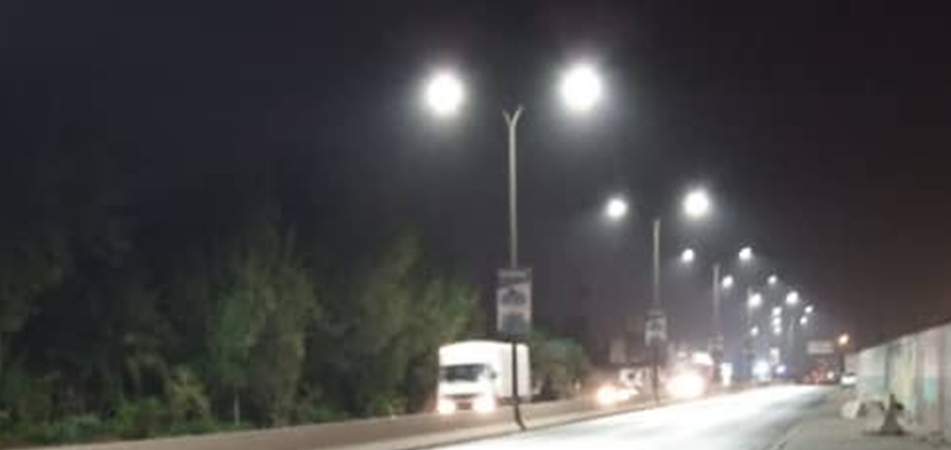

7. Case Studies:
8. Operation and Storage Condition:
l Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
l Input Voltage 100~305V AC, 50/60Hz
l Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
l Mounting Height : Suitable for 8~16m height
