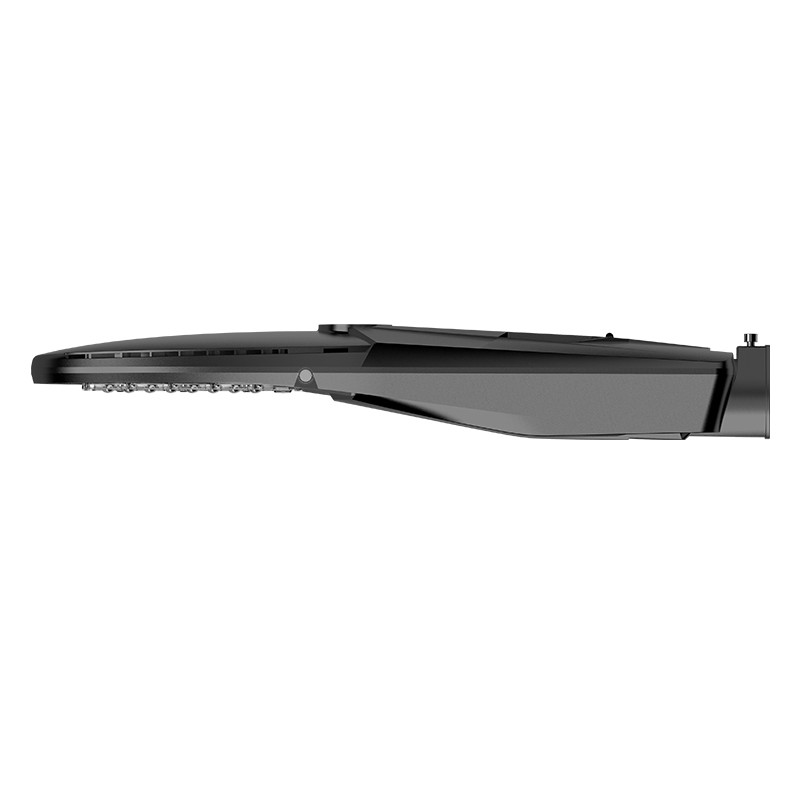

Modern Waterproof Street Light, LED Light Street, Aluminum 30W LED
Street Light Outdoor
Ouitlook:
Notes:
This product provides a 5-year warranty period from the date of
purchase. During the warranty period, if the product fails under
normal use, the company will provide free maintenance services.
During the warranty period, please strictly abide by the product
usage specifications:
1. Before use, please read the installation manual in detail for
correct installation;
2. Please check carefully before use. If any abnormal phenomenon is
found during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will
be deemed to automatically give up warranty
Specification:
Par NO Parameter | LY-ST81020XX | LY-ST81030XX | LY-ST81040XX | LY-ST81050XX | LY-ST81060XX |
| Input voltage | AC100V～277V 50/60HZ / DC12-24V |
| POWER(W) | 20W | 30W | 40W | 50W | 60W |
| Luminous flux(lm) | 3200 | 4740 | 6200 | 7650 | 9000 |
| Chip Brand | LUXEON5050 |
| LED Quantity (pcs) | 18 |
| Beam Angle | TYPE III 150*80 |
| CRI | 70/80 |
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure
white:5000-6500K |
| Luminous efficiency(lm/w) | ＞160 | ＞158 | ＞155 | ＞153 | ＞150 |
| LED Driver | MEAN WELL / INVENTRONICS |
| Lifespan(h) | ＞50000 |
| IP Rating / IK | IP66 / IK10 |
| Material | ADC 12 |
| Dimmable | 1-10V/DALI |
| Light body color | Black/Grey |
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% |
| Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% |
| Size(mm) | L580*W180*H106mm (L22.83*W7.09*H4.17Inch) |
| Net Weigh(kg) | 2.5kg |
| Package Size(mm) | L614*W222*H162mm (L24.17*W8.74*H6.38inch) |
| Package Quantity(Pcs) | 1 |
| Gross Weigh(kg) | 3.3 |
| Installation height(m) | 4-8 |
Distribution Curve (20W)
Application:
Suitable for the street lighting at highways, urban roads and
secondary roads, stadiums,sidewalk, residential areas, industrial
areas, squares, parks, schools, villas, gardens and other places.
Package:
| Name | Size | Quantity | N.G | G.W |
| Inner box | L614.0*W222.0*H162.0mm L24.17*W8.74*H6.38inch | 1pcs | 2.5kg | 3.3kg |
| Outer box | L632.0*W456.0*H348.0mm L24.88*W17.95*H13.70inch | 4pcs | 10.0kg | 14.2kg |
FAQ:
- What about the lead time?
A:Sample needs 7 days, mass production time needs 1-2 weeks for
order quantity more than
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly
We quote according to your requirements or our suggestions. Thirdly
customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new lights with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
Application:
Suitable for the street lighting at highways, urban roads and
secondary roads, stadiums, sidewalk, residential areas, industrial
areas, squares, parks, schools, villas, gardens and other places.
Our Services:
MOQ: 2pcs
Port: Shenzhen, Zhongshan, Guangzhou
Sample availability: Yes
Supply capability: 1000 pcs/day
Payment: T/T, Western Union, Paypal.
Shipment: ocean or air transportation, international express
Normal lead time: 5days for sample order;10 days for production
order
Payment condition: 30% before production, 70%before delivery
