Indoor and Outdoor LED High Bay Light Energy Efficient Warehouse
Lighting
Features:
• Up to 80% Energy-saving compared to metal halide lamp, mercury-free
and 100% recyclable, energy saving and environmental protection
• Isolated internal led driver, easy installation, safety guaranteed
• High PF value 0.9 above and THD less 15% for decrease of
electricity loss
• Up to125LM/W high light efficacy, 50000h above lifespan, 5 Years
warranty, cost effective
• Power supply key components adopt world brand,No flicker, no
delay, Instant on/off
• Designed for hook type, can be directly replaced is used to quick
and easy
• installation to minimize retrofit and maintenance costs
• Small size, less weight and durable is the best choice for
warehouses, stadiums, exhibition spaces, high ceiling lights.
• Using imported chip, LED encapsulation structure optimization, to
achieve low light failure, high photosynthetic efficiency, energy
conservation and environmental protection advantages.
Technical parameter:
Par NO Parameter | LY-HB39150WW | LY-HB39150NW | LY-HB39150PW |
| Input voltage | AC100V～240V 50/60HZ |
| Input Current | AC 0.72A / AC220V |
| Sysem consumption(W) | ≤152 | ≤152 | ≤152 |
| Light Fixture Luminance (lm) | 16000 | 17500 | 18000 |
| LED type | LUXEON 3030 | LUXEON 3030 | LUXEON 3030 |
| LED QTY | 210 | 210 | 210 |
| System Efficiency | ＞90% | ＞90% | ＞90% |
| Driver | MEAN WELL HBG-160 / OTHER |
| Beam Angle | 60°/90°/120° | 60°/90°/120° | 60°/ 90°/120° |
| CRI | ＞70 | ＞70 | ＞70 |
| Color Temperature(K) | 2700-3200k | 4000-4500k | 5000-6500k |
| Meterial | Magnesium Aluminum + PC cover |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP65 |
| Product Size(mm) | Φ340X169 | Φ340X169 | Φ340X169 |
| NET Weight(KG) | 4.5 | 4.5 | 4.5 |

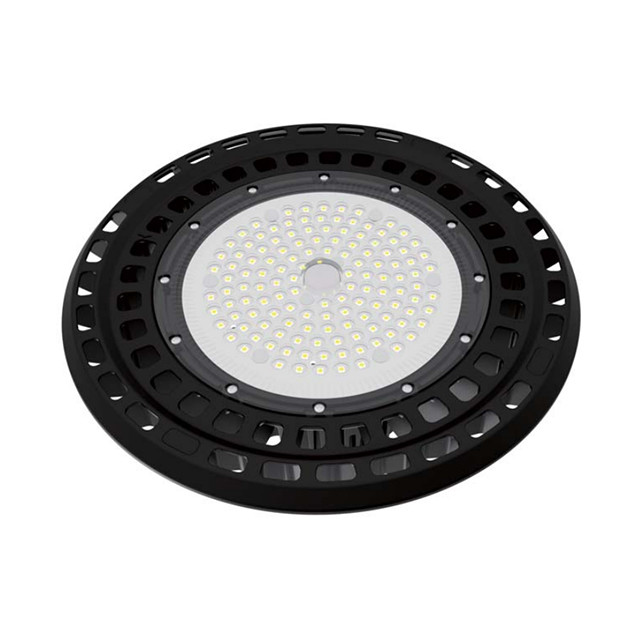

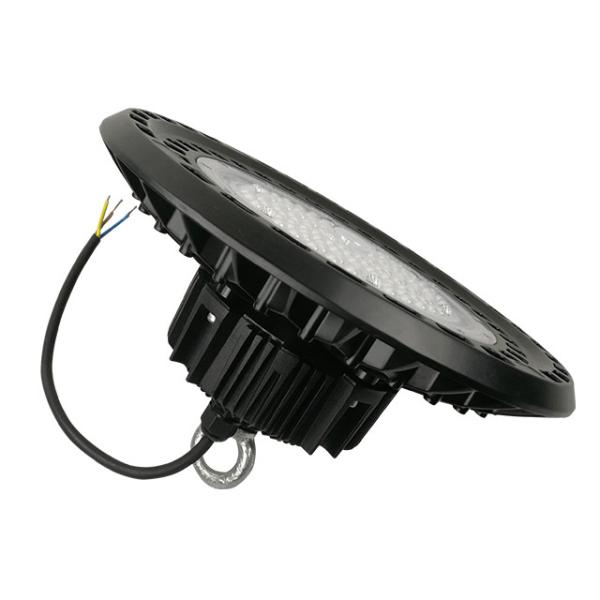

Product picture:
Size:
FAQ:
1. Q:What's the led chip for the UFO high bay light?
A: Luxeon 3030 chip
2. Q:what's the driver brand?
A: Meanwell driver
3. Q:what's the delivery time?
A: for sample,3-5 working days after payment,for normal order,7-10
working days.
4. Q:what's the product warranty?
A: 5 years warranty
5. Q:Can you provide OEM design?
A: Yes,OEM or ODM design is available
If any questions or requirement,please feel free to contact me.
my skype is ly-sales20 email address is sales20@leyond.com.cn
