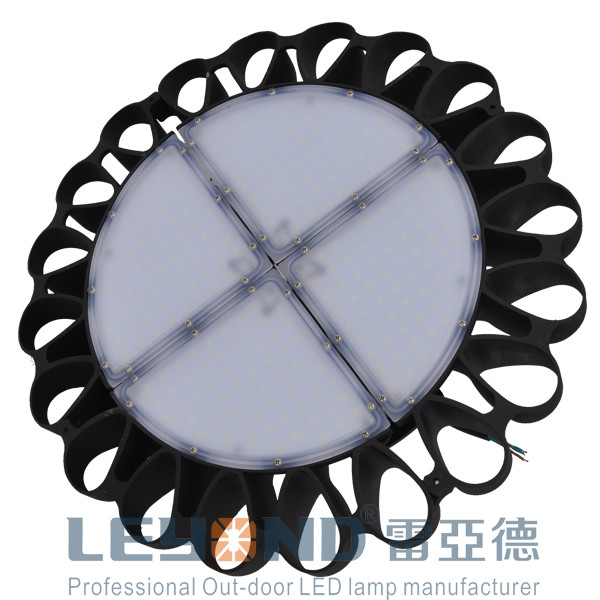

Lighter Industrial LED UFO High Bay 100W 150W 200W Warehouse AC100V
～ 240V
Why choose UFO High Bay?
1. ) High brightness , 130lm/w
2. ) A new and comprtitive price with a cost saving of 20 % than others HighBay
3. ) SMD3030 , has excellent scattered heat emission and a low light decay
4. ) No seperately difusser compared with traditional high bay , save more space and shipping cost
Technical parameter
Par NO | LY-HB35100WW | LY-HB35100NW | LY-HB35100PW |
| Inptut voltage | AC100V～240V 50/60HZ |
| Sysem consumption(W) | ≤102 | ≤102 | ≤102 |
| Light Fixture Luminance(lm) | 10900 | 11600 | 12100 |
| LED type | SMD3030 | SMD3030 | SMD3030 |
| LED QTY | 120 | 120 | 120 |
| System Efficiency | ＞90% | ＞90% | ＞90% |
| Driver | / MEAN WELL |
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 2700-3200k | 4000-4500k | 5000-6500k |
| Meterial | Magnesium Aluminum + PC cover |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP65 |
| Product Size(mm) | Φ340X162 | Φ340X162 | Φ340X162 |
| NET Weight(KG) | 3.6 | 3.6 | 3.6 |
Dimension
Distribution Curve
Picures
Facture
Up to 80% Energy-saving compared to metal halide lamp ,
mercury-free and 100% recyclable,
energy saving and environmental protection
Isolated internal led driver , easy installation , safety
guaranteed
High PF value 0.9 above and THD less 15% for decrease of
electricity loss
Up to120LM/W high light efficacy , 50000h above lifespan , 5 Years
warranty , cost effective
Power supply key components adopt world brand , No flicker , no
delay , Instant on / off
Designed for hook type , can be directly replaced is used to quick
and easy
Installation to minimize retrofit and maintenance costs
Small size , less weight and durable is the best choice for
warehouses , stadiums , exhibition spaces , high ceiling lights.
Using imported chip , LED encapsulation structure optimization , to
achieve low light failure , high photosynthetic efficiency , energy
conservation and environmental protection advantages.
Application
There is widely used in Warehouse , Industrial workshops ,
Logistics centers , Exhibition halls , Stadiums , Docks , Golf
courses , Airport , Highway toll stations , supermarkets Light
engineering.
Package
- Carton Size: 370mm×370mm×180mm
- Net weight:3.6KG Gross weight:4.5KG
Assembly and Installation
- Blue : Neutral
- Brown : Line
- Yellow-Green : Ground
Installation
Step1. Ensure all power disconnected and turn off the power switch.
Step2. Knowing the inside diameter of the circular ring,then choose
suitable hook for the lamp.
Step3. Fix the hook before installation and enable it to support
over 3 times weight of the lamp. Connect the lamp with hook and
make it safe.
Step4. Connect the input cables of lamp to power supply mains and
wrap up the cables with insulated sleeve.
Step5. Switch on the power, the lamp will light on. Refer to the
left figure.
In case of any abnormal phenomenon or problem, please switch off
the power supply then contact with Genice customer service center.
