85lm - 95lm / W Led Highbay Light 100w / Outdoor Led Highbay Lamp
Specification:
| Parameter Par NO | LY-HB65100PW | LY-HB65100WW | LY-HB65100NW |
| Inptut voltage | AC100V～240V 50/60HZ |
| Sysem consumption(W) | ＜103 | ＜103 | ＜103 |
| Luminous efficiency(lm/w) | 88 LM/W | 80 LM/W | 84 LM/W |
| Luminous(lm) | 8900 | 8200 | 68500 |
| LED quantity(pcs) | 3030 / 100PCS | 3030 / 100PCS | 3030 / 100PCS |
| Beam Angle | 25°/45° | 25°/45° | 25°/45° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 5000-5500k | 2700-3200k | 4000-4500k |
| Meterial | Aluminum+Glass |
| Driver | HLG-120H |
| Lifespan(hrs) | ＞50000 |
| Size of pack(mm) | 405*405*380 | 405*405*380 | 405*405*380 |
| HighBay Size(mm) | Φ357x362 | Φ357x362 | Φ357x362 |
| Net weight(KG) | 4.6 | 4.6 | 4.6 |
| Gross weight(KG) | 5.8 | 5.8 | 5.8
|
Features:
• 11 flexible positions makes project angle can be adjusted within
180 °.
• Professional heat dissipation structure design. Modular heatsink
with perfect structure and inside airflow channels maxim the 3D
heat dissipation.
• Rivet the heatsink body closely, minimize the heat resistance,
greatly improve the heat dissipation effect, and it is much lighter
compared with similar products.
• Waterproof design, eliminating mist, avoiding
condensation,improving quality,extending the life span.
• Flake designed high-purity aluminum reflector angle scales , to
adapt to different situations.There are 25°,45°,beam angle options
for the flake designed reflector.Reflective rate could reach up to 95%.
• Over Current, Over Voltage, Over Heat, Thunder Protection
• Choice of Correlated Color Temperatures
• Long lifespan for LED 50,000 hrs
• 100% Recycle, No Pollution, and UV, IR

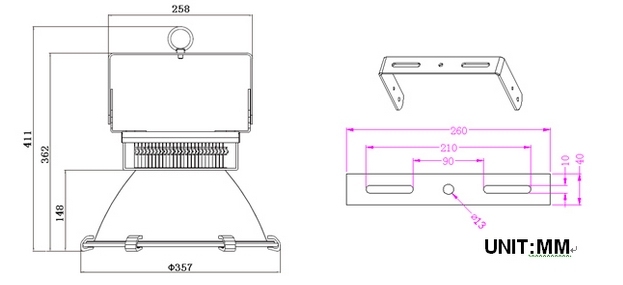

Outlook:

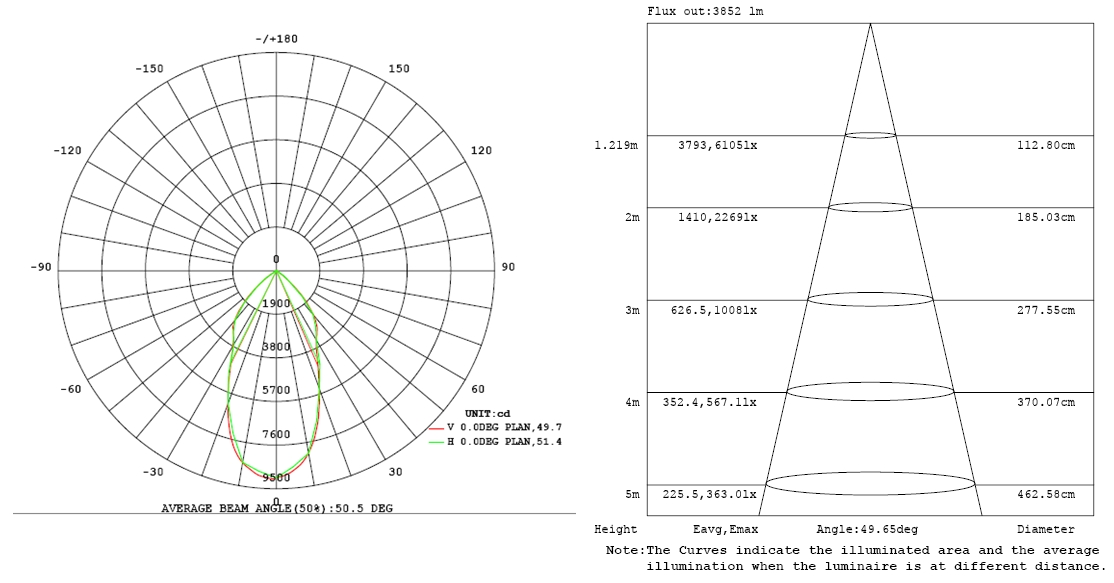

Photometry:
Operation and Storage Condition:
• Operation Ambient Temperature -25 to +55°C, Relative Humidity
20~90%
• Input Voltage 100-240V AC, 50/60Hz
• Storage Ambient Temperature -25to +60°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~12m height
Package:
Warning:
• Do Not Use Other Devices for LED high bay light Installation Such
as Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the high bay light into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
Apllications:
Factory/ Gym/Square/Airport/warehouse…
Terms&Conditions:
1) T/T(30% T/T in advance, the balance paid before shipment.),
PayPal, Western Union.
2) Minimum Order:.1pcs.
3) Samples can be available within 5 working days.
4) Lead time:7-10 working days for 100 to 500pcs, about 15 working
days for 500 to 2000pcs.
5) Shipping freight is quoted under your requests.
6) Price term: EXW shenzhen
7) Discounts are offered based on order quantities.
8) Packaging: Neutral package, otherwise, can be customized
according to customer requirements of Logo, Brand and etc.
9) OEM design and R & D production is available.
