Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty
1. Outlook
02. Features:
1. The lamp adopts integrated structure design, with better heat
dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to
160lm/W;
3. The solar panel is made of Monocrystalline silicon, with a
higher conversion efficiency, up to 18%, and a service life of up
to 25 years;
4. Using the most advanced MPPT tracking control technology to
improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming,
intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using ternary lithium battery technology, the battery capacity
is high;
8. 365 days uninterrupted power.

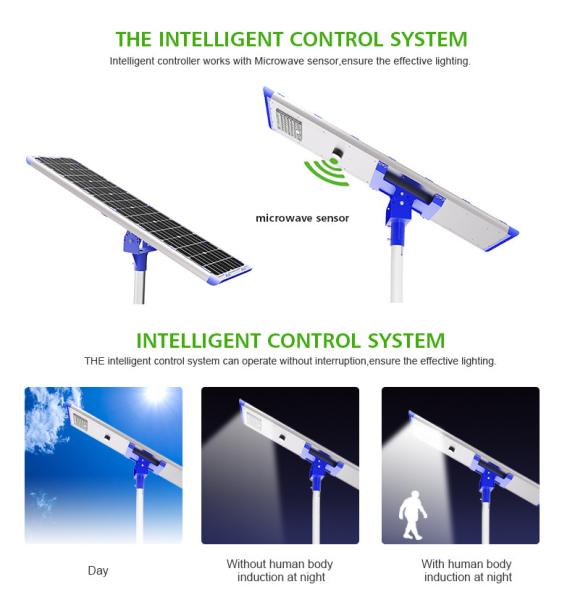

9. Three control model:
Time control + light sensor control + motion sensor control;
Time control: It can be divided into 5 time periods, which is more humane and
energy-saving;
Light sensor control: When the evening comes, when the solar panel battery voltage is
lower than 3V,the lamp will automatically turn on;
Motion sensor control: A motion-sensing energy-saving mode. When a moving object is
sensed, the lamp will have 100% brightness; when no moving object
is sensed, the lamp will be in a low-power and energy-saving state,
with a brightness of 10%-100% (can be set)
03. specification
Par NO Parameter | LY-ST31100PW | LY-ST31100WW | LY-ST31100NW |
| Battery | 18650 lithium battery 12V 50 Ah |
| Beam angle | 150x70° | 150x60° | 150x70° |
| Pole diameter | 60MM | 60MM | 60MM |
| Light output | 100W | 100W | 100W |
| Luminous flux(lm) | 16000 | 15500 | 15000 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| Solar panel | 100W /18V mono-crystalline silicon |
| CRI | ＞70 |
| Chip Brand | LUXEON 5050 |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | Light Control + Sensor |
| Material | Die Casting Aluminum |
| Luminous efficiency(lm/w) | ＞160 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP66 |
| Installation height | 6~8M |
04. Package
Box Size: L1395.0×W210.0×H430.0mm (1 PCS LED Street Light)
L54.92*W8.26*H16.93 Inch
05. About Us
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the
wholly-owned subsidiary of LiYang Electronic(Hongkong) Limited. We
are High-Tech enterprise who concentrate and specialize in
developing and producing Eco-friendly high power LED Lightings.
Leyond company is located in Shenzhen, owns a 6000m2 factory with
high qualified clear workshops and 300 employees. Together with
outstanding optical & technical personnels and quality engineers;
equipped with advance automaticity Die Bonding & chip bonding
equipments and molding machines; perfect quality-testing and
safeguard measures; all of these promote Leyond to be the leader in
the industry.
“Innovation is the base of development; qualified service is the
foundation of existence”, Leyond keeps up with marketing trend
based on customers’ requirements, try to supply the best products
with best price & quality and humanistic service.
LEYOND is the Top 3 LED street light exporter from China,Our major
products include Led Street lights, Led flood
light,Stadium&Large Area Lighting,Led Canopy lights,ect,All
design and making by ourself. According to customers’ requirement
we can supply professional lighting solution not only design but
also in production. Leyond operates strictly based on ISO
9001:2000, the quality management system from purchasing to
designing to manufacturing.
Our products are exported to Europe, Americas, Africa and other
Asian countries with UL,ROHS,CE and CB international standard. Also
we have flexible and timely after-sales services. We offer high
quality products and sustainable service to our customers,
establishing long-term cooperative relationship with them.
Feeling the charm of light, to find the value of the light. We
carry out enterprise culture of the “To customer demand as the
guide,keep the leading technology, to create maximum value for
customers”, and the spirit of “Humility self-discipline,
perseverance, go all out” is our permanent pursuit. Leyond is
striving to achieve the goal of “to be the best LED lighting
supplier” and to“ build Leyond brand”.
06. Production
07. Exhibition
