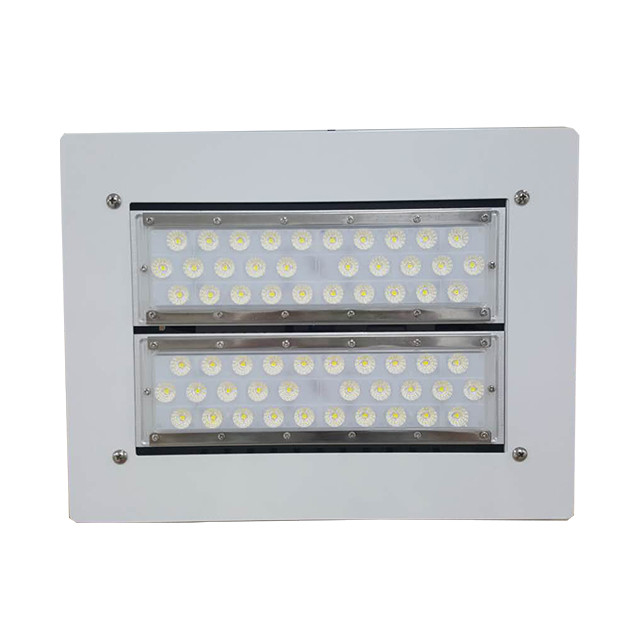

Long Lifespan 100w LED Canopy Lights Fixture With 5 Years Warranty
Long Lifespan 100w Outdoor LED Canopy Lighting Fixture With 5 Years
Warranty
Features:
• Using LUXEON 5050 led chip to ensure high lumen and long life.
Whole lamp output light effiency >160LM/W.
• Adoption LEYOND exclusive Lens with light transmittance up to
98%.
• Seals using silicone rubber, oil proof, aciduric, alkali fast,
fire resistant.The unit construction of lamp adopt waterproof and
dustproof design, It can meet the indoor and outdoor needs.
• Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
• There are 85°beam angle for your optional, optimized light
distribution design solution.
• High luminous efficiency, High quality power supply, input
voltage 100-240V. The power efficiency is more than 90%, power
factor greater than 0.98, UL compulsory certification.
• The whole lamp with the powder coating is brighter, without
fading and corrosion.
• Impact Resistance, Shock-proof, IK10. Without Ultraviolet (UV)
and Infrared (IR) Radiation: No filament and glass frames, avoid
break of the traditional lamp,without harm to the human body.
• The CCT of Warm white, Neutral white, Pure white to meet the
needs of different occasions, eliminated the low color temperature
of the sodium lamp which cause the depressed mood, observers will
feel more comfortable.
Product descreption:
Outlook:
Installation method:
Application cases:
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity
20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional
electrician)
Specification:
Par NO Parameter | LY-YL20100PW | LY- YL20100WW | LY- YL20100NW |
| Inptut voltage | AC100V～240V 50/60HZ |
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16500 | 16000 | 16300 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞75 |
| Beam Angle | 20 60 90 DEG |
| LED Driver | MEAN WELL ELG-100 |
Luminous efficiency(lm/w) |
＞165
|
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP65 |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 400x312x98 | 400x312x98 | 400x312x98 |
| Net Weigh(kg) | 5.5 | 5.5 | 5.5 |
| Package Size(mm) | 428*428*125 | 428*428*125 | 428*428*125 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 7.3 | 7.3 | 7.3 |
Distribution Curve:
Applications:
- Gas station
- Warehouse
- Cold storage
- Over pass
- Tunnel
- Natatorium
- Gymnasium

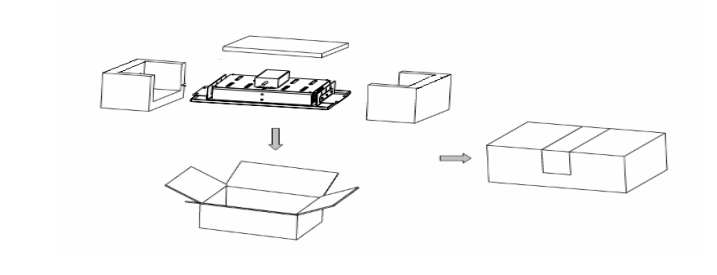

Package info:
l Carton Size: 380X370X140 MM
l Net weight:6.0KG Gross weight:6.8KG
Actual pictures:
Related hot selling products:
1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w
Warming:
l Please handle the product with care when open the package.
l Do Not Open the Light Engine
l Do Not Soak the Floodlight into Water
l Do Not Light up the System Without Grounding
l Do Not Use Dimmer
l If the new LED down light is found damaged, please keep the
original package and
contact us.
l In order to ensure the product work properly, please use the
power supply within
indicating voltage range.
l Whatever the case, lamps can not be covered by heat resistant
gasket or similar
materials.
