Double Heads LED Downlight With CREE COB And Anti Glare Lens
Product Features:
● Cree COB LED Chip inside,High light output>100Lm/W,High
CRI>80
● Patent DIWL® Lens,Anti-glare Diamond quality
● The thermal module and the fins air duct a 3D inter-cool system
● Absolutely unique mold, make your lighting special and fantastic
● World Top class LED driver-Meanwell Types Inside
● 3 Years warranty , leave no worries about quality, enjoy the
qualified green life
Illuminant parameters:
● Led Type: CREE CXA 1507/1512 COB
● Input Voltage:100-240V AC, Power factor (PF) :≥0.95
● CCT: 2700-6000K
● Color index (CRI) :≥80Ra
● Beam angle: 10/24/38/60/90 degree
● LED life span: 5,0000 hours, Warranty: 3 Years
| Par NO Parameter | LY-CL1224XX | LY-CL1230XX | LY-CL1236XX |
| Inptut voltage | AC85V～265V 50/60HZ |
| Sysem consumption(W) | 12*2 | 15*2 | 18*2 |
| Luminous flux(lm) | 2200-2400 | 2700-3000 | 3600-4000 |
| LED quantity(pcs) | CREE1507 (COB) | CREE1512 (COB) | CREE1512 (COB) |
| Beam Angle | 10°/24°/38°/60°/90° |
| CRI | | ＞80 | |
| Color Temperature(CREE) | 2700k,3000k,3500k,4000k,5000k |
| Meterial | Aluminum+PMMA |
| Driver | External power supply |
| Luminous efficiency(lm/w) | ＞90 |
| Lifespan(hrs) | ＞50000 |
| IP Rating | IP30 |
| Size of holes(mm) | Length:170-180MM Width85-95MM | Length:170-180MM Width85-95MM | Length:170-180MM Width85-95MM |
| Downlight Size(mm) | 195x105x65 | 195x105x75 | 195x105x85 |
| Net Weigh(kg) | 0.85 | 0.9 | 0.95 |
| Package Size (White Box)(mm) | 198×130×115 | 198×130×115 | 198×130×115 |
| Package Quantity(Pcs) | 20 | 20 | 20 |
| Packing(CM) | 42.5x68x26 | 42.5x68x26 | 42.5x68x26 |
| Gross Weigh(kg) | 18.5 | 19.5 | 20.5 |
Application area:
It can totally replace fluorescent lamp, applications in various
areas of lighting. Such as hotels,bars, supermarkets, restaurants,
museums, exhibition halls, Conference room, shops, warehouses, home
lighting and other place.

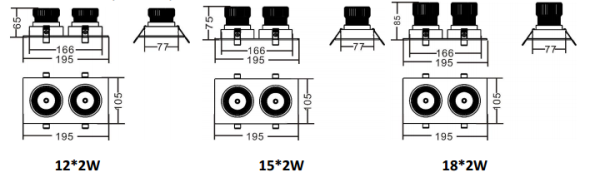

Product Size(Unit:MM):
Aging test:
100% of all lamps will be tested by auto testing line which
including different voltage, and keep lighting for 24 hours to test
its quality reliability and we will also test its temperature after
24 hours’ lighting. Each lamp should pass all these QC procedures
before shipping to customer.
Company Information:
Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation
founded in 2005, which is the wholy-owned subsidiary of LIYANG
Electronic (HK) limited. We concentrates and specializes in
developing and producing high power LED lighting. Our major
products include LED Floodlight, LED Streetlight,LED Hight Bay
light and LED Billboard Light etc. Meantime,We also can supply
professional lighting solution and OEM service based on customs’
requirement.
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when
choosing LED light source. The higher, the better. Besides, brand
of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyond
always treat the clients benefit as the most important thing. So,
we use the top brand
material to produce high quality product.
3. How to place an order?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty
policy, please contact our sales representatives.
Contact Details:
If any interested, feel free to contact me or filled below, thanks
for your time.
Contact Preson: James Zhang Email:sales9@leyond.com.cn
Skype:lysales9
