CE ROHS LVD certified IP66 aluminium dodular RGB LED Flood Light
120W 5050 chips
1. Outlook
2. Technical Parameter
Electrical Specifications
| Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
| LY-ST24120RGB | 3 | 120W | AC111~240V 50/60Hz | 0.57A/220VAC | >0.99/115VAC >0.95/230VAC | >90% |
Photometric Specifications
| Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
| RED | 620-630 nm | 5400 lm | 13-17V | 3900mA(MAX) |
| GREEN | 520-530 nm | 6600 lm | 21-25V | 3900mA(MAX) |
| BLUE | 460-465 nm | 1530 lm | 21-25V | 3900mA(MAX) |
| WHITE | R+G+B | 6000lm | 13-25V | 3900mA(MAX) |
Mechanical Specifications
| Model | Power | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
| LY-ST24120RGB | 120W | 320X316X76MM | 5.2kg | 4.5kg | IP66 | Aluminum +PC |
3. Features
- Control mode:RF/IR/DMX512. Standard DMX512 input interface and a
built-mode controller , can be realized in whole or segmented light
change control, especially, it can achieve water and complicated
effects.
- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
- There are 25°,,60°, 90° beam angle options for the Lens.
- Master or Slave function, if set master, it can stead of the
external controller.
- Reliable constant current driver designed to ensure high-power LED
lights for a stable job.
- Superior ability to adapt to the environment, protection grade
IP65, can adapt to a variety of indoor and outdoor temperature and
humidity environment. The lamp base is aluminum alloy, solid
,anti-aging, anti-variant, long service life.
- More than 16777 thousand kinds of colors can be realized output,
with good light efficiency, beautiful color and so on.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the
human body.
4. Pictures
5. Production connection diagram
6. Assembly and Installation

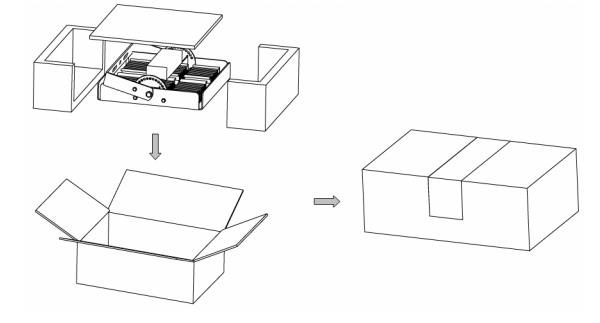

7. Packing
Carton Size: 385mm×376mm×155mm
Net weight:8.1KG Gross weight:7.3KG
8. Notes
a) Product should meet the "use environment " requirements.
b) When the DMX applications, each flood light need three addresses,
the address can be set
with button or our special devices.
c) If you asked a group of light has the same effect, the group light
should be set to the same address.
d) The largest light control points cannot be more than 510.
e) Connected to a group of light is only one master (operate in
master mode lights, controller or the console).
f) More than one connection light follow "Product connection diagram.
"
g) Controller or signal splitter to connect the rear end of a light
cannot be more than the maximum length of 30 meters.
h) To ensure the reliable transmission of DMX signal, if lamp
connection is over 100M ,should be added in the DMX signal transmission line signal amplifier to
amplify the signal.
i) The input and output port should meet the requirements, otherwise
it will cause light damage. Male input and female head for the output.
