Powerful Meanwell Driver RGB LED Flood Light For Cultural Plaza
Color Decoratio Warm White 3000K
1) Adoption LEYOND exclusive Lens with light transmittance up to
98%.
2)Perfect Light Distribution Solution Adoption of integrated shell
optic lens, enhance the brightness and illumination uniformity.
3) There are 24°, 36°,60°, 90°,160° beam angle options for the
Lens.
4) Control mode:RF/IR/DMX512. Standard DMX512 input interface and a
built-mode controller , can be realized in whole or segmented light change control,
especially, it can achieve water and complicated effects.
5) Master or Slave function, if set master, it can stead of the
external controller.
6) Reliable 350mA constant current driver designed to ensure
high-power LED lights for a stable job.
7)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and
Infrared (IR) Radiation: No filament and glass frames, avoid break
of the traditional lamp,without harm to the human body.
Electrical Specifications
Model | Modules Number | Power | Input Voltage | Input Current | Power Factor | Power Efficiency |
LY-ST23100RGB | 3 | 100W | AC90~305V 50/60Hz | 0.48A/220VAC | >0.99/115VAC >0.95/230VAC | >90% |
Photometric Specifications
Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
RED | 625 nm | 1350 lm | 18-22 V | 1150mA |
GREEN | 525 nm | 2400 lm | 30-32 V | 1150mA |
BLUE | 460 nm | 900 lm | 30-32 V | 1150mA |
WHITE | / | 7500lm | 18-32V | 3450MA |

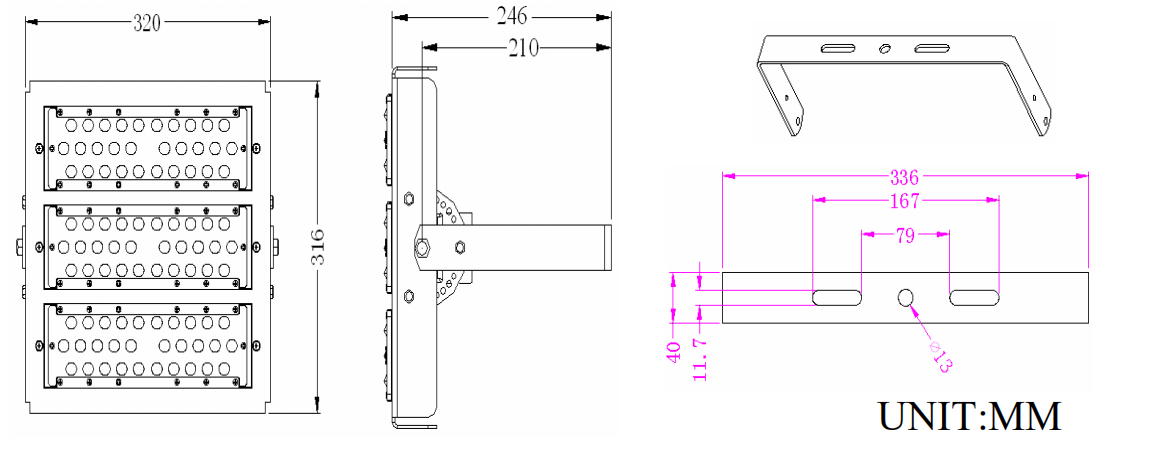

Mechanical Specifications
Model | Modules Number | Power | Carton Size | Gross Weight | Net Weight | IP Rating | Meterial |
LY-ST23100RGB | 3 | 100W | 385X376X155MM | 8.1kg | 7.3kg | IP66 | Aluminum +PC |
Details
For More Information, Pls Feel Free To Contact Us
FAQ
1. How to choose a good LED Source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when choosing LED light source. The higher, the
better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyond
always treat the clients benefit as the most important thing. So,
we use the top brand
material to produce high quality product.
3. How to place an order with our factory?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
4. How long will the warranty period last?
A: We usually offer 3-5 years free warranty. More detailed warranty
policy, please contact our sales representatives for the specific
answer.
